Official File parts/4304.dat
Part Attributes:
File Header:

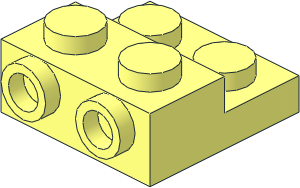

0 Plate 2 x 2 x 0.667 with Two Studs On Side and Two Raised with Partial Closed Understud
0 Name: 4304.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\99206s01.dat
1 16 0 8 16 16 0 0 0 4 0 0 0 -10 box2-5.dat
1 16 0 12 10 0 0 -6 0 1 0 6 0 0 5-16edge.dat
1 16 0 12 10 0 0 6 0 1 0 6 0 0 5-16edge.dat
2 24 4.4 12 6 5.5434 12 7.7038
2 24 -4.4 12 6 -5.5434 12 7.7038
2 24 -6.76 12 6 -6.76 4 6
2 24 6.76 12 6 6.76 4 6
1 16 0 4 10 0 0 6 0 1 0 -6 0 0 1-8edge.dat
1 16 0 4 10 0 0 -6 0 1 0 -6 0 0 1-8edge.dat
0 BFC INVERTNEXT
1 16 0 4 10 0 0 6 0 8 0 -6 0 0 1-8cyli.dat
0 BFC INVERTNEXT
1 16 0 4 10 0 0 -6 0 8 0 -6 0 0 1-8cyli.dat
4 16 4.2426 12 5.7574 4.2426 4 5.7574 4.4 4 6 4.4 12 6
2 24 4.4 4 6 4.4 12 6
2 24 4.2426 4 5.7574 4.4 4 6
5 24 4.2426 4 5.7574 4.2426 12 5.7574 2.2962 4 4.4566 5.5434 12 7.7038
4 16 -4.4 4 6 -4.2426 4 5.7574 -4.2426 12 5.7574 -4.4 12 6
2 24 -4.4 4 6 -4.4 12 6
2 24 -4.2426 4 5.7574 -4.4 4 6
5 24 -4.2426 4 5.7574 -4.2426 12 5.7574 -2.2962 4 4.4566 -5.5434 12 7.7038
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Max Martin Richter
Licensed under CC BY 4.0
