File Detail parts/s/4413s00.dat

Official File parts/s/4413s00.dat

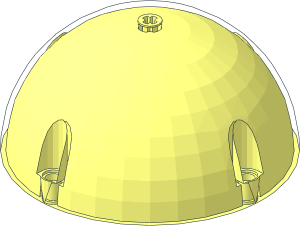

~Technic Dome 11 x 11 x 5.5 without Outer Surface

File Header:

0 ~Technic Dome 11 x 11 x  5.5 without Outer Surface
0 Name: s\4413s00.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07

Show contents
