Official File parts/s/5404s01.dat
File Header:

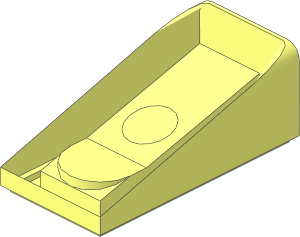

0 ~Slope Brick 18 2 x 1 x 0.667 without Top Surfaces
0 Name: s\5404s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
0 // Bottom
4 16 6 0 16 -6 0 16 -9 0 19 9 0 19
4 16 -6 0 -16 6 0 -16 9 0 -19 -9 0 -19
4 16 6 0 -16 6 0 16 9 0 19 9 0 -19
4 16 -6 0 16 -6 0 -16 -9 0 -19 -9 0 19
2 24 6 0 16 6 0 -16
2 24 -6 0 -16 -6 0 16
1 16 0 -1 0 0 0 -9 0 1 0 19 0 0 box4.dat
4 16 9 -1 19 -9 -1 19 -10 -1 20 10 -1 20
4 16 -9 -1 -19 9 -1 -19 10 -1 -20 -10 -1 -20
4 16 9 -1 -19 9 -1 19 10 -1 20 10 -1 -20
4 16 -9 -1 19 -9 -1 -19 -10 -1 -20 -10 -1 20
1 16 0 -1 0 10 0 0 0 1 0 0 0 20 recte4.dat
1 16 0 -1.68 -16 -6 0 0 0 0 -1.68 0 -1 0 rect.dat
1 16 0 -5 -10 6 0 0 0 -1 1.64 0 0 -6 2-4edge.dat
1 16 0 -5 -10 6 0 0 0 -1 1.64 0 0 -6 2-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -5 -10 0 0 -6 0 1.68 0 6 0 0 1-4cyls2.dat
0 BFC INVERTNEXT
1 16 0 -5 -10 0 0 6 0 1.68 0 6 0 0 1-4cyls2.dat
1 16 0 -5 -10 6 0 0 0 -1 0 0 0 -6 2-4chrd.dat
1 16 0 -5 -10 6 0 0 0 -1 0 0 0 -6 2-4edge.dat
2 24 -6 -3.36 -16 -6 -5 -10
2 24 6 -3.36 -16 6 -5 -10
1 16 0 -8.10205 4.6422 6 0 0 0 -1 3.10205 0 0 -11.3578 rect3.dat
1 16 0 -5 -8.3578 0 0 -6 0 -1 0 -1.6422 0 0 rect2p.dat
1 16 0 -5.60205 16 0 0 6 5.60205 0 0 0 1 0 rect.dat
4 16 -6 -5 -10 -6 -3.36 -16 -6 0 -16 -6 -5 -6.7156
4 16 -6 -11.2041 16 -6 -5 -6.7156 -6 0 -16 -6 0 16
4 16 6 0 -16 6 -3.36 -16 6 -5 -10 6 -5 -6.7156
4 16 6 0 16 6 0 -16 6 -5 -6.7156 6 -11.2041 16
1 16 0 -5.7416 0 1 0 0 0 -1.4354 0 0 0 1 stud3a.dat
1 16 0 -5.7416 0 0 0 4 0 -1.0925 0 -4 0 0 4-4cyls.dat
1 16 0 -6.8342 0 0 0 4 1.0925 1 0 -4 0 0 4-4edge.dat
0 // Outside
1 16 0 -2.5 -20 10 0 0 0 0 -1.5 0 1 0 rect3.dat
4 16 10 -13.3 11 10 -4 -20 10 -1 -20 10 -1 20
3 16 10 -1 20 10 -13.3 19.34 10 -13.3 11
3 16 10 -13.3 19.34 10 -1 20 10 -13.3 20
2 24 10 -13.3 11 10 -4 -20
1 16 7.5 -13.3 19.34 0 0 2.5 -2.5 0 0 0 -8.34 0 1-4cyls.dat
1 16 7.5 -13.3 20 0 0 2.5 -2.5 0 0 0 -.66 0 1-4cyli.dat
1 16 7.5 -13.3 20 0 0 2.5 -2.5 0 0 0 -1 0 1-4edge.dat
1 16 7.5 -13.3 20 0 0 2.5 -2.5 0 0 0 -1 0 1-4chrd.dat
1 16 7.5 -13.3 11 0 0 2.5 -2.5 0 0 8.34 1 0 1-4edge.dat
1 16 7.5 -13.3 11 0 0 2.5 -2.5 0 0 8.34 1 0 1-4chrd.dat
4 16 -10 -1 -20 -10 -4 -20 -10 -13.3 11 -10 -1 20
3 16 -10 -13.3 19.34 -10 -1 20 -10 -13.3 11
3 16 -10 -1 20 -10 -13.3 19.34 -10 -13.3 20
2 24 -10 -4 -20 -10 -13.3 11
1 16 -7.5 -13.3 19.34 0 0 -2.5 -2.5 0 0 0 -8.34 0 1-4cyls.dat
1 16 -7.5 -13.3 20 0 0 -2.5 -2.5 0 0 0 -.66 0 1-4cyli.dat
1 16 -7.5 -13.3 20 0 0 -2.5 -2.5 0 0 0 -1 0 1-4edge.dat
1 16 -7.5 -13.3 20 0 0 -2.5 -2.5 0 0 0 -1 0 1-4chrd.dat
1 16 -7.5 -13.3 11 0 0 -2.5 -2.5 0 0 8.34 1 0 1-4edge.dat
1 16 -7.5 -13.3 11 0 0 -2.5 -2.5 0 0 8.34 1 0 1-4chrd.dat
4 16 10 -13.3 20 -10 -13.3 20 -7.5 -15.8 20 7.5 -15.8 20
1 16 0 -7.15 20 0 0 -10 6.15 0 0 0 -1 0 rect2p.dat
1 16 0 -15.8 19.67 -7.5 0 0 0 1 0 0 0 -.33 rect2p.dat
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 -8.10205 4.6422 6 0 0 0 -1 3.10205 0 0 -11.3578 rect3.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 -5.60205 16 0 0 6 5.60205 0 0 0 1 0 rect.dat
