File Detail parts/4920.dat

Official File parts/4920.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

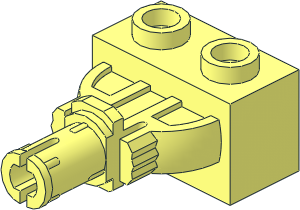

0 Brick 1 x 2 with Click Rotation Pin
0 Name: 4920.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Part UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-03-04 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-03-04 [MMR1988] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02

Show contents

1 16 -10 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 10 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 0 4 0 1 0 0 0 -5 0 0 0 1 stud3.dat
1 16 0 4 4 0 0 1.25 0 15 0 -1.25 0 0 boxjcyl4.dat
1 16 0 4 -4 0 0 1.25 0 15 0 1.25 0 0 boxjcyl4.dat
1 16 0 4 5 0 0 -1.25 0 15 0 -1 0 0 box3u5p.dat
1 16 0 4 -5 0 0 -1.25 0 15 0 1 0 0 box3u5p.dat
0 BFC INVERTNEXT
1 16 0 24 0 16 0 0 0 -20 0 0 0 6 box5.dat
4 16 20 24 10 16 24 6 -16 24 6 -20 24 10
4 16 -20 24 10 -16 24 6 -16 24 -6 -20 24 -10
4 16 -20 24 -10 -16 24 -6 16 24 -6 20 24 -10
4 16 20 24 -10 16 24 -6 16 24 6 20 24 10
1 16 0 24 0 20 0 0 0 -24 0 0 0 10 box5.dat

1 16 0 10 -32 0 0 6 6 0 0 0 1 0 4-4edge.dat

1 16 0 10 -30 0 0 1 1 0 0 0 1 0 connect10.dat
1 16 0 10 -32 0 0 1 -1 0 0 0 1 0 confricrib2.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4920s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4920s01.dat

0 BFC INVERTNEXT
1 16 0 5 -18.5 3.125 0 0 0 1.3 0 0 0 -8.5 box4-2p.dat

1 16 0 12.5 -18.875 0 0 6 2.5 0 0 0 3.625 0 box3u2p.dat

4 16 -6 10 -15.25 -14.4 10 -10 14.4 10 -10 6 10 -15.25

4 16 6 15 -15.25 2.75 15 -19.125 -2.75 15 -19.125 -6 15 -15.25

4 16 3.125 5 -27 -3.125 5 -27 -4.381 1.037 -27 4.381 1.037 -27
4 16 -3.122 0.5 -27 3.122 0.5 -27 4.381 1.037 -27 -4.381 1.037 -27

1 16 0 0.5 -28.5 3.122 0 0 0 1 0 0 0 1.5 rect.dat

3 16 -3.122 0.5 -30 -3.0616 2.6088 -30 0 2 -30
4 16 -3.122 0.5 -30 0 2 -30 3.0616 2.6088 -30 3.122 0.5 -30

3 16 0 18 -30 -3.0616 17.3912 -30 -4.703 18.825 -30
3 16 -4.703 18.825 -30 4.703 18.825 -30 0 18 -30
3 16 3.0616 17.3912 -30 0 18 -30 4.703 18.825 -30

1 16 0 18.825 -28.5 0 0 4.703 0 -1 0 1.5 0 0 rect.dat

4 16 4.703 18.825 -27 -4.703 18.825 -27 -2.75 15 -27 2.75 15 -27

0 BFC INVERTNEXT
1 16 0 15 -23.0625 2.75 0 0 0 -5 0 0 0 3.9375 box5-1.dat

1 16 0 12.5 -10 14.4 0 0 0 0 -2.5 0 1 0 recte3.dat
