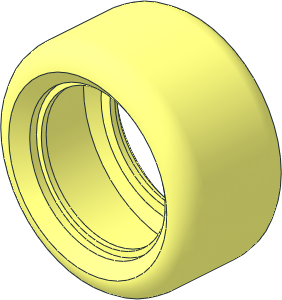

0 Tyre 44/ 30 x 56 Smooth Racing
0 Name: 4410.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Printed version is heavier, partnumber 5746
0 BFC CERTIFY CCW
0 !KEYWORDS 81.6x44 mm, Slicks
0 !HISTORY 2024-03-07 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-03-12 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
0 !HISTORY 2025-04-26 [MagFors] Corrected description
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
0 // Nomenclature: width_(mm)/ profile_as_%age_of_width x rim_diameter_(mm) [optional qualifier]
1 16 0 0 33 9.28571 0 0 0 0 9.28571 0 1 0 48\4-4ring7.dat
0 BFC INVERTNEXT
1 16 0 0 38 70 0 0 0 0 70 0 7 0 48\4-4cylo.dat
1 16 0 0 38 5 0 0 0 0 5 0 -1 0 48\4-4rin13.dat
0 BFC INVERTNEXT
1 16 0 0 33 65 0 0 0 0 65 0 5 0 48\4-4cylo.dat
1 16 0 0 33 74.28571 0 0 0 0 74.28571 0 10 0 48\4-4cylo.dat
1 16 0 0 50 9.28571 0 0 0 0 9.28571 0 -7 0 48\4-4con8.dat
1 16 0 0 50 83.57143 0 0 0 0 83.57143 0 -1 0 48\4-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 36 11.93878 0 0 0 0 11.93878 0 14 0 48\4-4con7.dat
0 BFC INVERTNEXT
1 16 0 0 55 11.66667 0 0 0 0 11.66667 0 -10 0 48\4-4con6.dat
1 16 0 0 55 81.66667 0 0 0 0 81.66667 0 -1 0 48\4-4edge.dat
1 16 0 0 -50 9.28571 0 0 0 0 9.28571 0 7 0 48\4-4con8.dat
1 16 0 0 -50 83.57143 0 0 0 0 83.57143 0 -1 0 48\4-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 -36 11.93878 0 0 0 0 11.93878 0 -14 0 48\4-4con7.dat
0 BFC INVERTNEXT
1 16 0 0 -55 11.66667 0 0 0 0 11.66667 0 10 0 48\4-4con6.dat
1 16 0 0 -55 81.66667 0 0 0 0 81.66667 0 1 0 48\4-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 36 95.5102 0 0 0 0 95.5102 0 -72 0 48\4-4cylo.dat
1 16 0 0 34 102.08333 0 0 0 0 102.08333 0 -68 0 48\4-4cyli.dat
1 16 0 0 -34 81.66667 0 0 0 0 -81.66667 0 -84 0 48\tm04o2500.dat
1 16 0 0 -34 0 0 81.66667 81.66667 0 0 0 -84 0 48\tm04o2500.dat
1 16 0 0 -34 -81.66667 0 0 0 0 81.66667 0 -84 0 48\tm04o2500.dat
1 16 0 0 -34 0 0 -81.66667 -81.66667 0 0 0 -84 0 48\tm04o2500.dat
1 16 0 0 34 81.66667 0 0 0 0 -81.66667 0 84 0 48\tm04o2500.dat
1 16 0 0 34 0 0 81.66667 81.66667 0 0 0 84 0 48\tm04o2500.dat
1 16 0 0 34 -81.66667 0 0 0 0 81.66667 0 84 0 48\tm04o2500.dat
1 16 0 0 34 0 0 -81.66667 -81.66667 0 0 0 84 0 48\tm04o2500.dat
1 16 0 0 -33 9.28571 0 0 0 0 9.28571 0 -1 0 48\4-4ring7.dat
0 BFC INVERTNEXT
1 16 0 0 -38 70 0 0 0 0 70 0 -7 0 48\4-4cylo.dat
1 16 0 0 -38 5 0 0 0 0 5 0 1 0 48\4-4rin13.dat
0 BFC INVERTNEXT
1 16 0 0 -33 65 0 0 0 0 65 0 -5 0 48\4-4cylo.dat
1 16 0 0 -33 74.28571 0 0 0 0 74.28571 0 -10 0 48\4-4cylo.dat
keywords:
81.6 x 44
to
81.6 x 44, Slick
Yet another kw.
description:
Tyre 44 x 32 / 56 Smooth Racing
to
Tyre 44 / 32 x 56 Smooth Racing
Corrected description
That would mean the tyre needs to have an offest of 3 LDU
1 13 0 0 3 1 0 0 0 1 0 0 0 1 15038.dat
Origin of the tyre is correct
Or should the tyre be moved so that the fit , that seems the consensu when lookeing at assemblies
However the origin of 15038 seems weired to me as the connholes are "not on the grid" so to say. It is an old part, but anybody remembers, was there a reason for that offset?
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
Magnus Forsberg,
