File Detail parts/s/6221657ps01.dat

Unofficial File parts/s/6221657ps01.dat

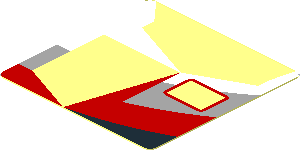

~Sticker 1.8 x 1.8 with Black, Red and Grey Stripes and White 2 in Red Square on White Background Right - Common Part

File Header:

0 ~Sticker  1.8 x  1.8 with Black, Red and Grey Stripes and White 2 in Red Square on White Background Right - Common Part
0 Name: s\6221657ps01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Stickerback
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback018x018.dat
0 // Primitives
1 15 -16.5 -.25 16.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 15 16.5 -.25 16.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 4 -16.5 -.25 -16.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 0 16.5 -.25 -16.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 71 14.16 -.25 3.07 1 0 0 0 1 0 0 0 1 1-4ndis.dat
1 4 14.16 -.25 3.07 1 0 0 0 1 0 0 0 1 1-4chrd.dat
1 15 6.64 -.25 3.07 -1 0 0 0 1 0 0 0 1 1-4ndis.dat
1 4 6.64 -.25 3.07 -1 0 0 0 1 0 0 0 1 1-4chrd.dat
1 4 6.64 -.25 -2.07 -1 0 0 0 1 0 0 0 -1 1-4chrd.dat
1 71 6.64 -.25 -2.07 -1 0 0 0 1 0 0 0 -1 1-4ndis.dat
1 4 14.16 -.25 -2.07 1 0 0 0 1 0 0 0 -1 1-4chrd.dat
1 71 14.16 -.25 -2.07 1 0 0 0 1 0 0 0 -1 1-4ndis.dat
0 // Top faces
0 // Black faces
3 0 18 -.25 -16.5 18 -.25 -11.5 14.7295 -.25 -12.9967
3 0 18 -.25 -16.5 14.7295 -.25 -12.9967 11.3891 -.25 -14.3298
3 0 18 -.25 -16.5 11.3891 -.25 -14.3298 7.9874 -.25 -15.4979
3 0 18 -.25 -16.5 7.9874 -.25 -15.4979 4.533 -.25 -16.4996
3 0 18 -.25 -16.5 4.533 -.25 -16.4996 1.0344 -.25 -17.3339
4 0 18 -.25 -16.5 1.0344 -.25 -17.3339 -2.5 -.25 -18 16.5 -.25 -18
0 // Grey faces
3 71 18 -.25 8 15.16 -.25 4.07 15.16 -.25 3.07
4 71 18 -.25 8 15.16 -.25 3.07 15.16 -.25 -2.07 18 -.25 -2.3
3 71 14.16 -.25 4.07 14.183 -.25 5.3163 12.2104 -.25 4.07
3 71 14.16 -.25 4.07 16.1128 -.25 6.6278 14.183 -.25 5.3163
4 71 14.16 -.25 4.07 15.16 -.25 4.07 18 -.25 8 16.1128 -.25 6.6278
4 71 6.64 -.25 -3.07 5.64 -.25 -3.07 3.2 -.25 -9.8 5.7888 -.25 -8.8095
4 71 6.64 -.25 -3.07 5.7888 -.25 -8.8095 8.3311 -.25 -7.7053 10.8247 -.25 -6.4949
4 71 6.64 -.25 -3.07 10.8247 -.25 -6.4949 13.2678 -.25 -5.1858 14.16 -.25 -3.07
4 71 15.16 -.25 -3.07 15.6597 -.25 -3.7852 18 -.25 -2.3 15.16 -.25 -2.07
4 71 15.16 -.25 -3.07 14.16 -.25 -3.07 13.2678 -.25 -5.1858 15.6597 -.25 -3.7852
4 71 3.2 -.25 -9.8 5.64 -.25 -2.07 5.64 -.25 .5876 3.2 -.25 -.45
3 71 3.2 -.25 -9.8 5.64 -.25 -3.07 5.64 -.25 -2.07
4 71 -14.8 -.25 -13 -14.8 -.25 -4 -18 -.25 -4 -18 -.25 -13
0 // Red border
3 4 6.64 -.25 4.07 5.64 -.25 3.07 6.34 -.25 3.37
3 4 6.64 -.25 4.07 6.34 -.25 3.37 6.69 -.25 3.37
4 4 6.64 -.25 4.07 6.69 -.25 3.37 14.11 -.25 3.37 12.2104 -.25 4.07
4 4 14.16 -.25 4.07 12.2104 -.25 4.07 14.11 -.25 3.37 14.46 -.25 3.37
3 4 14.16 -.25 4.07 14.46 -.25 3.37 15.16 -.25 3.07
3 4 5.64 -.25 3.07 6.34 -.25 3.02 6.34 -.25 3.37
4 4 5.64 -.25 3.07 5.64 -.25 .5876 6.34 -.25 -2.02 6.34 -.25 3.02
4 4 5.64 -.25 -2.07 6.34 -.25 -2.37 6.34 -.25 -2.02 5.64 -.25 .5876
3 4 5.64 -.25 -2.07 6.64 -.25 -3.07 6.34 -.25 -2.37
3 4 15.16 -.25 3.07 14.46 -.25 3.37 14.46 -.25 3.02
4 4 15.16 -.25 3.07 14.46 -.25 3.02 14.46 -.25 -2.02 15.16 -.25 -2.07
3 4 15.16 -.25 -2.07 14.46 -.25 -2.02 14.46 -.25 -2.37
3 4 15.16 -.25 -2.07 14.46 -.25 -2.37 14.16 -.25 -3.07
3 4 6.64 -.25 -3.07 6.69 -.25 -2.37 6.34 -.25 -2.37
4 4 6.64 -.25 -3.07 14.16 -.25 -3.07 14.11 -.25 -2.37 6.69 -.25 -2.37
3 4 14.16 -.25 -3.07 14.46 -.25 -2.37 14.11 -.25 -2.37
0 // Red square and stripe
4 4 15.6597 -.25 -3.7852 14.7295 -.25 -12.9967 18 -.25 -11.5 18 -.25 -2.3
4 4 15.6597 -.25 -3.7852 13.2678 -.25 -5.1858 11.3891 -.25 -14.3298 14.7295 -.25 -12.9967
4 4 10.8247 -.25 -6.4949 7.9874 -.25 -15.4979 11.3891 -.25 -14.3298 13.2678 -.25 -5.1858
4 4 10.8247 -.25 -6.4949 8.3311 -.25 -7.7053 4.533 -.25 -16.4996 7.9874 -.25 -15.4979
4 4 5.7888 -.25 -8.8095 1.0344 -.25 -17.3339 4.533 -.25 -16.4996 8.3311 -.25 -7.7053
4 4 5.7888 -.25 -8.8095 3.2 -.25 -9.8 -2.5 -.25 -18 1.0344 -.25 -17.3339
3 4 -2.5 -.25 -18 3.2 -.25 -9.8 3.2 -.25 -.45
3 4 -2.5 -.25 -18 3.2 -.25 -.45 3.2 -.25 4
4 4 -2.5 -.25 -18 -14.8 -.25 -13 -18 -.25 -13 -18 -.25 -16.5
3 4 -2.5 -.25 -18 -18 -.25 -16.5 -16.5 -.25 -18
0 // White faces
4 15 -18 -.25 16.5 -11.946 -.25 11.5 -11.946 -.25 12.95 -16.5 -.25 18
4 15 -18 -.25 16.5 -14.8 -.25 4 -11.946 -.25 10.05 -11.946 -.25 11.5
4 15 -18 -.25 16.5 -18 -.25 -4 -14.8 -.25 -4 -14.8 -.25 4
4 15 18 -.25 16.5 16.5 -.25 18 15.546 -.25 12.95 15.546 -.25 11.5
4 15 18 -.25 16.5 15.546 -.25 11.5 15.546 -.25 10.05 18 -.25 8
4 15 15.546 -.25 10.05 14.183 -.25 5.3163 16.1128 -.25 6.6278 18 -.25 8
4 15 15.546 -.25 10.05 6.64 -.25 4.07 12.2104 -.25 4.07 14.183 -.25 5.3163
3 15 15.546 -.25 10.05 5.64 -.25 4.07 6.64 -.25 4.07
3 15 15.546 -.25 10.05 3.2 -.25 4 5.64 -.25 4.07
3 15 3.2 -.25 4 -11.946 -.25 10.05 -14.8 -.25 4
3 15 3.2 -.25 4 5.64 -.25 3.07 5.64 -.25 4.07
4 15 3.2 -.25 4 3.2 -.25 -.45 5.64 -.25 .5876 5.64 -.25 3.07

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2024-03-18 21:51:44

Massimo Maso [Sirio]

submitted a new version of the part.

2025-07-29 20:18:04
