Official File parts/5259.dat
Part Attributes:
File Header:

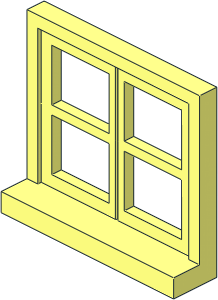

0 Window 1 x 4 x 3 Square Top with 4 Panes and Sill
0 Name: 5259.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-18 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-03-19 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
1 16 0 -5 0 1 0 0 0 -1.25 0 0 0 1 stug3-1x3.dat
4 16 -40 0 10 -40 0 -10 -40 -8 -10 -40 -8 2
4 16 -40 0 10 -40 -8 2 -40 -72 2 -40 -72 10
3 16 -40 -8 2 -40 -8 -10 -35 -8 2
3 16 -.6 -8 3.6 -35 -8 2 -40 -8 -10
3 16 -35 -8 3.6 -35 -8 2 -.6 -8 3.6
4 16 -40 -8 -10 40 -8 -10 .6 -8 3.6 -.6 -8 3.6
3 16 40 -8 -10 35 -8 2 .6 -8 3.6
3 16 40 -8 -10 40 -8 2 35 -8 2
3 16 35 -8 2 35 -8 3.6 .6 -8 3.6
3 16 -.6 -8 3.6 .6 -8 3.6 0 -8 4.2
4 16 -40 -72 10 -35 -67 10 -35 -8 10 -40 0 10
4 16 40 0 10 -40 0 10 -35 -8 10 35 -8 10
4 16 40 -72 10 40 0 10 35 -8 10 35 -67 10
4 16 40 -72 10 35 -67 10 -35 -67 10 -40 -72 10
3 16 -35 -67 2 -35 -38 3.6 -35 -67 3.6
4 16 -35 -8 2 -35 -8 3.6 -35 -38 3.6 -35 -67 2
4 16 0 -67 4.2 -.6 -38 3.6 -.6 -8 3.6 0 -8 4.2
3 16 0 -67 4.2 -.6 -67 3.6 -.6 -38 3.6
4 16 -35 -8 2 -35 -67 2 -40 -72 2 -40 -8 2
4 16 40 -72 2 -40 -72 2 -35 -67 2 35 -67 2
4 16 40 -72 2 35 -67 2 35 -8 2 40 -8 2
1 16 0 -4 -10 0 0 -40 -4 0 0 0 1 0 rect.dat
1 16 0 -72 6 0 0 -40 0 1 0 4 0 0 rect.dat
4 16 -35 -67 3.6 -35 -38 3.6 -30.1 -39.3 3.6 -30.1 -61.9 3.6
4 16 -3.5 -61.9 3.6 -.6 -67 3.6 -35 -67 3.6 -30.1 -61.9 3.6
4 16 -3.5 -39.3 3.6 -.6 -38 3.6 -.6 -67 3.6 -3.5 -61.9 3.6
4 16 -3.5 -39.3 3.6 -30.1 -39.3 3.6 -35 -38 3.6 -.6 -38 3.6
4 16 -3.5 -35.5 3.6 -.6 -38 3.6 -35 -38 3.6 -30.1 -35.5 3.6
4 16 -3.5 -35.5 3.6 -3.5 -12.9 3.6 -.6 -8 3.6 -.6 -38 3.6
4 16 -35 -8 3.6 -.6 -8 3.6 -3.5 -12.9 3.6 -30.1 -12.9 3.6
4 16 -35 -8 3.6 -30.1 -12.9 3.6 -30.1 -35.5 3.6 -35 -38 3.6
4 16 -33.4 -67 6 -35 -67 6 -35 -67 10 -33.4 -67 8
4 16 33.4 -67 6 33.4 -67 8 35 -67 10 35 -67 6
1 16 -35 -37.5 8 0 -1 0 0 0 -29.5 2 0 0 rect.dat
3 16 -35 -8 10 -33.4 -8 8 -.6 -8 8
4 16 -33.4 -8 6 -33.4 -8 8 -35 -8 10 -35 -8 6
4 16 35 -8 10 -35 -8 10 -.6 -8 8 .6 -8 8
3 16 .6 -8 8 -.6 -8 8 0 -8 7.4
3 16 .6 -8 8 33.4 -8 8 35 -8 10
4 16 33.4 -8 6 35 -8 6 35 -8 10 33.4 -8 8
3 16 -.6 -67 8 0 -67 7.4 -.6 -38 8
4 16 0 -8 7.4 -.6 -8 8 -.6 -38 8 0 -67 7.4
4 16 -.6 -67 8 -.6 -38 8 -3.5 -39.3 8 -3.5 -61.9 8
4 16 -33.4 -38 8 -30.1 -39.3 8 -3.5 -39.3 8 -.6 -38 8
4 16 -33.4 -38 8 -.6 -38 8 -3.5 -35.5 8 -30.1 -35.5 8
4 16 -.6 -8 8 -3.5 -12.9 8 -3.5 -35.5 8 -.6 -38 8
4 16 -33.4 -67 8 -.6 -67 8 -3.5 -61.9 8 -30.1 -61.9 8
4 16 -30.1 -39.3 8 -33.4 -38 8 -33.4 -67 8 -30.1 -61.9 8
4 16 -33.4 -8 8 -33.4 -38 8 -30.1 -35.5 8 -30.1 -12.9 8
4 16 -3.5 -12.9 8 -.6 -8 8 -33.4 -8 8 -30.1 -12.9 8
1 16 -34.2 -37.5 6 0 0 .8 -29.5 0 0 0 -1 0 rect3.dat
4 16 -33.4 -8 6 -33.4 -67 6 -33.4 -67 8 -33.4 -38 8
3 16 -33.4 -8 8 -33.4 -8 6 -33.4 -38 8
4 16 40 0 10 40 -8 2 40 -8 -10 40 0 -10
4 16 40 0 10 40 -72 10 40 -72 2 40 -8 2
3 16 35 -67 2 35 -67 3.6 35 -38 3.6
4 16 35 -8 2 35 -67 2 35 -38 3.6 35 -8 3.6
4 16 0 -67 4.2 0 -8 4.2 .6 -8 3.6 .6 -38 3.6
3 16 .6 -38 3.6 .6 -67 3.6 0 -67 4.2
4 16 30.1 -39.3 3.6 35 -38 3.6 35 -67 3.6 30.1 -61.9 3.6
4 16 35 -67 3.6 .6 -67 3.6 3.5 -61.9 3.6 30.1 -61.9 3.6
4 16 3.5 -39.3 3.6 3.5 -61.9 3.6 .6 -67 3.6 .6 -38 3.6
4 16 35 -38 3.6 30.1 -39.3 3.6 3.5 -39.3 3.6 .6 -38 3.6
4 16 3.5 -35.5 3.6 30.1 -35.5 3.6 35 -38 3.6 .6 -38 3.6
4 16 .6 -8 3.6 3.5 -12.9 3.6 3.5 -35.5 3.6 .6 -38 3.6
4 16 35 -8 3.6 30.1 -12.9 3.6 3.5 -12.9 3.6 .6 -8 3.6
4 16 30.1 -35.5 3.6 30.1 -12.9 3.6 35 -8 3.6 35 -38 3.6
1 16 35 -37.5 8 0 1 0 -29.5 0 0 0 0 2 rect.dat
3 16 0 -67 7.4 .6 -67 8 .6 -38 8
4 16 .6 -38 8 .6 -8 8 0 -8 7.4 0 -67 7.4
4 16 3.5 -39.3 8 .6 -38 8 .6 -67 8 3.5 -61.9 8
4 16 3.5 -39.3 8 30.1 -39.3 8 33.4 -38 8 .6 -38 8
4 16 3.5 -35.5 8 .6 -38 8 33.4 -38 8 30.1 -35.5 8
4 16 3.5 -35.5 8 3.5 -12.9 8 .6 -8 8 .6 -38 8
4 16 33.4 -67 8 33.4 -38 8 30.1 -39.3 8 30.1 -61.9 8
4 16 3.5 -61.9 8 .6 -67 8 33.4 -67 8 30.1 -61.9 8
4 16 33.4 -8 8 .6 -8 8 3.5 -12.9 8 30.1 -12.9 8
4 16 33.4 -8 8 30.1 -12.9 8 30.1 -35.5 8 33.4 -38 8
1 16 34.2 -37.5 6 0 0 -.8 29.5 0 0 0 -1 0 rect3.dat
4 16 33.4 -67 8 33.4 -67 6 33.4 -8 6 33.4 -38 8
3 16 33.4 -8 6 33.4 -8 8 33.4 -38 8
4 16 -40 0 10 -36 0 6 -36 0 -6 -40 0 -10
4 16 -36 0 6 -40 0 10 40 0 10 36 0 6
4 16 40 0 -10 36 0 -6 36 0 6 40 0 10
4 16 40 0 -10 -40 0 -10 -36 0 -6 36 0 -6
2 24 -40 -8 -10 -40 -8 2
2 24 -40 0 10 -40 0 -10
2 24 -40 -72 10 -40 0 10
2 24 -40 -8 2 -40 -72 2
2 24 -35 -8 2 -40 -8 2
2 24 -35 -8 3.6 -35 -8 2
2 24 -.6 -8 3.6 -35 -8 3.6
2 24 40 -8 -10 40 -8 2
2 24 40 -8 2 35 -8 2
2 24 35 -8 2 35 -8 3.6
2 24 35 -8 3.6 .6 -8 3.6
2 24 .6 -8 3.6 0 -8 4.2
2 24 0 -8 4.2 -.6 -8 3.6
2 24 -35 -8 10 35 -8 10
2 24 40 0 10 -40 0 10
2 24 35 -67 10 -35 -67 10
2 24 40 -72 10 40 0 10
2 24 -35 -38 3.6 -35 -67 3.6
2 24 -35 -8 3.6 -35 -38 3.6
2 24 -35 -67 2 -35 -8 2
2 24 -.6 -38 3.6 -.6 -8 3.6
2 24 0 -8 4.2 0 -67 4.2
2 24 -.6 -67 3.6 -.6 -38 3.6
2 24 0 -67 4.2 -.6 -67 3.6
2 24 40 -8 2 40 -72 2
2 24 35 -67 2 35 -8 2
2 24 -35 -67 3.6 -.6 -67 3.6
2 24 0 -67 4.2 .6 -67 3.6
2 24 .6 -67 3.6 35 -67 3.6
2 24 -.6 -67 8 -33.4 -67 8
2 24 -33.4 -67 8 -33.4 -67 6
2 24 33.4 -67 8 .6 -67 8
2 24 33.4 -67 6 33.4 -67 8
2 24 .6 -67 8 0 -67 7.4
2 24 0 -67 7.4 -.6 -67 8
2 24 -33.4 -8 8 -.6 -8 8
2 24 -33.4 -8 6 -33.4 -8 8
2 24 -.6 -8 8 0 -8 7.4
2 24 0 -8 7.4 .6 -8 8
2 24 .6 -8 8 33.4 -8 8
2 24 33.4 -8 8 33.4 -8 6
2 24 -.6 -38 8 -.6 -67 8
2 24 -.6 -8 8 -.6 -38 8
2 24 0 -67 7.4 0 -8 7.4
2 24 -33.4 -38 8 -33.4 -67 8
2 24 -33.4 -8 8 -33.4 -38 8
2 24 40 0 -10 40 0 10
2 24 35 -67 3.6 35 -38 3.6
2 24 35 -38 3.6 35 -8 3.6
2 24 .6 -8 3.6 .6 -38 3.6
2 24 .6 -38 3.6 .6 -67 3.6
2 24 .6 -67 8 .6 -38 8
2 24 .6 -38 8 .6 -8 8
2 24 33.4 -67 8 33.4 -38 8
2 24 33.4 -38 8 33.4 -8 8
0 BFC INVERTNEXT
1 16 0 0 0 36 0 0 0 -5 0 0 0 6 box5.dat
0 BFC INVERTNEXT
1 16 -16.8 -24.2 8 13.3 0 0 0 0 11.3 0 -4.4 0 box4.dat
0 BFC INVERTNEXT
1 16 -16.8 -50.6 8 13.3 0 0 0 0 11.3 0 -4.4 0 box4.dat
0 BFC INVERTNEXT
1 16 16.8 -24.2 8 -13.3 0 0 0 0 11.3 0 -4.4 0 box4.dat
0 BFC INVERTNEXT
1 16 16.8 -50.6 8 -13.3 0 0 0 0 11.3 0 -4.4 0 box4.dat
4 16 -35 -67 10 35 -67 10 33.4 -67 8 -33.4 -67 8
3 16 0 -67 7.4 -33.4 -67 8 33.4 -67 8
1 16 0 -67 2.8 35 0 0 0 -1 0 0 0 -.8 rect3.dat
3 16 -35 -67 3.6 0 -67 4.2 35 -67 3.6
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-03-19 12:36:23
Improved description
2024-06-02 11:52:07
2024-06-02 14:20:58
2024-06-28 03:17:31
2024-06-30 00:14:09
Release 2024-05
