Official File parts/451b.dat
Part Attributes:
File Header:

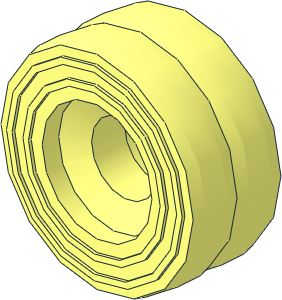

0 Tyre 3/100 x 8 Double Smooth
0 Name: 451b.dat
0 Author: Niels Karsdorp [nielsk]
0 !LDRAW_ORG Part UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2024-03-25 [Steffen] corrected orientation by 90 degrees by creating ...b replacement file
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
