Official File parts/3139b.dat
Part Attributes:
File Header:

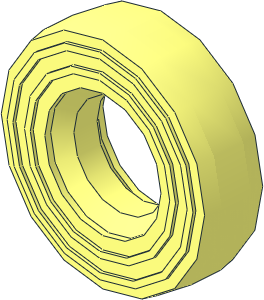

0 Tyre 4/ 80 x 8 Single Smooth Type 1
0 Name: 3139b.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 3139, Rebrickable 3139
0 !HISTORY 2003-06-08 [jriley] BFC compliancy, ring subsitutions
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2004-06-06 [nielsk] added details
0 !HISTORY 2005-12-28 [PTadmin] Official Update 2005-01
0 !HISTORY 2007-07-18 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [PTadmin] Renamed from 7
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2010-12-19 [cwdee] Description change to standardise nomenclature
0 !HISTORY 2011-06-02 [MagFors] Description change
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2020-02-29 [MagFors] Corrected inner dimension, should fit both rim 20 and 4624
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2024-03-25 [Steffen] corrected orientation by 90 degrees by creating ...b replacement file
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
Show contents
0 // Nomenclature: width_(mm)/profile_as_%age_of_width x rim_diameter_(mm)
1 16 0 0 -5 0 0 17.5 17.5 0 0 0 -1 0 4-4edge.dat
1 16 0 0 5 0 0 17.5 17.5 0 0 0 -1 0 4-4edge.dat
1 16 0 0 -2.5 0 0 0.5 0.5 0 0 0 -2.5 0 4-4con35.dat
1 16 0 0 -2.5 0 0 18 18 0 0 0 5 0 4-4cyli.dat
1 16 0 0 2.5 0 0 0.5 0.5 0 0 0 2.5 0 4-4con35.dat
5 24 0 18 -2.5 6.889 16.63 -2.5 0 17.5 -5 0 18 2.5
5 24 6.889 16.63 -2.5 12.728 12.728 -2.5 6.697 16.168 -5 6.889 16.63 2.5
5 24 12.728 12.728 -2.5 16.63 6.889 -2.5 12.374 12.374 -5 12.728 12.728 2.5
5 24 16.63 6.889 -2.5 18 0 -2.5 16.168 6.697 -5 16.63 6.889 2.5
5 24 18 0 -2.5 16.63 -6.889 -2.5 17.5 0 -5 18 0 2.5
5 24 16.63 -6.889 -2.5 12.728 -12.728 -2.5 16.168 -6.697 -5 16.63 -6.889 2.5
5 24 12.728 -12.728 -2.5 6.889 -16.63 -2.5 12.374 -12.374 -5 12.728 -12.728 2.5
5 24 6.889 -16.63 -2.5 0 -18 -2.5 6.697 -16.168 -5 6.889 -16.63 2.5
5 24 0 -18 -2.5 -6.889 -16.63 -2.5 0 -17.5 -5 0 -18 2.5
5 24 -6.889 -16.63 -2.5 -12.728 -12.728 -2.5 -6.697 -16.168 -5 -6.889 -16.63 2.5
5 24 -12.728 -12.728 -2.5 -16.63 -6.889 -2.5 -12.374 -12.374 -5 -12.728 -12.728 2.5
5 24 -16.63 -6.889 -2.5 -18 0 -2.5 -16.168 -6.697 -5 -16.63 -6.889 2.5
5 24 -18 0 -2.5 -16.63 6.889 -2.5 -17.5 0 -5 -18 0 2.5
5 24 -16.63 6.889 -2.5 -12.728 12.728 -2.5 -16.168 6.697 -5 -16.63 6.889 2.5
5 24 -12.728 12.728 -2.5 -6.889 16.63 -2.5 -12.374 12.374 -5 -12.728 12.728 2.5
5 24 -6.889 16.63 -2.5 0 18 -2.5 -6.697 16.168 -5 -6.889 16.63 2.5
5 24 0 18 2.5 6.889 16.63 2.5 0 17.5 5 0 18 -2.5
5 24 6.889 16.63 2.5 12.728 12.728 2.5 6.697 16.168 5 6.889 16.63 -2.5
5 24 12.728 12.728 2.5 16.63 6.889 2.5 12.374 12.374 5 12.728 12.728 -2.5
5 24 16.63 6.889 2.5 18 0 2.5 16.168 6.697 5 16.63 6.889 -2.5
5 24 18 0 2.5 16.63 -6.889 2.5 17.5 0 5 18 0 -2.5
5 24 16.63 -6.889 2.5 12.728 -12.728 2.5 16.168 -6.697 5 16.63 -6.889 -2.5
5 24 12.728 -12.728 2.5 6.889 -16.63 2.5 12.374 -12.374 5 12.728 -12.728 -2.5
5 24 6.889 -16.63 2.5 0 -18 2.5 6.697 -16.168 5 6.889 -16.63 -2.5
5 24 0 -18 2.5 -6.889 -16.63 2.5 0 -17.5 5 0 -18 -2.5
5 24 -6.889 -16.63 2.5 -12.728 -12.728 2.5 -6.697 -16.168 5 -6.889 -16.63 -2.5
5 24 -12.728 -12.728 2.5 -16.63 -6.889 2.5 -12.374 -12.374 5 -12.728 -12.728 -2.5
5 24 -16.63 -6.889 2.5 -18 0 2.5 -16.168 -6.697 5 -16.63 -6.889 -2.5
5 24 -18 0 2.5 -16.63 6.889 2.5 -17.5 0 5 -18 0 -2.5
5 24 -16.63 6.889 2.5 -12.728 12.728 2.5 -16.168 6.697 5 -16.63 6.889 -2.5
5 24 -12.728 12.728 2.5 -6.889 16.63 2.5 -12.374 12.374 5 -12.728 12.728 -2.5
5 24 -6.889 16.63 2.5 0 18 2.5 -6.697 16.168 5 -6.889 16.63 -2.5
0 // inside
0 BFC INVERTNEXT
1 16 0 0 -5 0 0 10 10 0 0 0 1 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 4 0 0 2 2 0 0 0 -2 0 4-4con4.dat
0 BFC INVERTNEXT
1 16 0 0 -2 0 0 8 8 0 0 0 4 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -4 0 0 2 2 0 0 0 2 0 4-4con4.dat
0 BFC INVERTNEXT
1 16 0 0 5 0 0 10 10 0 0 0 -1 0 4-4cylo.dat
0 // sides
1 16 0 0 -5 0 0 5 5 0 0 0 1 0 4-4ring2.dat
1 16 0 0 -5 0 0 2.5 2.5 0 0 0 1 0 4-4ring6.dat
1 16 0 0 5 0 0 -5 5 0 0 0 -1 0 4-4ring2.dat
1 16 0 0 5 0 0 -2.5 2.5 0 0 0 -1 0 4-4ring6.dat
0 BFC INVERTNEXT
1 16 0 0 -5 0 0 15 15 0 0 0 -0.5 0 4-4cylo.dat
1 16 0 0 -5 0 0 16 16 0 0 0 -0.5 0 4-4cylo.dat
1 16 0 0 -5.5 0 0 1 1 0 0 0 1 0 4-4ring15.dat
0 BFC INVERTNEXT
1 16 0 0 -5 0 0 12 12 0 0 0 -0.5 0 4-4cylo.dat
1 16 0 0 -5 0 0 13 13 0 0 0 -0.5 0 4-4cylo.dat
1 16 0 0 -5.5 0 0 1 1 0 0 0 1 0 4-4ring12.dat
0 BFC INVERTNEXT
1 16 0 0 5 0 0 15 15 0 0 0 0.5 0 4-4cylo.dat
1 16 0 0 5 0 0 16 16 0 0 0 0.5 0 4-4cylo.dat
1 16 0 0 5.5 0 0 1 1 0 0 0 -1 0 4-4ring15.dat
0 BFC INVERTNEXT
1 16 0 0 5 0 0 12 12 0 0 0 0.5 0 4-4cylo.dat
1 16 0 0 5 0 0 13 13 0 0 0 0.5 0 4-4cylo.dat
1 16 0 0 5.5 0 0 1 1 0 0 0 -1 0 4-4ring12.dat
