File Detail parts/s/5257s03.dat

Unofficial File parts/s/5257s03.dat

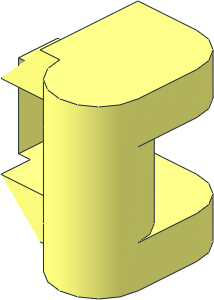

~Door 1 x 4 x 6 with Rounded Top, 4 Panes Window Raised Hinge Bar

File Header:

0 ~Door  1 x  4 x  6 with Rounded Top,  4 Panes Window Raised Hinge Bar
0 Name: s\5257s03.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 -4 0 4 0 0 0 8 0 0 0 4 4-4cyli.dat
1 16 0 -8 0 4 0 0 0 4 0 0 0 -4 2-4cyli.dat
1 16 0 -8 6 4 0 0 0 4 0 0 0 4 1-4cylo.dat
2 24 -10 -4 0 -4 -4 0
1 16 4 -6 3 0 -1 0 0 0 2 -3 0 0 rect2p.dat
1 16 0 -8 6 4 0 0 0 1 0 0 0 4 1-4chrd.dat
1 16 0 -4 6 4 0 0 0 -1 0 0 0 4 1-4chrd.dat
1 16 0 -8 0 4 0 0 0 1 0 0 0 -4 2-4edge.dat
1 16 0 -8 0 4 0 0 0 1 0 0 0 -4 2-4chrd.dat
2 24 -6 -8 10 -6 -8 0
2 24 -6 -8 10 0 -8 10
2 24 -6 -8 0 -4 -8 0
4 16 -4 -8 0 4 -8 0 4 -8 6 0 -8 10
4 16 -4 -8 0 0 -8 10 -6 -8 10 -6 -8 0
2 24 -4 -8 0 -4 -4 0
1 16 0 -4 0 4 0 0 0 1 0 0 0 4 2-4edge.dat
2 24 -10 -4 10 0 -4 10
4 16 0 -4 10 4 -4 6 4 -4 0 -10 -4 10
3 16 4 -4 0 -10 -4 0 -10 -4 10
4 16 -6 -8 10 0 -8 10 0 -4 10 -10 -4 10
4 16 -10 -4 0 -4 -4 0 -4 -8 0 -6 -8 0
1 16 0 8 0 4 0 0 0 -4 0 0 0 -4 2-4cyli.dat
1 16 0 8 6 4 0 0 0 -4 0 0 0 4 1-4cylo.dat
2 24 -4 4 0 -10 4 0
1 16 4 6 3 0 -1 0 0 0 -2 -3 0 0 rect2p.dat
1 16 0 8 6 4 0 0 0 -1 0 0 0 4 1-4chrd.dat
1 16 0 4 6 4 0 0 0 1 0 0 0 4 1-4chrd.dat
1 16 0 8 0 4 0 0 0 -1 0 0 0 -4 2-4edge.dat
1 16 0 8 0 4 0 0 0 -1 0 0 0 -4 2-4chrd.dat
2 24 -6 8 0 -6 8 10
2 24 0 8 10 -6 8 10
2 24 -4 8 0 -6 8 0
4 16 4 8 6 4 8 0 -4 8 0 0 8 10
4 16 -6 8 10 0 8 10 -4 8 0 -6 8 0
2 24 -4 4 0 -4 8 0
1 16 0 4 0 4 0 0 0 -1 0 0 0 4 2-4edge.dat
2 24 0 4 10 -10 4 10
4 16 4 4 0 4 4 6 0 4 10 -10 4 10
3 16 -10 4 0 4 4 0 -10 4 10
4 16 0 4 10 0 8 10 -6 8 10 -10 4 10
4 16 -4 8 0 -4 4 0 -10 4 0 -6 8 0
0 BFC INVERTNEXT
1 16 -10 0 5 0 -1.2 0 0 0 4 -2 0 0 box3u4a.dat
2 24 -10 -4 7 -10 -4 10
2 24 -10 -4 0 -10 -4 3
2 24 -10 4 7 -10 4 10
2 24 -10 4 0 -10 4 3

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2024-04-01 13:34:11
