File Detail parts/s/1762s01.dat

Official File parts/s/1762s01.dat

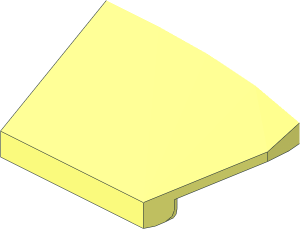

~Slope Brick 31 2 x 2 Double, Curved - Half

File Header:

0 ~Slope Brick 31  2 x  2 Double, Curved - Half
0 Name: s\1762s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03

Show contents

0 // Bottom
4 16 -20 0 -20 -16 0 -16 -4 0 -16 7 0 -20
4 16 -4 0 -16 0 0 -16 7 0 -16.5 7 0 -20
3 16 7 0 -16 7 0 -16.5 0 0 -16

0 // Inside Closed Part
3 16 -16 -3 -16 -12.2962 -3.27 -15.5434 -10 -3 -16
3 16 -12.2962 -3.27 -15.5434 -16 -3 -16 -14.1431 -4 -14.3091
3 16 -4 -3 -16 -10 -3 -16 -7.7038 -3.27 -15.5434
3 16 -4 -3 -16 -7.7038 -3.27 -15.5434 -5.8569 -4 -14.3091
3 16 -14.1431 -4 -14.3091 -16 -3 -16 -16 -12.4623 0
4 16 -16 -12.4623 0 -4 -12.4623 0 -5.8569 -4 -14.3091 -14.1431 -4 -14.3091
3 16 -5.8569 -4 -14.3091 -4 -12.4623 0 -4 -3 -16
3 16 -16 -3 -16 -10 -3 -16 -16 0 -16
4 16 -4 -3 -16 -4 0 -16 -16 0 -16 -10 -3 -16
3 16 -7.7038 -4 -15.5434 -5.8569 -4 -14.3091 -7.7038 -3.27 -15.5434
3 16 -12.2962 -4 -15.5434 -12.2962 -3.27 -15.5434 -14.1431 -4 -14.3091
4 16 -7.7038 -4 -15.5434 -7.7038 -3.27 -15.5434 -10 -3 -16 -10 -4 -16
4 16 -12.2962 -4 -15.5434 -10 -4 -16 -10 -3 -16 -12.2962 -3.27 -15.5434
4 16 -14.1431 -4 -14.3091 -5.8569 -4 -14.3091 -7.7038 -4 -15.5434 -12.2962 -4 -15.5434
3 16 -7.7038 -4 -15.5434 -10 -4 -16 -12.2962 -4 -15.5434
2 24 -12.2962 -3.27 -15.5434 -14.1431 -4 -14.3091
2 24 -12.2962 -3.27 -15.5434 -10 -3 -16
2 24 -10 -3 -16 -7.7038 -3.27 -15.5434
2 24 -7.7038 -3.27 -15.5434 -5.8569 -4 -14.3091
2 24 -10 -4 -16 -7.7038 -4 -15.5434
2 24 -12.2962 -4 -15.5434 -10 -4 -16
2 24 -7.7038 -4 -15.5434 -5.8569 -4 -14.3091
2 24 -14.1431 -4 -14.3091 -12.2962 -4 -15.5434
2 24 -5.8569 -4 -14.3091 -14.1431 -4 -14.3091
2 24 -16 -3 -16 -10 -3 -16
2 24 -4 -3 -16 -10 -3 -16
2 24 -16 -12.4623 0 -16 -3 -16
2 24 -4 -3 -16 -4 -12.4623 0
2 24 -4 0 -16 -4 -3 -16
2 24 -16 0 -16 -16 -3 -16
5 24 -12.2962 -3.27 -15.5434 -12.2962 -4 -15.5434 -14.1431 -4 -14.3091 -10 -4 -16
5 24 -10 -3 -16 -10 -4 -16 -12.2962 -3.27 -15.5434 -7.7038 -3.27 -15.5434
5 24 -7.7038 -3.27 -15.5434 -7.7038 -4 -15.5434 -10 -3 -16 -5.8569 -4 -14.3091

2 24 -5 -10.3924 -3.5 -6.5 -9.5053 -5
2 24 -6.5 -9.5053 -5 -5 -8.6182 -6.5
1 16 -4.5 -5.4462 -3.5 .5 0 0 0 0 -4.9462 0 -1 0 rect3.dat
1 16 -4.5 -4.5591 -6.5 -.5 0 0 0 0 -4.0591 0 1 0 rect.dat
1 16 -4.5 -.5 -5 0 0 .5 0 -1 0 1.5 0 0 rect2a.dat
1 16 -6.5 -10.5 -5 1.5 0 1.5 0 10 0 -1.5 0 1.5 tri3a4.dat

2 24 -15 -10.3924 -3.5 -13.5 -9.5053 -5
2 24 -13.5 -9.5053 -5 -15 -8.6182 -6.5
1 16 -15.5 -5.4462 -3.5 .5 0 0 0 0 -4.9462 0 -1 0 rect3.dat
1 16 -15.5 -4.5591 -6.5 -.5 0 0 0 0 -4.0591 0 1 0 rect.dat
1 16 -15.5 -.5 -5 0 0 -.5 0 -1 0 1.5 0 0 rect2a.dat
1 16 -13.5 -10.5 -5 -1.5 0 -1.5 0 10 0 -1.5 0 1.5 tri3a4.dat

0 // Inside Open Front and Curved Cutout
1 16 7 -2.375 -20 2.375 -1 0 0 0 2.375 3.5 0 0 1-4edge.dat
1 16 7 -2.375 -20 2.375 -1 0 0 0 2.375 3.5 0 0 1-4chrd.dat
1 16 7 -2.375 -16.5 2.375 0 0 0 0 2.375 0 -3.5 0 1-4cyls.dat
1 16 7 -2.375 -16.5 2.375 0 0 0 0 2.375 0 .5 0 1-4cyli.dat
1 16 7 -2.375 -16 2.375 0 0 0 0 2.375 0 1 0 1-4edge.dat
1 16 7 -2.375 -16 2.375 0 0 0 0 2.375 0 -1 0 1-4chrd.dat
4 16 7 -4 -20 7 0 -20 9.375 -2.375 -16.5 9.375 -4 -16.5
4 16 9.375 -3 -16 9.375 -2.375 -16 7 0 -16 0 -3 -16
3 16 0 -3 -16 7 0 -16 0 0 -16
2 24 0 0 -16 7 0 -16
2 24 9.375 -3 -16 0 -3 -16
2 24 9.375 -2.375 -16 9.375 -3 -16
4 16 9.375 -2.375 -16 9.375 -3 -16 9.375 -4 -16.5 9.375 -2.375 -16.5
3 16 9.375 -3 -16 9.375 -4 -16 9.375 -4 -16.5
2 24 9.375 -2.375 -16.5 9.375 -4 -16.5
2 24 9.375 -3 -16 9.375 -4 -16
2 24 9.375 -4 -16 9.375 -4 -16.5

3 16 0 -3 -16 5.107 -4 -13.2694 5.7574 -3.6436 -14.2426
3 16 5.7574 -3.6436 -14.2426 7.7038 -3.1672 -15.5434 0 -3 -16
3 16 7.7038 -3.1672 -15.5434 9.375 -3 -16 0 -3 -16
3 16 5.107 -4 -13.2694 0 -11.9705 0 9.375 -4 -12
3 16 0 -3 -16 0 -11.9705 0 5.107 -4 -13.2694
3 16 9.375 -4 -12 0 -11.9705 0 16.5 -8.5 -2
4 16 7.7038 -4 -15.5434 9.375 -4 -16 9.375 -3 -16 7.7038 -3.1672 -15.5434
4 16 7.7038 -3.1672 -15.5434 5.7574 -3.6436 -14.2426 5.7574 -4 -14.2426 7.7038 -4 -15.5434
4 16 7.7038 -4 -15.5434 5.7574 -4 -14.2426 5.107 -4 -13.2694 9.375 -4 -12
3 16 9.375 -4 -12 9.375 -4 -16 7.7038 -4 -15.5434
3 16 16.5 -8.8 0 16.5 -8.5 -2 0 -11.9705 0
3 16 5.107 -4 -13.2694 5.7574 -4 -14.2426 5.7574 -3.6436 -14.2426
2 24 5.107 -4 -13.2694 5.7574 -3.6436 -14.2426
2 24 7.7038 -3.1672 -15.5434 9.375 -3 -16
2 24 5.7574 -3.6436 -14.2426 7.7038 -3.1672 -15.5434
2 24 9.375 -4 -12 5.107 -4 -13.2694
2 24 5.107 -4 -13.2694 5.7574 -4 -14.2426
2 24 7.7038 -4 -15.5434 9.375 -4 -16
2 24 5.7574 -4 -14.2426 7.7038 -4 -15.5434
2 24 9.375 -4 -12 9.375 -4 -16
5 24 5.7574 -3.6436 -14.2426 5.7574 -4 -14.2426 5.107 -4 -13.2694 7.7038 -4 -15.5434
5 24 7.7038 -3.1672 -15.5434 7.7038 -4 -15.5434 5.7574 -4 -14.2426 9.375 -4 -16
2 24 0 -11.9705 0 0 -3 -16
2 24 16.5 -8.8 0 16.5 -8.5 -2
2 24 16.5 -8.5 -2 9.375 -4 -12
5 24 5.107 -4 -13.2694 0 -3 -16 0 -11.9705 0 5.7574 -3.6436 -14.2426
5 24 9.375 -4 -12 0 -11.9705 0 16.5 -8.5 -2 5.107 -4 -13.2694
5 24 16.5 -8.5 -2 0 -11.9705 0 9.375 -4 -12 16.5 -8.8 0
5 24 0 -11.9705 0 5.107 -4 -13.2694 9.375 -4 -12 0 -3 -16

4 16 16.5 -8.5 -6 9.375 -4 -16 9.375 -4 -12 16.5 -8.5 -2
3 16 9.375 -4 -16.5 9.375 -4 -16 16.5 -8.5 -6
4 16 16.5 -10 -6 7 -4 -20 9.375 -4 -16.5 16.5 -8.5 -6
3 16 16.5 -8.5 -6 16.5 -8.5 -2 16.5 -10 -6
4 16 16.5 -8.8 0 16.5 -12 0 16.5 -10 -6 16.5 -8.5 -2
2 24 16.5 -8.5 -2 16.5 -8.5 -6
2 24 16.5 -8.5 -6 9.375 -4 -16.5
2 24 16.5 -8.5 -6 16.5 -10 -6
2 24 7 -4 -20 16.5 -10 -6
2 24 16.5 -12 0 16.5 -10 -6

0 // Outside
1 16 -6.5 -2 -20 -13.5 0 0 0 0 -2 0 1 0 rect.dat
2 24 -20 -16 0 -20 -4 -20
3 16 -.865 -15.5442 0 -10 -16 0 7 -4 -20
3 16 16.5 -12 0 8.116 -14.35 0 16.5 -10 -6
3 16 -.865 -15.5442 0 7 -4 -20 8.116 -14.35 0
4 16 7 -4 -20 -10 -16 0 -20 -16 0 -20 -4 -20
3 16 16.5 -10 -6 8.116 -14.35 0 7 -4 -20
5 24 -10 -16 0 7 -4 -20 -.865 -15.5442 0 -20 -4 -20
5 24 8.116 -14.35 0 7 -4 -20 -.865 -15.5442 0 16.5 -10 -6
5 24 -.865 -15.5442 0 7 -4 -20 -10 -16 0 8.116 -14.35 0
5 24 16.5 -10 -6 8.116 -14.35 0 16.5 -12 0 7 -4 -20
