File Detail parts/12607p01.dat

Download Download zip file View patterns/composites/shortcuts

Unofficial File parts/12607p01.dat

Part Attributes: Base Part: 12607.dat

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

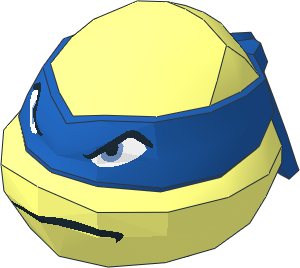

Minifig Head Ninja Turtle with Leonardo Looking Up Pattern

File Header:

0 Minifig Head Ninja Turtle with Leonardo Looking Up Pattern
0 Name: 12607p01.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink 12607pb02, Juniors, Leo, Nickelodeon
0 !KEYWORDS Rebrickable 12607c01pr0001, Set 10669, Set 79103
0 !KEYWORDS Teenage Mutant Ninja Turtles, TMNT

Show contents

0 // Main Part
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\12607s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\12607s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\12607s05.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\12607p01s03.dat

0 // Mask
1 1 0 0 0 1 0 0 0 1 0 0 0 1 s\12607s02.dat
1 1 0 0 0 1 0 0 0 1 0 0 0 1 s\12607p01s04.dat
1 1 0 0 0 -1 0 0 0 1 0 0 0 1 s\12607p01s04.dat

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/12607p01s03.dat (Needs More Votes)
parts/s/12607p01s04.dat (Needs More Votes)

This part has the following warnings

Ensure correct Minifig category

Current Votes:

User	Vote
Philo	Certify

Official parents and subparts

Part Events:

Chris Böhnke [KnightOfTarenta]

initially submitted the part.

2024-04-16 01:28:28

Early upload, mostly to better identify problems with the unprinted base part.

There seems to be an issue with the condlines on the pattern area that is not present on the base part. Very noticable in the mouth area on high resolution renders. What am I missing here?

Philippe Hurbain [Philo]

made the following comment.

2024-04-16 06:53:07

You are missing nothing :( For viewers that rely on condlines to perform smooth shading such as LDView, the geometry is broken by the pattern, so smooth shading doesn't occur. But even with viewers that don't rely on condlines for shading (LDCad for example) the pattern on the large flat surfaces still result in some "crumbled paper" effect. To avoid that, you can use TEXMAP, but it comes with other problems (lack of crispness, incompatibility with some editors such as MLCad).

Jeff Jones [notmaster]

made the following comment.

2024-04-25 09:31:40

uh the printing is bellow the aprt can you move it up

Chris Böhnke [KnightOfTarenta]

made the following comment.

2024-04-25 10:03:00

The base part needed a rework. Once the base part is fully approved, I will rework this printed version (including the pattern itself). The printed area also has a few triangles oriented incorrectly.

If you really need that part however, this should be a quick fix for 12607p01:

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\12607s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\12607s01.dat
1 1 0 0 0 1 0 0 0 1 0 0 0 1 s\12607s02.dat
1 1 0 0 0 1 0 0 0 1 0 0 0 1 s\12607s05.dat
1 16 0 24.403 0 1 0 0 0 1 0 0 0 1 s\12607p01s01.dat
1 1 0 24.403 0 1 0 0 0 1 0 0 0 1 s\12607p01s02.dat
1 1 0 24.403 0 -1 0 0 0 1 0 0 0 1 s\12607p01s02.dat

(download latest version of base part + the printed version)

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-05-19 13:04:03

* Patterned subs are off

Chris Böhnke [KnightOfTarenta]

submitted a new version of the part.

2024-05-23 12:30:27

Fixes:
-reworked using the updated base part 12607.dat
-alignment errors fixed
-cond lines moved to unpatterned sub-files
-reduced pattern detail to around 30-40%

Philippe Hurbain [Philo]

posted a vote of Certify.

2025-01-22 07:51:38
