Unofficial File parts/50986.dat
Part Attributes:
File Header:

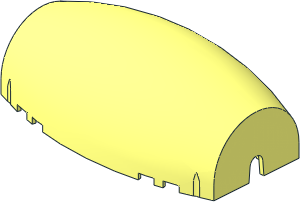

0 Windscreen 6 x 10 x 3 with Cutout - Ovoid
0 Name: 50986.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2010-09-10 {LEGO Universe Team} Original part shape
0 !HISTORY 2010-09-30 [Eldar] File preparation for LDraw Parts Tracker
0 !HISTORY 2012-08-09 [PTadmin] Official Update 2012-02
0 !HISTORY 2024-04-21 [GeraldLasser] Completely re-written original by El'dar Ismagilov [Eldar]
0 !HISTORY 2024-04-21 [GeraldLasser] Corrected Geometry, Hi Res
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\50986s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\10312s03.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\10312s03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\10312s03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\10312s03.dat
0 // DOME OUTER LAT
5 24 0 -54.426 -42.426 0 -59.604 -36.528 -25.62 -58.60011098 -35.75768536 25.62 -58.60011098 -35.75768536
5 24 0 -63.96 -30 0 -67.434 -22.962 25.62 -62.8642502 -29.36735 -25.62 -62.8642502 -29.36735
5 24 0 -48.528 47.604 0 -54.426 42.426 25.62 -53.53130637 41.53130637 -25.62 -53.53130637 41.53130637
5 24 0 -42 -51.96 0 -48.528 -47.604 25.62 -47.75768536 -46.60011098 -25.62 -47.75768536 -46.60011098
5 24 0 -48.528 -47.604 0 -54.426 -42.426 25.62 -53.53130637 -41.53130637 -25.62 -53.53130637 -41.53130637
5 24 0 -63.96 30 0 -67.434 22.962 -25.62 -62.8642502 29.36735 25.62 -62.8642502 29.36735
5 24 0 -71.484 7.83 0 -72 0 -25.62 -70.7347 0 25.62 -70.7347 0
5 24 0 -19.83 59.484 0 -27.528 57.954 25.62 -27.20054036 56.73184673 -25.62 -27.20054036 56.73184673
5 24 0 -27.528 57.954 0 -34.962 55.434 25.62 -34.47776969 54.26498933 -25.62 -34.47776969 54.26498933
5 24 0 -12 -60 0 -19.83 -59.484 25.62 -19.66487835 -58.22958158 -25.62 -19.66487835 -58.22958158
5 24 0 -59.604 36.528 0 -63.96 30 25.62 -62.8642502 29.36735 -25.62 -62.8642502 29.36735
5 24 0 -59.604 -36.528 0 -63.96 -30 -25.62 -62.8642502 -29.36735 25.62 -62.8642502 -29.36735
5 24 0 -67.434 -22.962 0 -69.954 -15.528 -25.62 -68.73184673 -15.20054036 25.62 -68.73184673 -15.20054036
5 24 0 -34.962 55.434 0 -42 51.96 25.62 -41.36735 50.8642502 -25.62 -41.36735 50.8642502
5 24 0 -34.962 -55.434 0 -42 -51.96 25.62 -41.36735 -50.8642502 -25.62 -41.36735 -50.8642502
5 24 0 -71.484 -7.83 0 -72 0 25.62 -70.7347 0 -25.62 -70.7347 0
5 24 0 -19.83 -59.484 0 -27.528 -57.954 25.62 -27.20054036 -56.73184673 -25.62 -27.20054036 -56.73184673
5 24 0 -67.434 22.962 0 -69.954 15.528 25.62 -68.73184673 15.20054036 -25.62 -68.73184673 15.20054036
5 24 0 -42 51.96 0 -48.528 47.604 25.62 -47.75768536 46.60011098 -25.62 -47.75768536 46.60011098
5 24 0 -27.528 -57.954 0 -34.962 -55.434 25.62 -34.47776969 -54.26498933 -25.62 -34.47776969 -54.26498933
5 24 0 -54.426 42.426 0 -59.604 36.528 25.62 -58.60011098 35.75768536 -25.62 -58.60011098 35.75768536
5 24 0 0 60 0 -12 60 25.62 -12 58.7347 -25.62 -12 58.7347
5 24 0 -69.954 -15.528 0 -71.484 -7.83 25.62 -68.73184673 -15.20054036 -25.62 -68.73184673 -15.20054036
5 24 0 -69.954 15.528 0 -71.484 7.83 25.62 -68.73184673 15.20054036 -25.62 -68.73184673 15.20054036
5 24 0 -12 60 0 -19.83 59.484 25.62 -19.66487835 58.22958158 -25.62 -19.66487835 58.22958158
5 24 0 -12 -60 0 0 -60 25.62 -12 -58.7347 -25.62 -12 -58.7347
0 // DOME OUTER LONG
5 24 -25.62 -70.7347 0 -50.991 -66.9508 0 -50.991 -66.47822312 7.1710794 -50.991 -66.47822312 -7.1710794
5 24 0 -72 0 25.62 -70.7347 0 0 -71.484 7.83 0 -71.484 -7.83
5 24 25.62 -70.7347 0 50.991 -66.9508 0 50.991 -66.47822312 7.1710794 50.991 -66.47822312 -7.1710794
5 24 -75.8653 -60.6855 0 -100 -52 0 -75.8653 -60.2668047 6.35345775 -75.8653 -60.2668047 -6.35345775
5 24 0 -72 0 -25.62 -70.7347 0 0 -71.484 7.83 0 -71.484 -7.83
5 24 75.8653 -60.6855 0 100 -52 0 75.8653 -60.2668047 6.35345775 75.8653 -60.2668047 -6.35345775
5 24 50.991 -66.9508 0 75.8653 -60.6855 0 75.8653 -60.2668047 6.35345775 75.8653 -60.2668047 -6.35345775
5 24 -50.991 -66.9508 0 -75.8653 -60.6855 0 -75.8653 -60.2668047 6.35345775 -75.8653 -60.2668047 -6.35345775
Status:
Needs More Votes (F)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
2024-04-22 00:34:20
Is this enough of a change that we need to obsolete?
Also need to be rewritten for license reasons.
2024-04-22 07:59:22
@orion, like the ring prims? s01 is basically re-written, this one as well, as the surfaces are completely new
2024-04-22 08:04:56
I would not obsolete it, the basic shape (bounding box) is very much the same, the difference is, that the -skirt- was not existant before, this is 12 LDU high, before the semicircle starts, 10312 is the same shape, which I made from scratch.
2024-04-22 08:10:13
2024-04-30 19:32:24
Typo in the latest History.
2024-04-30 19:47:38
If you rewrote from scratch, take ownership and change the history line to state the original author. If you rewrote from BI or LDD data, same as the first but add the standard history line about source.
changed Owner due to re-write
2025-08-28 13:16:46
bump
