File Detail parts/s/5241s01.dat

Unofficial File parts/s/5241s01.dat

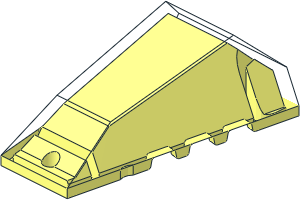

~Windscreen 6 x 4 x 1.667 Wedge Angled without Patternable Surfaces

File Header:

0 ~Windscreen  6 x  4 x  1.667 Wedge Angled without Patternable Surfaces
0 Name: s\5241s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5241s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\5241s02.dat

1 16 0 -5.5761 -50 1 0 0 0 -1.394025 0 0 0 1 stud3a.dat

4 16 20 0 56 -20 0 56 -40 0 60 40 0 60
4 16 -19.2781 0 -40 19.2781 0 -40 18.6115 0 -44 -18.6115 0 -44
4 16 -20 0 -60 -16.6115 0 -56 16.6115 0 -56 20 0 -60

1 16 0 -2.5 60 -40 0 0 0 0 2.5 0 -1 0 rect3.dat

1 16 0 -9.6134 56 -20 0 0 0 0 9.6134 0 1 0 rect.dat
4 16 20 -30.6268 44 -20 -30.6268 44 -20 -19.2268 56 20 -19.2268 56
4 16 -20.2437 -31.7908 42.7747 -20 -30.6268 44 20 -30.6268 44 20.2437 -31.7908 42.7747
4 16 -20.2437 -31.7908 42.7747 20.2437 -31.7908 42.7747 17.8326 -35.5666 38.8002 -17.8326 -35.5666 38.8002
2 24 -17.8326 -35.5666 38.8002 17.8326 -35.5666 38.8002
4 16 -17.8326 -35.5666 38.8002 17.8326 -35.5666 38.8002 13.7021 -20.1975 -28.4396 -13.7021 -20.1975 -28.4396
2 24 -13.7021 -20.1975 -28.4396 13.7021 -20.1975 -28.4396
4 16 -15.1815 -12.8759 -40 -13.7021 -20.1975 -28.4396 13.7021 -20.1975 -28.4396 15.1815 -12.8759 -40
2 24 -15.1815 -12.8759 -40 15.1815 -12.8759 -40
4 16 -15.1815 -12.8759 -40 15.1815 -12.8759 -40 19.2781 -4.074 -40 -19.2781 -4.074 -40
1 16 0 -2.037 -40 -19.2781 0 0 0 0 2.037 0 -1 0 rect3.dat

1 16 0 -2.037 -44 -18.6115 0 0 0 0 2.037 0 1 0 rect3.dat
4 16 15.6934 -10.3426 -44 -15.6934 -10.3426 -44 -18.6115 -4.074 -44 18.6115 -4.074 -44
2 24 15.6934 -10.3426 -44 -15.6934 -10.3426 -44
3 16 15.6934 -10.3426 -44 0 -9.0767 -46 -15.6934 -10.3426 -44
3 16 -15.9122 -5.5761 -56 0 -5.5761 -54 15.9122 -5.5761 -56
2 24 -15.9122 -5.5761 -56 15.9122 -5.5761 -56
4 16 -16.6115 -4.074 -56 -15.9122 -5.5761 -56 15.9122 -5.5761 -56 16.6115 -4.074 -56
1 16 0 -2.037 -56 16.6115 0 0 0 0 2.037 0 -1 0 rect3.dat

1 16 0 -2.5 -60 20 0 0 0 0 -2.5 0 1 0 rect.dat

2 24 32.598 -21 60 -32.598 -21 60
2 24 -20.466 -40 40 20.466 -40 40
2 24 16.16 -24 -30 -16.16 -24 -30

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/5241s02.dat (Needs More Votes)
parts/s/5241s03.dat (Needs More Votes)
parts/s/5241s04.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2024-04-23 21:14:53
