File Header:

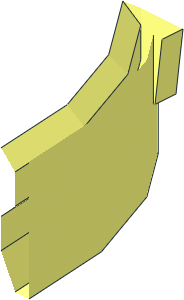

0 Boatlock Top Connector - Quarter
0 Name: boat-t-connq.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Primitive
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

4 16 19.052 1 11 18.186 0 10.5 14.8491 0 14.8491 15.983 1 15
4 16 20.2839 0 5.4348 18.186 0 10.5 19.052 1 11 21.2498 1 5.6936
4 16 21 0 0 20.2839 0 5.4348 21.2498 1 5.6936 22 1 0
2 24 15.983 1 15 14.8491 0 14.8491
2 24 15.983 1 15 19.052 1 11
2 24 21.2498 1 5.6936 19.052 1 11
2 24 21.2498 1 5.6936 22 1 0
2 24 20.2839 0 5.4348 21 0 0
2 24 18.186 0 10.5 20.2839 0 5.4348
2 24 14.8491 0 14.8491 18.186 0 10.5
5 24 20.2839 0 5.4348 21.2498 1 5.6936 21 0 0 19.052 1 11
5 24 19.052 1 11 18.186 0 10.5 15.983 1 15 20.2839 0 5.4348

4 16 15.983 1 15 15.983 3 15 19.052 3 11 19.052 1 11
4 16 21.2498 3 5.6936 22 3 0 22 1 0 21.2498 1 5.6936
4 16 21.2498 3 5.6936 21.2498 1 5.6936 19.052 1 11 19.052 3 11
2 24 15.983 1 15 15.983 3 15
2 24 21.2498 3 5.6936 22 3 0
2 24 19.052 3 11 21.2498 3 5.6936
2 24 15.983 3 15 19.052 3 11
5 24 21.2498 3 5.6936 21.2498 1 5.6936 22 1 0 19.052 3 11
5 24 19.052 3 11 19.052 1 11 21.2498 1 5.6936 15.983 3 15

4 16 14.8491 6 14.8491 15.983 8 15 19.052 8 11 18.186 6 10.5
4 16 14.8491 4 14.8491 14.8491 6 14.8491 18.186 6 10.5 18.186 4 10.5
4 16 14.8491 4 14.8491 18.186 4 10.5 19.052 3 11 15.983 3 15
4 16 21.2498 8 5.6936 22 8 0 21 6 0 20.2839 6 5.4348
4 16 19.052 8 11 21.2498 8 5.6936 20.2839 6 5.4348 18.186 6 10.5
4 16 21 6 0 21 4 0 20.2839 4 5.4348 20.2839 6 5.4348
4 16 18.186 4 10.5 18.186 6 10.5 20.2839 6 5.4348 20.2839 4 5.4348
4 16 19.052 3 11 18.186 4 10.5 20.2839 4 5.4348 21.2498 3 5.6936
4 16 21.2498 3 5.6936 20.2839 4 5.4348 21 4 0 22 3 0
2 24 15.983 8 15 14.8491 6 14.8491
2 24 14.8491 6 14.8491 14.8491 4 14.8491
2 24 14.8491 4 14.8491 15.983 3 15
2 24 15.983 8 15 19.052 8 11
2 24 21.2498 8 5.6936 22 8 0
2 24 20.2839 6 5.4348 21 6 0
2 24 18.186 6 10.5 20.2839 6 5.4348
2 24 14.8491 6 14.8491 18.186 6 10.5
2 24 19.052 8 11 21.2498 8 5.6936
2 24 18.186 4 10.5 14.8491 4 14.8491
2 24 20.2839 4 5.4348 18.186 4 10.5
2 24 21 4 0 20.2839 4 5.4348
5 24 18.186 6 10.5 18.186 4 10.5 14.8491 6 14.8491 20.2839 4 5.4348
5 24 19.052 8 11 18.186 6 10.5 15.983 8 15 20.2839 6 5.4348
5 24 18.186 4 10.5 19.052 3 11 21.2498 3 5.6936 14.8491 4 14.8491
5 24 21.2498 8 5.6936 20.2839 6 5.4348 19.052 8 11 21 6 0
5 24 21.2498 3 5.6936 20.2839 4 5.4348 18.186 4 10.5 22 3 0
5 24 20.2839 6 5.4348 20.2839 4 5.4348 21 4 0 18.186 6 10.5

4 16 19.052 8 11 15.983 8 15 17.2326 8 15 19.918 8 11.5
4 16 21.2498 8 5.6936 19.052 8 11 19.918 8 11.5 22.2157 8 5.9524
4 16 22 8 0 21.2498 8 5.6936 22.2157 8 5.9524 23 8 0
2 24 15.983 8 15 17.2326 8 15
2 24 19.918 8 11.5 22.2157 8 5.9524
2 24 17.2326 8 15 19.918 8 11.5
2 24 23 8 0 22.2157 8 5.9524

4 16 23 0 0 23 8 0 22.2157 8 5.9524 22.2157 0 5.9524
4 16 19.918 0 11.5 22.2157 0 5.9524 22.2157 8 5.9524 19.918 8 11.5
4 16 19.918 0 11.5 19.918 8 11.5 18.3835 4 13.5 18.3835 0 13.5
4 16 19.918 8 11.5 17.2326 8 15 17.2326 4 15 18.3835 4 13.5
5 24 22.2157 0 5.9524 22.2157 8 5.9524 23 8 0 19.918 0 11.5
5 24 19.918 8 11.5 19.918 0 11.5 22.2157 8 5.9524 18.3835 0 13.5

4 16 14.8491 4 14.8491 15.983 3 15 15.983 8 15 14.8491 6 14.8491
4 16 17.2326 8 15 15.983 8 15 15.983 3 15 17.2326 4 15
4 16 15.983 3 15 15.983 1 15 18.5 4 15 17.2326 4 15
3 16 14.8491 0 14.8491 15.983 0 15 15.983 1 15
4 16 15.983 0 15 19 0 15 18.5 4 15 15.983 1 15
4 16 19 0 13.5 18.5 4 13.5 18.5 4 15 19 0 15
4 16 18.3835 4 13.5 17.2326 4 15 18.5 4 15 18.5 4 13.5
4 16 18.3835 0 13.5 18.3835 4 13.5 18.5 4 13.5 19 0 13.5
2 24 17.2326 8 15 17.2326 4 15
2 24 18.5 4 15 19 0 15
2 24 18.5 4 13.5 19 0 13.5
2 24 18.5 4 13.5 18.3835 4 13.5
2 24 18.5 4 15 17.2326 4 15
2 24 17.2326 4 15 18.3835 4 13.5
2 24 18.5 4 15 18.5 4 13.5
2 24 19 0 15 19 0 13.5
2 24 18.3835 0 13.5 18.3835 4 13.5
5 24 15.983 8 15 15.983 3 15 14.8491 4 14.8491 17.2326 8 15
5 24 15.983 1 15 15.983 0 15 14.8491 0 14.8491 19 0 15

5 24 22 1 0 21 0 0 21.2498 1 -5.6936 21.2498 1 5.6936
5 24 21 6 0 21 4 0 20.2839 6 5.4348 20.2839 6 -5.4348
5 24 21 4 0 22 3 0 20.2839 4 5.4348 20.2839 4 -5.4348
5 24 22 8 0 21 6 0 21.2498 8 5.6936 21.2498 8 -5.6936
5 24 23 0 0 23 8 0 22.2157 0 -5.9524 22.2157 0 5.9524
5 24 22 3 0 22 1 0 21.2498 3 -5.6936 21.2498 3 5.6936
