Unofficial File p/boat-t-baseq.dat
File Header:

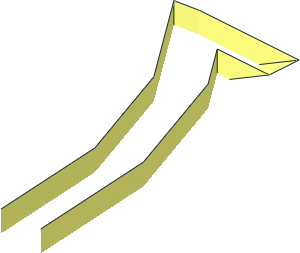

0 Boatlock Top Base - Quarter
0 Name: boat-t-baseq.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Primitive
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
4 16 14.8491 0 14.8491 14.8491 1 14.8491 18.186 1 10.5 18.186 0 10.5
4 16 18.186 0 10.5 18.186 1 10.5 20.2839 1 5.4348 20.2839 0 5.4348
4 16 20.2839 0 5.4348 20.2839 1 5.4348 21 1 0 21 0 0
2 24 20.2839 0 5.4348 21 0 0
2 24 18.186 0 10.5 20.2839 0 5.4348
2 24 14.8491 0 14.8491 18.186 0 10.5
2 24 14.8491 0 14.8491 14.8491 1 14.8491
5 24 18.186 0 10.5 18.186 1 10.5 14.8491 1 14.8491 20.2839 0 5.4348
5 24 20.2839 1 5.4348 20.2839 0 5.4348 18.186 1 10.5 21 0 0
4 16 21 0 15 19 1 15 15.983 1 15 15.983 0 15
4 16 15.983 1 15 14.8491 1 14.8491 14.8491 0 14.8491 15.983 0 15
4 16 18.3835 1 13.5 19 1 13.5 21 0 13.5 18.3835 0 13.5
4 16 21 0 13.5 19 1 13.5 19 1 15 21 0 15
2 24 15.983 0 15 14.8491 0 14.8491
2 24 21 0 13.5 18.3835 0 13.5
2 24 15.983 0 15 21 0 15
2 24 21 0 15 21 0 13.5
2 24 19 1 13.5 21 0 13.5
2 24 19 1 15 21 0 15
2 24 18.3835 0 13.5 18.3835 1 13.5
5 24 15.983 0 15 15.983 1 15 14.8491 0 14.8491 19 1 15
4 16 23 0 0 23 1 0 22.2157 1 5.9524 22.2157 0 5.9524
4 16 22.2157 0 5.9524 22.2157 1 5.9524 19.918 1 11.5 19.918 0 11.5
4 16 18.3835 0 13.5 19.918 0 11.5 19.918 1 11.5 18.3835 1 13.5
2 24 18.3835 0 13.5 19.918 0 11.5
2 24 22.2157 0 5.9524 19.918 0 11.5
2 24 23 0 0 22.2157 0 5.9524
5 24 22.2157 0 5.9524 22.2157 1 5.9524 23 1 0 19.918 0 11.5
5 24 19.918 1 11.5 19.918 0 11.5 18.3835 0 13.5 22.2157 1 5.9524
5 24 23 0 0 23 1 0 22.2157 1 5.9524 22.2157 1 -5.9524
5 24 21 1 0 21 0 0 20.2839 0 -5.4348 20.2839 0 5.4348
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
