Official File parts/s/4638848fs01.dat

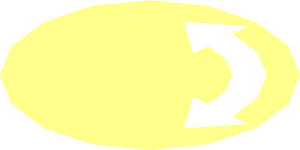

~Sticker 1.8 x 1.8 Round with Curved Arrow - Background
File Header:
0 ~Sticker 1.8 x 1.8 Round with Curved Arrow - Background 0 Name: s\4638848fs01.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Subpart UPDATE 2024-05 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2024-05-08 [GeraldLasser] Subfiled from 4638848f 0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
0 // The plain half of the sticker. 1 16 0 -.25 0 -17.5 0 0 0 1 0 0 0 -17.5 3-8chrd.dat 1 16 0 -.25 0 -17.5 0 0 0 1 0 0 0 17.5 1-8chrd.dat 3 16 -12.37425 -.25 12.37425 -17.5 -.25 0 12.37425 -.25 -12.37425 0 // The half of the sticker containing the arrow. 1 16 0 -.25 0 17.5 0 0 0 1 0 0 0 17.5 1-8chrd.dat 1 16 0 -.25 0 17.5 0 0 0 1 0 0 0 -17.5 1-8chrd.dat 1 16 0 -.25 0 0 0 -17.5 0 1 0 17.5 0 0 1-8chrd.dat 1 16 0 -.25 0 0 0 17.5 0 1 0 17.5 0 0 1-8chrd.dat 1 16 0 -.25 0 9.6 0 0 0 1 0 0 0 9.6 1-4chrd.dat 1 16 0 -.25 0 13.6 0 0 0 1 0 0 0 13.6 1-4tang.dat 4 16 7.1 -.25 0 0 -.25 7.1 -5.98 -.25 11.6 -12.37425 -.25 12.37425 4 16 7.1 -.25 0 -12.37425 -.25 12.37425 12.37425 -.25 -12.37425 11.6 -.25 -5.98 3 16 7.7044 -.25 11.53008 9.61656 -.25 9.61656 12.37425 -.25 12.37425 3 16 11.53008 -.25 7.7044 12.5648 -.25 5.20448 12.37425 -.25 12.37425 3 16 9.61656 -.25 9.61656 11.53008 -.25 7.7044 12.37425 -.25 12.37425 3 16 12.5648 -.25 5.20448 13.6 -.25 2.70504 16.1 -.25 0 4 16 17.5 -.25 0 12.37425 -.25 12.37425 12.5648 -.25 5.20448 16.1 -.25 0 3 16 13.6 -.25 2.70504 13.6 -.25 0 16.1 -.25 0 4 16 11.6 -.25 -5.98 12.37425 -.25 -12.37425 17.5 -.25 0 16.1 -.25 0 3 16 2.70504 -.25 13.6 5.20448 -.25 12.5648 0 -.25 16.1 3 16 0 -.25 13.6 2.70504 -.25 13.6 0 -.25 16.1 4 16 0 -.25 17.5 0 -.25 16.1 5.20448 -.25 12.5648 12.37425 -.25 12.37425 3 16 5.20448 -.25 12.5648 7.7044 -.25 11.53008 12.37425 -.25 12.37425 4 16 0 -.25 16.1 0 -.25 17.5 -12.37425 -.25 12.37425 -5.98 -.25 11.6 4 16 7.1 -.25 0 9.6 -.25 0 0 -.25 9.6 0 -.25 7.1
Status:
Official Official
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 15: 3 16 -12.37425 -.25 12.37425 -17.5 -.25 0 12.37425 -.25 -12.37425
    Line 24: 4 16 7.1 -.25 0 0 -.25 7.1 -5.98 -.25 11.6 -12.37425 -.25 12.37425
    Line 25: 4 16 7.1 -.25 0 -12.37425 -.25 12.37425 12.37425 -.25 -12.37425 11.6 -.25 -5.98
    Line 26: 3 16 7.7044 -.25 11.53008 9.61656 -.25 9.61656 12.37425 -.25 12.37425
    Line 27: 3 16 11.53008 -.25 7.7044 12.5648 -.25 5.20448 12.37425 -.25 12.37425
    Line 28: 3 16 9.61656 -.25 9.61656 11.53008 -.25 7.7044 12.37425 -.25 12.37425
    Line 29: 3 16 12.5648 -.25 5.20448 13.6 -.25 2.70504 16.1 -.25 0
    Line 30: 4 16 17.5 -.25 0 12.37425 -.25 12.37425 12.5648 -.25 5.20448 16.1 -.25 0
    Line 31: 3 16 13.6 -.25 2.70504 13.6 -.25 0 16.1 -.25 0
    Line 32: 4 16 11.6 -.25 -5.98 12.37425 -.25 -12.37425 17.5 -.25 0 16.1 -.25 0
    Line 33: 3 16 2.70504 -.25 13.6 5.20448 -.25 12.5648 0 -.25 16.1
    Line 34: 3 16 0 -.25 13.6 2.70504 -.25 13.6 0 -.25 16.1
    Line 35: 4 16 0 -.25 17.5 0 -.25 16.1 5.20448 -.25 12.5648 12.37425 -.25 12.37425
    Line 36: 3 16 5.20448 -.25 12.5648 7.7044 -.25 11.53008 12.37425 -.25 12.37425
    Line 37: 4 16 0 -.25 16.1 0 -.25 17.5 -12.37425 -.25 12.37425 -5.98 -.25 11.6
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
