Official File parts/s/4638848fs02.dat
File Header:

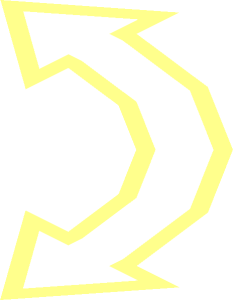

0 ~Sticker 1.8 x 1.8 Round with Curved Arrow - Arrow Outline
0 Name: s\4638848fs02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-05-08 [GeraldLasser] Subfiled from 4638848f
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
0 // Double headed arrow outline
4 16 -.8 -.25 8.7 0 -.25 7.1 0 -.25 9.6 -.8 -.25 10.4
3 16 -.8 -.25 10.4 0 -.25 9.6 0 -.25 10.4
3 16 -.8 -.25 12.8 0 -.25 12.8 0 -.25 13.6
4 16 -.8 -.25 12.8 0 -.25 13.6 0 -.25 16.1 -.8 -.25 14.5
4 16 0 -.25 7.1 -.8 -.25 8.7 -4.65 -.25 11.6 -5.98 -.25 11.6
4 16 -5.98 -.25 11.6 -4.65 -.25 11.6 -.8 -.25 14.5 0 -.25 16.1
0 // Inside outline
1 16 0 -.25 0 .8 0 0 0 1 0 0 0 .8 1-4ring12.dat
4 16 14.5 -.25 -.8 16.1 -.25 0 13.6 -.25 0 12.8 -.25 -.8
3 16 12.8 -.25 -.8 13.6 -.25 0 12.8 -.25 0
3 16 10.4 -.25 -.8 10.4 -.25 0 9.6 -.25 0
4 16 10.4 -.25 -.8 9.6 -.25 0 7.1 -.25 0 8.7 -.25 -.8
4 16 16.1 -.25 0 14.5 -.25 -.8 11.6 -.25 -4.65 11.6 -.25 -5.98
4 16 11.6 -.25 -5.98 11.6 -.25 -4.65 8.7 -.25 -.8 7.1 -.25 0
0 // Outside outline
1 16 0 -.25 0 .8 0 0 0 1 0 0 0 .8 1-4ring16.dat
Status:
Official
