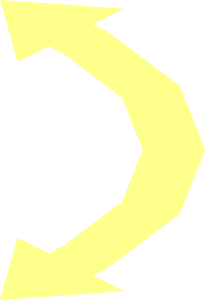

~Sticker 1.8 x 1.8 Round with Curved Arrow - Arrow Centre
File Header:
0 ~Sticker 1.8 x 1.8 Round with Curved Arrow - Arrow Centre 0 Name: s\4638848fs03.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Subpart UPDATE 2024-05 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2024-05-08 [GeraldLasser] Subfiled from 4638848f 0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
0 // One arrow head 3 16 -.8 -.25 10.4 -.8 -.25 12.8 -4.65 -.25 11.6 3 16 -.8 -.25 10.4 -4.65 -.25 11.6 -.8 -.25 8.7 4 16 0 -.25 10.4 0 -.25 12.8 -.8 -.25 12.8 -.8 -.25 10.4 3 16 -4.65 -.25 11.6 -.8 -.25 12.8 -.8 -.25 14.5 0 // Second arrow head 3 16 12.8 -.25 -.8 10.4 -.25 -.8 11.6 -.25 -4.65 3 16 11.6 -.25 -4.65 10.4 -.25 -.8 8.7 -.25 -.8 3 16 12.8 -.25 -.8 11.6 -.25 -4.65 14.5 -.25 -.8 4 16 10.4 -.25 -.8 12.8 -.25 -.8 12.8 -.25 0 10.4 -.25 0 0 // Arrow internal 1 16 0 -.25 0 10.4 0 0 0 1 0 0 0 10.4 1-4tang.dat 1 16 0 -.25 0 12.8 0 0 0 1 0 0 0 12.8 1-8chrd.dat 1 16 0 -.25 0 0 0 12.8 0 1 0 12.8 0 0 1-8chrd.dat 3 16 10.4 -.25 0 12.8 -.25 0 10.4 -.25 2.06856 4 16 9.05088 -.25 9.05088 9.60832 -.25 3.97992 10.4 -.25 2.06856 12.8 -.25 0 3 16 9.60832 -.25 3.97992 9.05088 -.25 9.05088 8.81712 -.25 5.8916 3 16 8.81712 -.25 5.8916 9.05088 -.25 9.05088 7.35384 -.25 7.35384 3 16 7.35384 -.25 7.35384 9.05088 -.25 9.05088 5.8916 -.25 8.81712 3 16 5.8916 -.25 8.81712 9.05088 -.25 9.05088 3.97992 -.25 9.60832 4 16 9.05088 -.25 9.05088 0 -.25 12.8 2.06856 -.25 10.4 3.97992 -.25 9.60832 3 16 2.06856 -.25 10.4 0 -.25 12.8 0 -.25 10.4
Status:
Official Official
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 26: 3 16 10.4 -.25 0 12.8 -.25 0 10.4 -.25 2.06856
    Line 27: 4 16 9.05088 -.25 9.05088 9.60832 -.25 3.97992 10.4 -.25 2.06856 12.8 -.25 0
    Line 28: 3 16 9.60832 -.25 3.97992 9.05088 -.25 9.05088 8.81712 -.25 5.8916
    Line 29: 3 16 8.81712 -.25 5.8916 9.05088 -.25 9.05088 7.35384 -.25 7.35384
    Line 30: 3 16 7.35384 -.25 7.35384 9.05088 -.25 9.05088 5.8916 -.25 8.81712
    Line 31: 3 16 5.8916 -.25 8.81712 9.05088 -.25 9.05088 3.97992 -.25 9.60832
    Line 32: 4 16 9.05088 -.25 9.05088 0 -.25 12.8 2.06856 -.25 10.4 3.97992 -.25 9.60832
    Line 33: 3 16 2.06856 -.25 10.4 0 -.25 12.8 0 -.25 10.4
