File Detail parts/u9222.dat

Unofficial File parts/u9222.dat

Part Attributes:

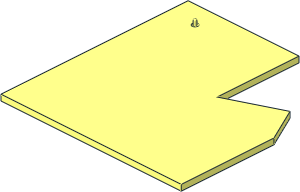

~Train Track 12V Tapered Point Left Bottom Plate

File Header:

0 ~Train Track 12V Tapered Point Left Bottom Plate
0 Name: u9222.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2024-05-12 [Blechtaler] made CCW, added recess for u9226

Show contents

0 // Top
1 16 -60 0 0 4 0 0 0 1 0 0 0 4 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -60 0 0 4 0 0 0 4 0 0 0 4 4-4cylo.dat
1 16 -60 4 0 2 0 0 0 1 0 0 0 2 4-4ring1.dat
1 16 -60 4 0 2 0 0 0 1 0 0 0 2 4-4edge.dat
1 16 -60 4 0 2 0 0 0 -9 0 0 0 2 4-4cyli.dat
1 16 -60 -5 0 2 0 0 0 -2 0 0 0 2 4-8sphe.dat

1 16 -20 4 30 0 0 80 4 0 0 0 -1 0 rect.dat
1 16 -100 4 -105 0 1 0 0 0 4 135 0 0 rect2p.dat
1 16 30 4 -240 0 0 130 4 0 0 0 1 0 rect.dat
1 16 160 4 -173.1655 0 -1 0 0 0 4 66.8345 0 0 rect2p.dat
1 16 146.6425 4 -81.3405 0 -1 -13.3575 4 0 0 0 0 24.9905 rect.dat
1 16 96.6425 4 -72.2695 36.6425 1 0 0 0 4 15.9195 0 0 rect2p.dat
1 16 60 4 -29.0945 0 -1 0 4 0 0 0 0 -59.0945 rect3.dat

3 16 160 0 -106.331 133.4 0 -56.35 60 0 -88.189
4 16 60 0 -88.189 -100 0 -240 160 0 -240 160 0 -106.331

4 16 60 0 -88.189 -56 0 -4 -64 0 -4 -100 0 -240
4 16 -100 0 -240 -64 0 -4 -64 0 4 -100 0 30
4 16 -100 0 30 -64 0 4 -56 0 4 60 0 30
4 16 60 0 30 -56 0 4 -56 0 -4 60 0 -88.189

0 // Bottom
1 16 -60 4 0 7 0 0 0 -1 0 0 0 7 4-4ndis.dat
1 16 -60 7 0 7 0 0 0 -3 0 0 0 7 4-4cylc.dat

1 16 -20 6 26 0 0 76 2 0 0 0 1 0 rect.dat
1 16 -96 6 -105 0 -1 0 0 0 2 131 0 0 rect2p.dat
1 16 30 6 -236 0 0 126 2 0 0 0 -1 0 rect.dat
1 16 156 6 -171.6665 0 1 0 0 0 2 64.3335 0 0 rect2p.dat
1 16 143.605 6 -84.473 -12.395 1 0 0 0 2 22.86 0 0 rect.dat
1 16 93.605 6 -77.9505 37.605 -1 0 0 0 2 16.3375 0 0 rect2p.dat
1 16 56 6 -34.144 0 1 0 2 0 0 0 0 -60.144 rect3.dat

4 16 56 8 26 -96 8 26 -100 8 30 60 8 30
4 16 -96 8 26 -96 8 -236 -100 8 -240 -100 8 30
4 16 -96 8 -236 156 8 -236 160 8 -240 -100 8 -240
4 16 160 8 -106.331 160 8 -240 156 8 -236 156 8 -107.333
4 16 156 8 -107.333 131.21 8 -61.613 133.285 8 -56.35 160 8 -106.331
4 16 133.285 8 -56.35 131.21 8 -61.613 56 8 -94.288 60 8 -88.189
4 16 56 8 -94.288 56 8 26 60 8 30 60 8 -88.189

3 16 131.21 4 -61.613 156 4 -107.333 56 4 -94.288
4 16 156 4 -236 -96 4 -236 56 4 -94.288 156 4 -107.333
4 16 -96 4 -236 -67 4 -7 -53 4 -7 56 4 -94.288
4 16 -67 4 7 -67 4 -7 -96 4 -236 -96 4 26
4 16 -53 4 7 -67 4 7 -96 4 26 56 4 26
4 16 -53 4 -7 -53 4 7 56 4 26 56 4 -94.288

Status:

Needs More Votes (CF)

Current Votes:

User	Vote
RainbowDolphin	Certify

Official parents and subparts

Part Events:

Archived Part Events:

None

Rene Rechthaler [Blechtaler]

initially submitted the part.

2024-05-12 16:52:43

-made CCW
-applied rectifier
-with connector for u9226
-do we need more details? (most of them are inside and there are some holes with R1.5 LDU)

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-05-31 15:26:43

Javier Orquera [kuramapika1]

made the following comment.

2025-05-18 14:24:36

I would add, at least, the details of the moving red part (the one that allow to change rails).

Rene Rechthaler [Blechtaler]

made the following comment.

2025-05-18 16:48:28

there is also a quite prominent cutout next to the box for the moving red part...
But that would require a rework of u9220 (s\864s01.dat)
one more thing I found: the slanted outside should be curved to match u9220, should that also be here?

Rene Rechthaler [Blechtaler]

made the following comment.

2025-05-20 16:05:03

am thinking about adding this (and more details): should it be then also get unlinked from the original (renumber this to b and obsolete the official one)?
