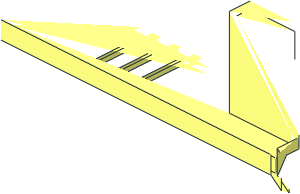

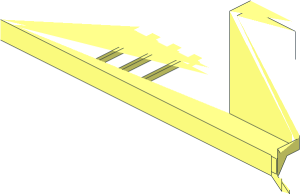

~Train Base 6 x 30 with IR Receivers and Battery Compartment - Quarter

File Header:

0 ~Train Base  6 x 30 with IR Receivers and Battery Compartment - Quarter
0 Name: s\55455s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Bottom Rim
4 16 -140 16 -56 -139.5 16 -55.5 -80.5 16 -55.5 -80 16 -56
3 16 -300 16 -60 -296 16 -56 -140 16 -56
3 16 -300 16 -60 -140 16 -56 -80 16 -56
4 16 -80 16 -56 -39 16 -56 -40 16 -60 -300 16 -60
4 16 -37 16 -57.0279 -40 16 -60 -39 16 -56 -37 16 -56
4 16 -40 16 -60 -37 16 -57.0279 -14.0557 16 -68.5 -20 16 -70
2 24 -40 16 -60 -20 16 -70
2 24 -14.0557 16 -68.5 -37 16 -57.0279
2 24 -37 16 -57.0279 -37 16 -56

1 16 -80.25 10 -55.75 0 -1 .25 -6 0 0 0 0 -.25 rect.dat
1 16 -59.5 10 -56 0 0 20.5 -6 0 0 0 -1 0 rect3.dat
1 16 -139.75 10 -55.75 0 1 .25 -6 0 0 0 0 .25 rect.dat
1 16 -110 10 -55.5 -29.5 0 0 0 0 -6 0 -1 0 rect2p.dat
1 16 -218 10 -56 0 0 -78 6 0 0 0 -1 0 rect3.dat

3 16 -39 4 -56 -39 4 -48 -39 16 -56
1 16 -38 10 -52 -1 0 0 0 -1 -6 0 0 4 rect.dat

0 // underside
3 16 -39 4 -48 -39 4 -56 -296 4 -56
3 16 -37 4 -36 -37 4 -48 -39 4 -48
2 24 -39 4 -56 -39 4 -48
2 24 -37 4 -36 -37 4 -48

3 16 -296 4 -56 -228 4 0 -228 4 -8
3 16 -228 4 -8 -220 4 -8 -296 4 -56
3 16 -296 4 -56 -220 4 -8 -212 4 -8
3 16 -296 4 -56 -212 4 -8 -208 4 -8
3 16 -296 4 -56 -208 4 -8 -200 4 -8
3 16 -296 4 -56 -200 4 -8 -192 4 -8
3 16 -296 4 -56 -192 4 -8 -188 4 -8
3 16 -296 4 -56 -188 4 -8 -180 4 -8
3 16 -296 4 -56 -180 4 -8 -172 4 -8
3 16 -296 4 -56 -172 4 -8 -168 4 -8
3 16 -296 4 -56 -168 4 -8 -160 4 -8
3 16 -296 4 -56 -160 4 -8 -152 4 -8
4 16 -172 4 -8 -172 4 0 -168 4 0 -168 4 -8
4 16 -208 4 -8 -212 4 -8 -212 4 0 -208 4 0
4 16 -188 4 -8 -192 4 -8 -192 4 0 -188 4 0

1 16 -220 4 -32 0 0 1.5 0 4 0 24 0 0 box3u5p.dat
1 16 -200 4 -32 0 0 1.5 0 4 0 24 0 0 box3u5p.dat
1 16 -181.5 6 -32 0 1 0 2 0 0 0 0 -24 rect3.dat
1 16 -178.5 6 -52.75 0 -1 0 2 0 0 0 0 3.25 rect.dat
1 16 -178.5 6 -27.25 0 -1 0 -2 0 0 0 0 -19.25 rect3.dat
3 16 -178.5 8 -49.5 -178.5 8 -56 -181.5 8 -56
4 16 -181.5 8 -8 -178.5 8 -46.5 -178.5 8 -49.5 -181.5 8 -56
3 16 -181.5 8 -8 -178.5 8 -8 -178.5 8 -46.5
2 24 -181.5 8 -56 -178.5 8 -56
1 16 -133.5 4 -48 -45 0 0 0 4 0 0 0 -1.5 box3u8p.dat
1 16 -88.5 5 -46.5 3 0 0 0 0 3 0 -3 0 1-4cylo.dat
1 16 -88.5 5 -46.5 3 0 0 0 0 3 0 -1 0 1-4chrd.dat
1 16 -88.5 5 -49.5 3 0 0 0 0 3 0 1 0 1-4chrd.dat
1 16 -85.5 4.5 -48 0 -1 0 0 0 -.5 1.5 0 0 rect3.dat
2 24 -88.5 4 -46.5 -85.5 4 -46.5
4 16 -88.5 8 -46.5 -88.5 4 -46.5 -85.5 4 -46.5 -85.5 5 -46.5
4 16 -85.5 4 -49.5 -88.5 4 -49.5 -88.5 8 -49.5 -85.5 5 -49.5
2 24 -88.5 4 -49.5 -85.5 4 -49.5

0 // Top
1 16 -170 8 -60 0 0 130 8 0 0 0 1 0 rect3.dat
3 16 -20 16 -70 -20 6 -70 -40 16 -60
2 24 -20 16 -70 -20 6 -70

4 16 -40 0 -40 -100 0 -40 -300 0 -60 -40 0 -60
2 24 -40 0 -40 -100 0 -40

3 16 -174 0 -6 -180 0 -6 -300 0 -60
3 16 -174 0 -6 -300 0 -60 -166 0 -6
3 16 -166 0 -6 -300 0 -60 -160 0 -6
3 16 -154 0 -6 -160 0 -6 -300 0 -60
3 16 -226 0 -6 -226 0 0 -300 0 -60
3 16 -226 0 -6 -300 0 -60 -220 0 -6
3 16 -220 0 -6 -300 0 -60 -214 0 -6
3 16 -214 0 -6 -300 0 -60 -206 0 -6
3 16 -206 0 -6 -300 0 -60 -200 0 -6
3 16 -200 0 -6 -300 0 -60 -194 0 -6
3 16 -194 0 -6 -300 0 -60 -186 0 -6
3 16 -186 0 -6 -300 0 -60 -180 0 -6
4 16 -214 0 -6 -206 0 -6 -206 0 0 -214 0 0
4 16 -194 0 -6 -186 0 -6 -186 0 0 -194 0 0
4 16 -174 0 -6 -166 0 -6 -166 0 0 -174 0 0

0 // Battery Compartment and Side Bulges
1 16 -37 -7 -38 0 -1 0 2 0 0 0 0 2 1-4ndis.dat
3 16 -37 4 -36 -37 -5 -36 -37 -5 -38
4 16 -37 16 -57.0279 -37 16 -56 -37 4 -48 -37 -5 -57.0279
4 16 -37 4 -36 -37 -5 -38 -37 -5 -57.0279 -37 4 -48
2 24 -37 -5 -36 -37 4 -36
2 24 -37 -5 -36 -37 -7 -36
2 24 -37 -5 -57.0279 -37 -5 -38
2 24 -37 -5 -57.0279 -37 16 -57.0279
3 16 -37 -5 -36 -37 4 -36 -97 -76 -36
3 16 -37 -7 -36 -37 -5 -36 -97 -76 -36
3 16 -31.6856 -5 -59.685 -37 -5 -57.0279 -37 -5 -38
2 24 -37 -5 -57.0279 -31.6856 -5 -59.685
2 24 -14.0557 16 -68.5 -14.0557 13 -68.5
4 16 -17.0557 13 -67 -14.0557 13 -68.5 -14.0557 16 -68.5 -37 16 -57.0279
3 16 -97 -76 -36 -97 -76 -23 -54 -76 -23
2 24 -54 -76 -23 -54 -54 -23
2 24 -54 -76 -23 -97 -76 -23
2 24 -97 -76 -36 -97 -76 -23

3 16 -60 -80 -20 -100 -80 -20 -100 -80 -40
4 16 -40 0 -40 -40 -8 -40 -100 -80 -40 -100 0 -40
2 24 -100 0 -40 -100 -80 -40
2 24 -100 -80 -40 -100 -80 -20

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
RainbowDolphin	Certify

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2024-05-16 10:08:02

That's the last big Trainsbase missing

Internals are coming (Battery Pack and COvers)

Marc Giraudet [Mad_Marc]

made the following comment.

2024-05-23 18:19:53

Great work. There is a groove under the plate, near the not square hole. I think this should be modeled, to avoid contact with the motor wire and connector.

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-07-21 12:51:01

Creative Commons Attribution License information
