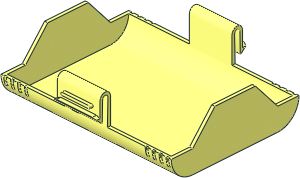

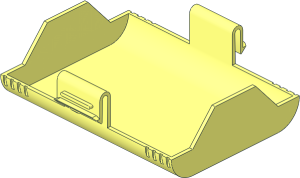

0 ~Train Base 6 x 30 Battery Cover
0 Name: 55457.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\55457s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\55457s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\55457s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\55457s01.dat
0 // Seam Outside
2 24 -80 64 -40 -80 64 40
4 16 -77.5 64 -40 -80 64 -40 -80 64 40 -77.5 64 40
4 16 -77.5 64 -40 -77.5 64 40 -75 64 40 -75 64 -40
4 16 -71 64 -40 -75 64 -40 -75 64 40 -71 64 40
4 16 -68.5 64 -40 -71 64 -40 -71 64 40 -68.5 64 40
4 16 -64.5 64 -40 -68.5 64 -40 -68.5 64 40 -64.5 64 40
4 16 -62 64 -40 -64.5 64 -40 -64.5 64 40 -62 64 40
4 16 -62 64 -40 -62 64 40 -58 64 40 -58 64 -40
4 16 -55.5 64 -40 -58 64 -40 -58 64 40 -55.5 64 40
1 16 20 44 40 0 -40 0 20 0 0 0 0 20 48\1-4cyli.dat
1 16 20 44 -40 0 -40 0 20 0 0 0 0 -20 48\1-4cyli.dat
4 16 -20 64 -40 -55.5 64 -40 -55.5 64 40 -20 64 40
4 16 -20 64 -40 -20 64 40 20 64 40 20 64 -40
4 16 55.5 64 -40 20 64 -40 20 64 40 55.5 64 40
4 16 80 64 40 80 64 -40 77.5 64 -40 77.5 64 40
4 16 75 64 40 77.5 64 40 77.5 64 -40 75 64 -40
4 16 75 64 40 75 64 -40 71 64 -40 71 64 40
4 16 71 64 40 71 64 -40 68.5 64 -40 68.5 64 40
4 16 68.5 64 40 68.5 64 -40 64.5 64 -40 64.5 64 40
4 16 64.5 64 40 64.5 64 -40 62 64 -40 62 64 40
4 16 58 64 40 62 64 40 62 64 -40 58 64 -40
4 16 58 64 40 58 64 -40 55.5 64 -40 55.5 64 40
2 24 80 64 -40 80 64 40
4 16 80 44 40 80 20 19 80 20 -19 80 44 -40
4 16 -80 20 -19 -80 20 19 -80 44 40 -80 44 -40
4 16 80 64 -40 80 64 40 80 44 40 80 44 -40
4 16 -80 44 -40 -80 44 40 -80 64 40 -80 64 -40
0 // Inside
0 BFC INVERTNEXT
1 16 -20 44 40 0 40 0 17 0 0 0 0 17 48\1-4cyli.dat
0 BFC INVERTNEXT
1 16 -20 44 -40 0 40 0 17 0 0 0 0 -17 48\1-4cyli.dat
4 16 77 61 -40 77 61 40 20 61 40 20 61 -40
4 16 -20 61 -40 20 61 -40 20 61 40 -20 61 40
4 16 -20 61 -40 -20 61 40 -77 61 40 -77 61 -40
2 24 77 61 -40 77 61 40
2 24 -77 61 -40 -77 61 40
4 16 -77 44 40 -77 20 19 -77 20 -19 -77 44 -40
4 16 77 61 40 77 61 -40 77 44 -40 77 44 40
4 16 -77 44 -40 -77 61 -40 -77 61 40 -77 44 40
4 16 77 20 -19 77 20 19 77 44 40 77 44 -40
1 16 -78.5 20 0 0 0 1.5 0 1 0 -19 0 0 rect.dat
1 16 78.5 20 0 0 0 1.5 0 1 0 -19 0 0 rect.dat
0 // Clips
1 16 0 32.5 57 0 0 20 11.5 0 0 0 1 0 rect2p.dat
4 16 -20 21 59.5 20 21 59.5 20 44 60 -20 44 60
0 BFC INVERTNEXT
1 16 -20 21 62 0 40 0 0 0 -2.5 -2.5 0 0 2-4cylo.dat
1 16 -20 21 62 0 40 0 0 0 -5 -5 0 0 2-4cylo.dat
4 16 20 38.2741 64.8013 20 21 64.5 -20 21 64.5 -20 38.2741 64.8013
1 16 20 38.2741 65.3013 0 -40 0 0 0 .5 -.5 0 0 8\3-8cylo.dat
4 16 -20 34.5 70 20 34.5 70 20 38.62765 65.65485 -20 38.62765 65.65485
4 16 20 21 67 16.842 33 67 -16.842 33 67 -20 21 67
4 16 16.842 33 71 18 33.55 71 -18 33.55 71 -16.842 33 71
4 16 -20 34.5 70 -18 33.55 71 18 33.55 71 20 34.5 70
1 16 0 33 69 16.842 0 0 0 1 0 0 0 2 rect2p.dat
2 24 18 33.55 71 -18 33.55 71
1 16 0 27.5 67 12.5 0 0 0 0 -1.25 0 3 0 box3u8p.dat
0 // Arrow
2 24 0 37.7715 66.5561 -6 34.6722 69.8187
2 24 -6 34.6722 69.8187 6 34.6722 69.8187
2 24 0 37.6696 67.7524 -3.75 35.7325 69.7915
2 24 -3.75 35.7325 69.7915 3.75 35.7325 69.7915
2 24 3.75 35.7325 69.7915 0 37.6696 67.7524
2 24 6 34.6722 69.8187 0 37.7715 66.5561
2 24 3.75 35.7325 69.7915 6 34.6722 69.8187
2 24 -6 34.6722 69.8187 -3.75 35.7325 69.7915
2 24 0 37.6696 67.7524 0 37.7715 66.5561
3 16 0 37.6696 67.7524 -3.75 35.7325 69.7915 3.75 35.7325 69.7915
4 16 0 37.7715 66.5561 0 37.6696 67.7524 3.75 35.7325 69.7915 6 34.6722 69.8187
4 16 -6 34.6722 69.8187 -3.75 35.7325 69.7915 0 37.6696 67.7524 0 37.7715 66.5561
4 16 -3.75 35.7325 69.7915 -6 34.6722 69.8187 6 34.6722 69.8187 3.75 35.7325 69.7915
0 // Clips
1 16 0 32.5 -57 0 0 20 11.5 0 0 0 -1 0 rect2p.dat
4 16 20 44 -60 20 21 -59.5 -20 21 -59.5 -20 44 -60
0 BFC INVERTNEXT
1 16 -20 21 -62 0 40 0 0 0 -2.5 2.5 0 0 2-4cylo.dat
1 16 -20 21 -62 0 40 0 0 0 -5 5 0 0 2-4cylo.dat
4 16 -20 21 -64.5 20 21 -64.5 20 38.2741 -64.8013 -20 38.2741 -64.8013
1 16 20 38.2741 -65.3013 0 -40 0 0 0 .5 .5 0 0 8\3-8cylo.dat
4 16 20 38.62765 -65.65485 20 34.5 -70 -20 34.5 -70 -20 38.62765 -65.65485
4 16 -16.842 33 -67 16.842 33 -67 20 21 -67 -20 21 -67
4 16 -18 33.55 -71 18 33.55 -71 16.842 33 -71 -16.842 33 -71
4 16 18 33.55 -71 -18 33.55 -71 -20 34.5 -70 20 34.5 -70
1 16 0 33 -69 16.842 0 0 0 1 0 0 0 -2 rect2p.dat
2 24 -18 33.55 -71 18 33.55 -71
1 16 0 27.5 -67 12.5 0 0 0 0 -1.25 0 -3 0 box3u8p.dat
0 // Arrow
2 24 -6 34.6722 -69.8187 0 37.7715 -66.5561
2 24 6 34.6722 -69.8187 -6 34.6722 -69.8187
2 24 -3.75 35.7325 -69.7915 0 37.6696 -67.7524
2 24 3.75 35.7325 -69.7915 -3.75 35.7325 -69.7915
2 24 0 37.6696 -67.7524 3.75 35.7325 -69.7915
2 24 0 37.7715 -66.5561 6 34.6722 -69.8187
2 24 6 34.6722 -69.8187 3.75 35.7325 -69.7915
2 24 -3.75 35.7325 -69.7915 -6 34.6722 -69.8187
2 24 0 37.7715 -66.5561 0 37.6696 -67.7524
3 16 -3.75 35.7325 -69.7915 0 37.6696 -67.7524 3.75 35.7325 -69.7915
4 16 3.75 35.7325 -69.7915 0 37.6696 -67.7524 0 37.7715 -66.5561 6 34.6722 -69.8187
4 16 0 37.6696 -67.7524 -3.75 35.7325 -69.7915 -6 34.6722 -69.8187 0 37.7715 -66.5561
4 16 6 34.6722 -69.8187 -6 34.6722 -69.8187 -3.75 35.7325 -69.7915 3.75 35.7325 -69.7915
