Unofficial File parts/87079p0n.dat

Part Attributes: Base Part: 87079.dat

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

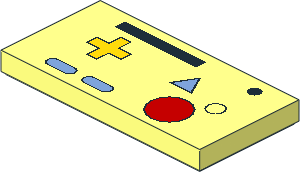

Tile 2 x 4 with Black Rectangle and Circle, Medium Blue Minus Signs and Triangle, Red Circle and Yellow Plus Sign Pattern

File Header:

0 Tile  2 x  4 with Black Rectangle and Circle, Medium Blue Minus Signs and Triangle, Red Circle and Yellow Plus Sign Pattern
0 Name: 87079p0n.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Adventure Time, BMO, Bricklink 87079pb0345, Brickowl 163293
0 !KEYWORDS Brickset 27278, Dimensions, Game Pad, Rebrickable 87079pr0094
0 !KEYWORDS Set 71246

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\87079s01.dat
1 0 27.8 0 14.4 2.25 0 0 0 1 0 0 0 2.25 4-4disc.dat
1 0 26.85 0 -.4 .6 0 0 0 1 0 0 0 .6 4-4ring5.dat
1 0 -24.8 0 -14.3 0 0 -.6 0 1 0 .6 0 0 2-4ring3.dat
1 0 -18 0 -14.3 0 0 .6 0 1 0 -.6 0 0 2-4ring3.dat
1 0 -10.15 0 -14.3 0 0 -.6 0 1 0 .6 0 0 2-4ring3.dat
1 0 -3.45 0 -14.3 0 0 .6 0 1 0 -.6 0 0 2-4ring3.dat
1 4 17.8 0 -10 6.9 0 0 0 1 0 0 0 6.9 4-4disc.dat
1 0 17.8 0 -10 .3 0 0 0 1 0 0 0 .3 4-4ring23.dat
1 0 17.8 0 -10 .3 0 0 0 1 0 0 0 .3 4-4ring24.dat
1 16 27.8 0 14.4 2.25 0 0 0 1 0 0 0 2.25 4-4ndis.dat
1 16 26.85 0 -.4 3 0 0 0 1 0 0 0 3 4-4disc.dat
1 16 26.85 0 -.4 3.6 0 0 0 1 0 0 0 3.6 4-4ndis.dat
1 16 17.8 0 -10 0 0 -7.5 0 1 0 7.5 0 0 3-4ndis.dat
1 16 17.8 0 -10 0 0 7.5 0 1 0 7.5 0 0 1-8tndis.dat
1 16 -24.8 0 -14.3 0 0 -2.4 0 1 0 2.4 0 0 2-4ndis.dat
1 16 -18 0 -14.3 0 0 2.4 0 1 0 -2.4 0 0 2-4ndis.dat
1 16 -3.45 0 -14.3 0 0 2.4 0 1 0 -2.4 0 0 2-4ndis.dat
1 16 -10.15 0 -14.3 0 0 -2.4 0 1 0 2.4 0 0 2-4ndis.dat
1 16 17.8 0 -10 7.5 0 0 0 1 0 0 0 7.51 1-8tndis.dat
1 73 -10.15 0 -14.3 0 0 -1.8 0 1 0 1.8 0 0 2-4chrd.dat
1 73 -3.45 0 -14.3 0 0 1.8 0 1 0 -1.8 0 0 2-4chrd.dat
1 73 -24.8 0 -14.3 0 0 -1.8 0 1 0 1.8 0 0 2-4chrd.dat
1 73 -18 0 -14.3 0 0 1.8 0 1 0 -1.8 0 0 2-4chrd.dat
3 16 40 0 20 30.05 0 16.65 30.05 0 14.4
3 16 40 0 20 27.8 0 16.65 30.05 0 16.65
3 16 40 0 20 25.55 0 16.65 27.8 0 16.65
4 16 6.3 0 12.3 25.55 0 14.4 25.55 0 16.65 6.3 0 16.5
3 16 30.45 0 -.4 30.45 0 -4 40 0 -20
4 16 27.8 0 12.15 26.85 0 3.2 30.45 0 3.2 30.05 0 12.15
3 16 -27.2 0 -14.3 -40 0 -20 -27.2 0 -16.7
3 16 -27.2 0 -11.9 -40 0 -20 -27.2 0 -14.3
3 16 -24.8 0 -16.7 -27.2 0 -16.7 -40 0 -20
3 16 -18 0 -16.7 -24.8 0 -16.7 -40 0 -20
4 16 -10 0 -20 -12.55 0 -16.7 -15.6 0 -16.7 -40 0 -20
3 16 -10.15 0 -16.7 -12.55 0 -16.7 -10 0 -20
3 16 -3.45 0 -16.7 -10.15 0 -16.7 -10 0 -20
4 16 40 0 -20 25.3 0 -17.5 17.8 0 -17.5 -10 0 -20
4 16 -40 0 -20 -26.2 0 4.75 -26.5 0 12.3 -40 0 20
4 16 -26.2 0 .25 -27.2 0 -11.9 -24.8 0 -11.9 -21.35 0 -4.6
4 16 -16.8 0 -4.6 -18 0 -11.9 -15.6 0 -11.9 -11.95 0 .25
4 16 -12.55 0 -11.9 -11.95 0 .25 -15.6 0 -11.9 -15.6 0 -14.3
3 16 -11.95 0 .25 -12.55 0 -11.9 -10.15 0 -11.9
3 16 -11.95 0 .25 -10.15 0 -11.9 -3.45 0 -11.9
4 16 7.15 0 .75 10.3 0 -2.5 17.8 0 -2.5 15.55 0 .75
3 16 25.55 0 12.15 11.65 0 8.95 23.25 0 3.2
4 16 11.35 0 8.95 11.65 0 8.95 25.55 0 12.15 6.3 0 12.3
3 16 6.3 0 12.3 11.05 0 8.95 11.35 0 8.95
3 16 6.3 0 12.3 6.85 0 1.35 11.05 0 8.95
4 16 10.3 0 -2.5 7.15 0 .75 6.85 0 .75 -1.05 0 -11.9
3 16 6.85 0 1.05 -1.05 0 -11.9 6.85 0 .75
4 16 6.85 0 1.05 6.85 0 1.35 6.3 0 12.3 -1.05 0 -11.9
4 16 15.85 0 .75 15.55 0 .75 17.8 0 -2.5 23.25 0 -.4
3 16 23.25 0 -.4 17.8 0 -2.5 23.1033 0 -2.5
4 16 23.25 0 -4 23.1033 0 -4.6897 25.3 0 -4.6897 26.85 0 -4
4 16 26.85 0 -4 25.3 0 -4.6897 25.3 0 -10 40 0 -20
3 16 25.3 0 -10 25.3 0 -17.5 40 0 -20
3 73 11.35 0 8.05 7.7 0 1.35 15 0 1.35
1 16 7.15 0 1.05 0 0 -.3 0 1 0 -.3 0 0 3-8ndis.dat
1 16 15.55 0 1.05 0 0 .3 0 1 0 -.3 0 0 3-8ndis.dat
1 0 7.15 0 1.05 0 0 -.3 0 1 0 -.3 0 0 3-8chrd.dat
1 0 15.55 0 1.05 0 0 .3 0 1 0 -.3 0 0 3-8chrd.dat
1 16 11.35 0 8.65 0 0 -.3 0 1 0 .3 0 0 1-8ndis.dat
1 16 11.35 0 8.65 0 0 .3 0 1 0 .3 0 0 1-8ndis.dat
1 0 11.35 0 8.65 0 0 -.3 0 1 0 .3 0 0 1-8chrd.dat
1 0 11.35 0 8.65 0 0 .3 0 1 0 .3 0 0 1-8chrd.dat
4 0 6.3 0 16.5 -26.5 0 16.5 -26.5 0 12.3 6.3 0 12.3
4 0 -18 0 -11.9 -24.8 0 -11.9 -24.8 0 -12.5 -18 0 -12.5
4 0 -18 0 -16.1 -24.8 0 -16.1 -24.8 0 -16.7 -18 0 -16.7
4 0 -3.45 0 -11.9 -10.15 0 -11.9 -10.15 0 -12.5 -3.45 0 -12.5
4 0 -3.45 0 -16.1 -10.15 0 -16.1 -10.15 0 -16.7 -3.45 0 -16.7
4 0 -26.2 0 4.75 -26.2 0 .25 -25.6 0 .85 -25.6 0 4.15
4 0 -26.2 0 4.75 -25.6 0 4.15 -20.75 0 4.15 -21.35 0 4.75
4 0 -25.6 0 .85 -26.2 0 .25 -21.35 0 .25 -20.75 0 .85
4 0 -21.35 0 9.6 -21.35 0 4.75 -20.75 0 4.15 -20.75 0 9
4 0 -21.35 0 .25 -21.35 0 -4.6 -20.75 0 -4 -20.75 0 .85
4 0 -12.55 0 .85 -11.95 0 .25 -11.95 0 4.75 -12.55 0 4.15
4 0 -17.4 0 4.15 -12.55 0 4.15 -11.95 0 4.75 -16.8 0 4.75
4 0 -16.8 0 .25 -11.95 0 .25 -12.55 0 .85 -17.4 0 .85
4 0 -17.4 0 4.15 -16.8 0 4.75 -16.8 0 9.6 -17.4 0 9
4 0 -17.4 0 -4 -16.8 0 -4.6 -16.8 0 .25 -17.4 0 .85
4 0 -21.35 0 9.6 -20.75 0 9 -17.4 0 9 -16.8 0 9.6
4 0 -20.75 0 -4 -21.35 0 -4.6 -16.8 0 -4.6 -17.4 0 -4
4 14 -20.75 0 4.15 -25.6 0 4.15 -25.6 0 .85 -20.75 0 .85
4 14 -12.55 0 .85 -12.55 0 4.15 -17.4 0 4.15 -17.4 0 .85
4 14 -17.4 0 9 -20.75 0 9 -20.75 0 4.15 -17.4 0 4.15
4 14 -17.4 0 4.15 -20.75 0 4.15 -20.75 0 .85 -17.4 0 .85
4 14 -17.4 0 .85 -20.75 0 .85 -20.75 0 -4 -17.4 0 -4
4 16 40 0 20 30.05 0 14.4 30.05 0 12.15 40 0 -20
4 16 -40 0 20 -26.5 0 16.5 6.3 0 16.5 40 0 20
3 16 40 0 20 6.3 0 16.5 25.55 0 16.65
3 16 25.55 0 14.4 6.3 0 12.3 25.55 0 12.15
3 16 -40 0 20 -26.5 0 12.3 -26.5 0 16.5
4 16 25.55 0 12.15 23.25 0 3.2 26.85 0 3.2 27.8 0 12.15
4 16 -12.55 0 -14.3 -12.55 0 -11.9 -15.6 0 -14.3 -15.6 0 -16.7
3 16 -12.55 0 -14.3 -15.6 0 -16.7 -12.55 0 -16.7
3 16 -18 0 -16.7 -40 0 -20 -15.6 0 -16.7
4 16 -1.05 0 -16.7 -3.45 0 -16.7 -10 0 -20 10.3 0 -17.5
4 16 -1.05 0 -14.3 -1.05 0 -16.7 10.3 0 -17.5 10.3 0 -10
4 16 -1.05 0 -11.9 -1.05 0 -14.3 10.3 0 -10 10.3 0 -2.5
3 16 10.3 0 -17.5 -10 0 -20 17.8 0 -17.5
4 16 -26.2 0 4.75 -21.35 0 4.75 -21.35 0 9.6 -26.5 0 12.3
4 16 -26.5 0 12.3 -21.35 0 9.6 -16.8 0 9.6 6.3 0 12.3
4 16 -16.8 0 9.6 -16.8 0 4.75 -11.95 0 4.75 6.3 0 12.3
3 16 -21.35 0 .25 -26.2 0 .25 -21.35 0 -4.6
3 16 -11.95 0 .25 -16.8 0 .25 -16.8 0 -4.6
4 16 -40 0 -20 -27.2 0 -11.9 -26.2 0 .25 -26.2 0 4.75
4 16 -21.35 0 -4.6 -24.8 0 -11.9 -18 0 -11.9 -16.8 0 -4.6
4 16 -11.95 0 .25 -3.45 0 -11.9 -1.05 0 -11.9 -11.95 0 4.75
3 16 6.3 0 12.3 -11.95 0 4.75 -1.05 0 -11.9
4 16 23.25 0 3.2 11.65 0 8.95 15.85 0 1.35 23.25 0 -.4
3 16 15.85 0 1.05 15.85 0 .75 23.25 0 -.4
3 16 15.85 0 1.35 15.85 0 1.05 23.25 0 -.4
4 16 23.1033 0 -4.6897 23.25 0 -4 23.25 0 -.4 23.1033 0 -2.5
3 16 30.45 0 -4 26.85 0 -4 40 0 -20
4 73 -24.8 0 -12.5 -24.8 0 -16.1 -18 0 -16.1 -18 0 -12.5
4 73 -10.15 0 -12.5 -10.15 0 -16.1 -3.45 0 -16.1 -3.45 0 -12.5
3 16 30.45 0 3.2 30.45 0 -.4 40 0 -20
3 16 30.05 0 12.15 30.45 0 3.2 40 0 -20
4 16 11.138 0 8.862 11.05 0 8.95 6.85 0 1.35 6.938 0 1.262
4 16 11.562 0 8.862 15.762 0 1.262 15.85 0 1.35 11.65 0 8.95
4 0 15.55 0 .75 7.7 0 1.35 6.938 0 1.262 7.15 0 .75
4 0 15.762 0 1.262 15 0 1.35 7.7 0 1.35 15.55 0 .75
4 0 11.35 0 8.05 15 0 1.35 15.762 0 1.262 11.562 0 8.862
4 0 11.138 0 8.862 11.35 0 8.05 11.562 0 8.862 11.35 0 8.95
4 0 6.938 0 1.262 7.7 0 1.35 11.35 0 8.05 11.138 0 8.862

Status:

Needs 2 More Votes (N)

Current Votes:

None

Official parents and subparts

Part Events:

Evert-Jan Boer [ejboer]

initially submitted the part.

2024-05-20 18:17:39

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-05-21 14:44:32

Gerald Lasser [GeraldLasser]

posted a vote of Hold.

2024-07-17 10:25:41

due to the rounding some vertices don't match the prims

Run unificater with "0.01" tolerance and "snap to subpart vertices" this will eliminate all of them
Check with edger
-> currently creates 54 lines should go down to 2 afterwards

Rene Rechthaler [Blechtaler]

made the following comment.

2024-07-17 15:30:42

why even rotated prims? maybe use unrotated 1-8tndis?
the medium blue minus signs could save some vertexes by using 2-4chrd.
is the yellow plus asymmetric? the right arm seems to be shorter...

Evert-Jan Boer [ejboer]

submitted a new version of the part.

2024-09-24 10:15:56

yellow + now symmetrical, changed some prims (and learned some new prims)

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-05-05 20:57:40

Chris Böhnke [KnightOfTarenta]

posted a vote of Hold.

2025-05-20 13:36:16

*Outline of uncoloured button looks too thin
*Thickness of the black lines should be more even - ideally all lines on this should have the same thickness (0.7 or 0.8 LDU, whichever looks more "right")
*Is it possible to use 1-12 prims for the round edges of the triangle?

Chris Böhnke [KnightOfTarenta]

edited the part header.

2025-05-20 13:37:48

Header Edits

keywords:
BMO, Bricklink 87079pb0345, Rebrickable 87079pr0094, Set 71246
to
BMO, Set 71246, Dimensions, Adventure Time, Game Pad, Bricklink 87079pb0345, Rebrickable 87079pr0094

Evert-Jan Boer [ejboer]

submitted a new version of the part.

2026-01-24 17:51:21

Made the outlines more uniform, used prims for triangle corners

Magnus Forsberg [MagFors]

posted a vote of Hold.

2026-01-24 17:56:23

BFC errors

Evert-Jan Boer [ejboer]

submitted a new version of the part.

2026-01-24 21:02:42

Ah, the pattern creator bug.. corrected

Magnus Forsberg [MagFors]

made the following comment.

2026-01-24 21:20:29

Using 3-8 prims on the triangle corners is not good. Might work better with 5-16.
The 3-8 will create a curve in hi-res mode that doesnt match the triangle side

Rene Rechthaler [Blechtaler]

made the following comment.

2026-01-24 21:36:39

1 16 17.8 0 -10 7.5 0 0 0 1 0 0 0 7.51 1-8tndis.dat (one side is .01 more, causing microgap)
also there and at the triangle, scaling partial prims with decimals means the connecting faces connecting it could need 5 decimals, they have microgaps now, but you have to scroll very far in)

Philippe Hurbain [Philo]

made the following comment.

2026-01-25 13:31:15

Using prims in teeny pattern is generally pure overkill!
