File Detail parts/u9542.dat

Unofficial File parts/u9542.dat

Part Attributes:

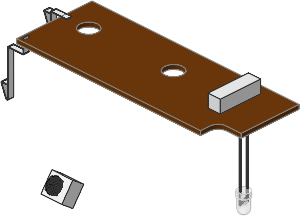

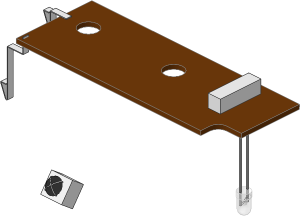

~Train Base 6 x 30 with IR Receivers and Battery Compartment - Electronics

File Header:

0 ~Train Base  6 x 30 with IR Receivers and Battery Compartment - Electronics
0 Name: u9542.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Component - Push-Button On
1 72 -20 1. 60 4 0 0 0 0 -2.25 0 5 0 box5.dat

0 // Component - IR LED and Angle
0 // ANGLE: 54.4622
1 494 0 .1625 -63.3725 1 0 0 0 .58124 -.81373 0 .81373 .58124 u9245.dat
1 494 0 .1625 63.3725 1 0 0 0 .58124 -.81373 0 -.81373 -.58124 u9245.dat

0 // Component - IR Channel Selector Base
1 494 70 -54 0 -4.5 0 0 0 -9 0 0 0 15 box5.dat

0 // Components - LED
1 47 88.5 -12 -11.5 0 0 1 0 -1 0 1 0 0 u9250.dat
1 494 88.5 -12 -8.9 -.4 0 0 0 -39 0 0 0 .4 box4.dat
1 494 88.5 -12 -14.1 -.4 0 0 0 -39 0 0 0 .4 box4.dat

0 // Connector Short
1 494 -64 -54.25 0 0 11.5 0 -.25 0 0 0 0 -2 box5-4a.dat
2 24 -64 -54 -2 -64 -54 2
1 494 -64 -54 2 -.5 0 0 0 0 -.5 0 -4 0 1-4cylc.dat
1 494 -64 -54 -2 -.5 0 0 0 0 -.5 0 1 0 1-4disc.dat

1 494 -64.25 -44.5 0 -.25 0 0 0 -9.5 0 0 0 2 box4o8a.dat
0 BFC INVERTNEXT
1 494 -65 -44.5 2 .5 0 0 0 0 .5 0 -4 0 7-16cylo.dat
1 494 -65 -44.5 2 1 0 0 0 0 1 0 -4 0 7-16cylo.dat
1 494 -65 -44.5 2 .5 0 0 0 0 .5 0 -1 0 7-16rin1.dat
1 494 -65 -44.5 -2 .5 0 0 0 0 .5 0 1 0 7-16rin1.dat
1 494 -65.6929 -44.213 0 -.23097 -3.44415 0 .09567 -8.31492 0 0 0 2 box4o8a.dat
1 494 -68.9061 -52.6236 2 -.46194 0 -.19134 .19134 0 -.46194 0 -4 0 5-16cylo.dat
1 494 -68.9061 -52.6236 -2 -.46194 0 -.19134 .19134 0 -.46194 0 1 0 5-16disc.dat
1 494 -68.9061 -52.6236 2 -.46194 0 -.19134 .19134 0 -.46194 0 -1 0 5-16disc.dat
1 494 -68.9062 -52.8735 0 0 3.5 0 -.25 0 0 0 0 2 box5-4a.dat
2 24 -68.9061 -52.6236 2 -68.9061 -52.6236 -2

0 // Connector Long
1 494 -54 -45 -30.5 -.25 0 0 0 -10 0 0 0 -2 box5-4a.dat
2 24 -54.25 -45 -32.5 -54.25 -45 -28.5
1 494 -54.25 -45 -28.5 .5 0 0 0 0 .5 0 -4 0 1-4cylc.dat
1 494 -54.25 -45 -32.5 .5 0 0 0 0 .5 0 1 0 1-4disc.dat

1 494 -54.25 -44.75 -30.5 0 -11 0 -.25 0 0 0 0 -2 box4o8a.dat
2 24 -65.25 -44.5 -32.5 -65.25 -44.5 -28.5
1 494 -65.25 -44.5 -28.5 -.5 0 0 0 0 -.5 0 -4 0 1-4cylc.dat
1 494 -65.25 -44.5 -32.5 -.5 0 0 0 0 -.5 0 1 0 1-4disc.dat

1 494 -65.5 -13.25 -30.5 -.25 0 0 0 -31.25 0 0 0 2 box4o8a.dat
0 BFC INVERTNEXT
1 494 -66.25 -13.25 -28.5 .5 0 0 0 0 .5 0 -4 0 7-16cylo.dat
1 494 -66.25 -13.25 -28.5 1 0 0 0 0 1 0 -4 0 7-16cylo.dat
1 494 -66.25 -13.25 -28.5 .5 0 0 0 0 .5 0 -1 0 7-16rin1.dat
1 494 -66.25 -13.25 -32.5 .5 0 0 0 0 .5 0 1 0 7-16rin1.dat
1 494 -66.9429 -12.963 -30.5 -.23097 -3.44415 0 .09567 -8.31492 0 0 0 2 box4o8a.dat
1 494 -70.1561 -21.3736 -28.5 -.46194 0 -.19134 .19134 0 -.46194 0 -4 0 5-16cylo.dat
1 494 -70.1561 -21.3736 -32.5 -.46194 0 -.19134 .19134 0 -.46194 0 1 0 5-16disc.dat
1 494 -70.1561 -21.3736 -28.5 -.46194 0 -.19134 .19134 0 -.46194 0 -1 0 5-16disc.dat
1 494 -70.1562 -21.6235 -30.5 0 3.5 0 -.25 0 0 0 0 2 box5-4a.dat
2 24 -70.1561 -21.3736 -28.5 -70.1561 -21.3736 -32.5

0 // PCB
0 BFC INVERTNEXT
1 70 85.5 -51 -27.5 -6 0 0 0 -3 0 0 0 6 1-4cylo.dat
1 70 91 -52.5 -21.5 5.5 0 0 0 0 -1.5 0 1 0 rect2p.dat
1 70 79.5 -52.5 -31 0 -1 0 -1.5 0 0 0 0 -3.5 rect3.dat
1 70 19.75 -52.5 0 0 76.75 0 -1.5 0 0 0 0 21.5 box2-5.dat
1 70 11.25 -52.5 -6.5 0 -68.25 0 -1.5 0 0 0 0 -28 box2-7.dat

0 // Holes
0 BFC INVERTNEXT
1 70 25 -51 0 -6.5 0 0 0 -3 0 0 0 6.5 4-4cylo.dat
0 BFC INVERTNEXT
1 70 -38 -51 0 -6.5 0 0 0 -3 0 0 0 6.5 4-4cylo.dat
1 70 25 -51 0 -6.5 0 0 0 -1 0 0 0 6.5 4-4ndis.dat
1 70 -38 -51 0 -6.5 0 0 0 -1 0 0 0 6.5 4-4ndis.dat
1 70 25 -54 0 -6.5 0 0 0 1 0 0 0 6.5 4-4ndis.dat
1 70 -38 -54 0 -6.5 0 0 0 1 0 0 0 6.5 4-4ndis.dat

0 // Bottom
1 70 85.5 -54 -27.5 -6 0 0 0 1 0 0 0 6 1-4ndis.dat
3 70 79.5 -54 -34.5 79.5 -54 -27.5 -57 -54 -34.5
4 70 79.5 -54 -27.5 79.5 -54 -21.5 31.5 -54 -6.5 -57 -54 -34.5
3 70 -57 -54 -34.5 31.5 -54 -6.5 25 -54 -6.5
3 70 -57 -54 -34.5 25 -54 -6.5 18.5 -54 -6.5
3 70 -57 -54 -34.5 18.5 -54 -6.5 -31.5 -54 -6.5
3 70 -57 -54 -34.5 -31.5 -54 -6.5 -38 -54 -6.5
3 70 -57 -54 -34.5 -38 -54 -6.5 -44.5 -54 -6.5
3 70 -44.5 -54 -6.5 -44.5 -54 0 -57 -54 -34.5
4 70 -44.5 -54 6.5 -57 -54 21.5 -57 -54 -34.5 -44.5 -54 0
3 70 -57 -54 21.5 -44.5 -54 6.5 -38 -54 6.5
4 70 96.5 -54 21.5 -57 -54 21.5 -38 -54 6.5 -31.5 -54 6.5
4 70 -31.5 -54 -6.5 18.5 -54 -6.5 18.5 -54 0 -31.5 -54 0
4 70 -31.5 -54 6.5 -31.5 -54 0 18.5 -54 0 18.5 -54 6.5
3 70 85.5 -54 -21.5 96.5 -54 -21.5 96.5 -54 21.5
3 70 85.5 -54 -21.5 96.5 -54 21.5 79.5 -54 -21.5
4 70 31.5 -54 0 31.5 -54 -6.5 79.5 -54 -21.5 96.5 -54 21.5
3 70 31.5 -54 0 96.5 -54 21.5 31.5 -54 6.5
3 70 31.5 -54 6.5 96.5 -54 21.5 25 -54 6.5
3 70 25 -54 6.5 96.5 -54 21.5 18.5 -54 6.5
3 70 18.5 -54 6.5 96.5 -54 21.5 -31.5 -54 6.5

0 // Top
1 70 85.5 -51 -27.5 -6 0 0 0 -1 0 0 0 6 1-4ndis.dat
3 70 79.5 -51 -27.5 79.5 -51 -34.5 -57 -51 -34.5
4 70 31.5 -51 -6.5 79.5 -51 -21.5 79.5 -51 -27.5 -57 -51 -34.5
3 70 31.5 -51 -6.5 -57 -51 -34.5 25 -51 -6.5
3 70 25 -51 -6.5 -57 -51 -34.5 18.5 -51 -6.5
3 70 18.5 -51 -6.5 -57 -51 -34.5 -31.5 -51 -6.5
3 70 -31.5 -51 -6.5 -57 -51 -34.5 -38 -51 -6.5
3 70 -38 -51 -6.5 -57 -51 -34.5 -44.5 -51 -6.5
3 70 -44.5 -51 0 -44.5 -51 -6.5 -57 -51 -34.5
4 70 -57 -51 -34.5 -57 -51 21.5 -44.5 -51 6.5 -44.5 -51 0
3 70 -44.5 -51 6.5 -57 -51 21.5 -38 -51 6.5
4 70 -38 -51 6.5 -57 -51 21.5 96.5 -51 21.5 -31.5 -51 6.5
4 70 18.5 -51 0 18.5 -51 -6.5 -31.5 -51 -6.5 -31.5 -51 0
4 70 18.5 -51 0 -31.5 -51 0 -31.5 -51 6.5 18.5 -51 6.5
3 70 96.5 -51 -21.5 85.5 -51 -21.5 96.5 -51 21.5
3 70 96.5 -51 21.5 85.5 -51 -21.5 79.5 -51 -21.5
4 70 79.5 -51 -21.5 31.5 -51 -6.5 31.5 -51 0 96.5 -51 21.5
3 70 96.5 -51 21.5 31.5 -51 0 31.5 -51 6.5
3 70 96.5 -51 21.5 31.5 -51 6.5 25 -51 6.5
3 70 96.5 -51 21.5 25 -51 6.5 18.5 -51 6.5
3 70 96.5 -51 21.5 18.5 -51 6.5 -31.5 -51 6.5

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker
