Unofficial File parts/u9572.dat
Part Attributes:
File Header:

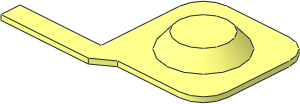

0 ~Electric Battery Contact Positive
0 Name: u9572.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 1 0 5 0 0 0 -1 0 0 0 5 4-4disc.dat
1 16 0 1 0 5 0 0 0 -1 0 0 0 5 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 4 0 2.5 0 0 0 -3 0 0 0 2.5 4-4con2.dat
1 16 0 4 0 7.5 0 0 0 -1 0 0 0 7.5 4-4edge.dat
1 16 0 3 0 -7.5 0 0 0 1 0 0 0 -7.5 4-4ndis.dat
1 16 0 4 0 -7.5 0 0 0 -1 0 0 0 -7.5 4-4ndis.dat
1 16 0 0 0 5 0 0 0 1 0 0 0 5 4-4disc.dat
1 16 0 0 0 5 0 0 0 1 0 0 0 5 4-4edge.dat
1 16 0 3 0 2.5 0 0 0 -3 0 0 0 2.5 4-4con2.dat
1 16 0 3 0 7.5 0 0 0 1 0 0 0 7.5 4-4edge.dat
1 16 6.5 3 6.5 5 0 0 0 1 0 0 0 5 1-4cylo.dat
1 16 6.5 3 -6.5 5 0 0 0 1 0 0 0 -5 1-4cylo.dat
1 16 -6.5 3 6.5 -5 0 0 0 1 0 0 0 5 1-4cylo.dat
1 16 6.5 3 6.5 5 0 0 0 1 0 0 0 5 1-4chrd.dat
1 16 6.5 3 -6.5 5 0 0 0 1 0 0 0 -5 1-4chrd.dat
1 16 -6.5 3 6.5 -5 0 0 0 1 0 0 0 5 1-4chrd.dat
1 16 6.5 4 6.5 5 0 0 0 -1 0 0 0 5 1-4chrd.dat
1 16 6.5 4 -6.5 5 0 0 0 -1 0 0 0 -5 1-4chrd.dat
1 16 -6.5 4 6.5 -5 0 0 0 -1 0 0 0 5 1-4chrd.dat
2 24 -11.5 3 -10 -28.5 3 -10
2 24 -10.1629 3 -14 -28.5 3 -14
4 16 -11.5 3 -10 -28.5 3 -10 -28.5 3 -14 -10.1629 3 -14
4 16 -28.5 4 -14 -28.5 4 -10 -11.5 4 -10 -10.1629 4 -14
4 16 -28.5 3 -10 -11.5 3 -10 -11.5 4 -10 -28.5 4 -10
4 16 -10.1629 4 -14 -10.1629 3 -14 -28.5 3 -14 -28.5 4 -14
2 24 -10.1629 4 -14 -28.5 4 -14
2 24 -28.5 4 -10 -11.5 4 -10
2 24 -11.5 3 -10 -11.5 4 -10
2 24 -10.1629 3 -14 -10.1629 4 -14
4 16 -11.5 3 -10 -11.5 3 6.5 -11.5 4 6.5 -11.5 4 -10
4 16 -6.5 3 11.5 6.5 3 11.5 6.5 4 11.5 -6.5 4 11.5
4 16 11.5 4 6.5 11.5 3 6.5 11.5 3 -6.5 11.5 4 -6.5
4 16 6.5 4 -11.5 6.5 3 -11.5 -6.5 3 -11.5 -6.5 4 -11.5
4 16 6.5 3 11.5 -6.5 3 11.5 -7.5 3 7.5 7.5 3 7.5
4 16 11.5 3 -6.5 11.5 3 6.5 7.5 3 7.5 7.5 3 -7.5
4 16 -6.5 3 -11.5 6.5 3 -11.5 7.5 3 -7.5 -7.5 3 -7.5
4 16 -11.5 3 -10 -7.5 3 -7.5 -7.5 3 7.5 -11.5 3 6.5
3 16 -7.5 3 7.5 -6.5 3 11.5 -11.5 3 6.5
3 16 6.5 3 11.5 7.5 3 7.5 11.5 3 6.5
3 16 11.5 3 -6.5 7.5 3 -7.5 6.5 3 -11.5
3 16 -11.5 3 -10 -6.5 3 -11.5 -7.5 3 -7.5
4 16 -6.5 4 -11.5 -6.5 3 -11.5 -10.1629 3 -14 -10.1629 4 -14
3 16 -10.1629 3 -14 -6.5 3 -11.5 -11.5 3 -10
4 16 -28.5 4 -14 -28.5 3 -14 -28.5 3 -10 -28.5 4 -10
2 24 -28.5 3 -10 -28.5 4 -10
2 24 -28.5 3 -10 -28.5 3 -14
2 24 -28.5 3 -14 -28.5 4 -14
2 24 -28.5 4 -10 -28.5 4 -14
4 16 -7.5 4 7.5 -6.5 4 11.5 6.5 4 11.5 7.5 4 7.5
4 16 7.5 4 7.5 11.5 4 6.5 11.5 4 -6.5 7.5 4 -7.5
4 16 7.5 4 -7.5 6.5 4 -11.5 -6.5 4 -11.5 -7.5 4 -7.5
4 16 -7.5 4 7.5 -7.5 4 -7.5 -11.5 4 -10 -11.5 4 6.5
3 16 -6.5 4 11.5 -7.5 4 7.5 -11.5 4 6.5
3 16 7.5 4 7.5 6.5 4 11.5 11.5 4 6.5
3 16 7.5 4 -7.5 11.5 4 -6.5 6.5 4 -11.5
3 16 -6.5 4 -11.5 -11.5 4 -10 -7.5 4 -7.5
2 24 6.5 3 11.5 -6.5 3 11.5
2 24 6.5 4 11.5 -6.5 4 11.5
2 24 11.5 3 6.5 11.5 3 -6.5
2 24 11.5 4 -6.5 11.5 4 6.5
2 24 6.5 3 -11.5 -6.5 3 -11.5
2 24 -6.5 3 -11.5 -6.5 4 -11.5
2 24 -6.5 4 -11.5 -10.1629 4 -14
2 24 -6.5 3 -11.5 -10.1629 3 -14
2 24 6.5 4 -11.5 -6.5 4 -11.5
2 24 -11.5 3 -10 -11.5 3 6.5
2 24 -11.5 4 -10 -11.5 4 6.5
3 16 -10.1629 4 -14 -11.5 4 -10 -6.5 4 -11.5
Status:
Needs More Votes (N)
Current Votes:
None
Official parents and subparts
Part Events:
2024-05-23 13:53:23
