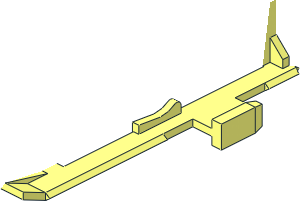

Unofficial File parts/s/32306k02s01.dat
File Header:
0 ~Technic Wheel Holder 9 x 3 - 7 x 2 Section with Wheel Cutout - Half
0 Name: s\32306k02s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Hinge X Axis
1 16 18.5 0 0 -2.8284 0 0 0 1 -2.1213 0 0 -2.8284 1-8edge.dat
0 BFC INVERTNEXT
1 16 18.5 0 0 0 0 -2.8284 0 2.12134 0 2.8284 0 0 1-8cyls2.dat
1 16 18.5 0 0 -2.8284 0 0 0 1 2.1213 0 0 -2.8284 1-8edge.dat
0 BFC INVERTNEXT
1 16 18.5 0 0 0 0 -2.8284 0 -2.12134 0 2.8284 0 0 1-8cyls2.dat
1 16 18.5 0 0 -2.8284 0 0 0 1 -2.1213 0 0 -2.8284 1-8tndis.dat
1 16 18.5 0 0 -2.8284 0 0 0 -1 2.1213 0 0 -2.8284 1-8tndis.dat
2 24 16.5 1.5 -2 15.6716 1.5 -2
2 24 15.6716 -1.5 -2 16.5 -1.5 -2
0 // Hinge Z Axis
1 16 18.5 0 0 0 0 -2.8284 0 1 -2.1213 -2.8284 0 0 1-8edge.dat
0 BFC INVERTNEXT
1 16 18.5 0 0 2.8284 0 0 0 2.12134 0 0 0 -2.8284 1-8cyls2.dat
1 16 18.5 0 0 0 0 -2.8284 0 1 2.1213 -2.8284 0 0 1-8edge.dat
0 BFC INVERTNEXT
1 16 18.5 0 0 2.8284 0 0 0 -2.12134 0 0 0 -2.8284 1-8cyls2.dat
1 16 18.5 0 0 0 0 -2.8284 0 1 -2.1213 -2.8284 0 0 1-8tndis.dat
1 16 18.5 0 0 0 0 -2.8284 0 -1 2.1213 -2.8284 0 0 1-8tndis.dat
4 16 18.5 0 -17 16.5 1.5 -17 16.5 1.5 -2.8284 18.5 0 -2.8284
4 16 16.5 -1.5 -2.8284 16.5 -1.5 -17 18.5 0 -17 18.5 0 -2.8284
3 16 16.5 -1.5 -17 16.5 1.5 -17 18.5 0 -17
2 24 16.5 -1.5 -2.8284 16.5 -1.5 -2
2 24 16.5 -1.5 -2.8284 16.5 -1.5 -17
2 24 16.5 -1.5 -17 18.5 0 -17
2 24 18.5 0 -17 18.5 0 -2.8284
2 24 16.5 1.5 -2.8284 16.5 1.5 -2
2 24 16.5 1.5 -2.8284 16.5 1.5 -17
2 24 16.5 1.5 -17 18.5 0 -17
1 16 16.5 0 -24 0 -1 0 0 0 1.5 -7 0 0 rect.dat
1 16 16.5 0 -58 0 -1 0 -1.5 0 0 0 0 -7 rect.dat
1 16 16.5 0 -92.75 0 1 1 0 .75 -.75 -27.75 0 0 box2-5.dat
3 16 16.5 1.5 -65 16.5 -1.5 -65 18.5 0 -65
3 16 18.5 0 -120.5 16.5 -1.5 -120.5 16.5 1.5 -120.5
2 24 16.5 -1.5 -120.5 16.5 1.5 -120.5
0 // Guard Rail
4 16 16.5 1.5 -51 16.5 1.5 -31 25.5 1.5 -35 25.5 1.5 -51
3 16 25.5 1.5 -35 16.5 1.5 -31 26.25 1.5 -31
3 16 16.5 -1.5 -31 25.5 -1.5 -35 26.25 -1.5 -31
4 16 25.5 -1.5 -35 16.5 -1.5 -31 16.5 -1.5 -51 25.5 -1.5 -51
2 24 25.5 -1.5 -35 26.25 -1.5 -31
2 24 25.5 1.5 -35 26.25 1.5 -31
1 16 25.5 0 -43 0 4.5 0 0 0 5 8 0 0 box3u2p.dat
1 16 25.5 3.25 -43 0 1 0 0 0 -1.75 -8 0 0 rect3.dat
1 16 25.5 -3.25 -43 0 1 0 0 0 1.75 8 0 0 rect3.dat
1 16 21.375 0 -31 4.875 0 0 0 0 1.5 0 -1 0 rect2p.dat
1 16 21 0 -51 -4.5 0 0 0 0 1.5 0 1 0 rect2p.dat
3 16 25.5 -5 -51 25.5 -1.5 -51 30 -5 -51
3 16 25.5 1.5 -51 25.5 5 -51 30 5 -51
4 16 30 -5 -51 25.5 -1.5 -51 25.5 1.5 -51 30 5 -51
4 16 29.25 -4.25 -31 26.25 -4.25 -31 25.5 -5 -35 30 -5 -35
4 16 25.5 5 -35 26.25 4.25 -31 29.25 4.25 -31 30 5 -35
4 16 29.25 4.25 -31 29.25 -4.25 -31 30 -5 -35 30 5 -35
4 16 25.5 1.5 -35 26.25 1.5 -31 26.25 4.25 -31 25.5 5 -35
4 16 25.5 -5 -35 26.25 -4.25 -31 26.25 -1.5 -31 25.5 -1.5 -35
2 24 30 -5 -35 29.25 -4.25 -31
2 24 25.5 -5 -35 26.25 -4.25 -31
2 24 29.25 4.25 -31 30 5 -35
2 24 25.5 5 -35 26.25 4.25 -31
2 24 26.25 4.25 -31 26.25 1.5 -31
2 24 26.25 -4.25 -31 26.25 -1.5 -31
3 16 26.25 -4.25 -31 29.25 -4.25 -31 26.25 -1.5 -31
3 16 26.25 4.25 -31 26.25 1.5 -31 29.25 4.25 -31
4 16 26.25 1.5 -31 26.25 -1.5 -31 29.25 -4.25 -31 29.25 4.25 -31
1 16 27.75 0 -31 0 0 1.5 -4.25 0 0 0 -1 0 recte3.dat
0 // Flat Section Bottom
4 16 16.5 1.5 -120.5 6 1.5 -120.5 6 1.5 -113 8.5 1.5 -104
4 16 16.5 1.5 -31 16.5 1.5 -51 8.5 1.5 -51 8.5 1.5 -9.5
4 16 16.5 1.5 -120.5 8.5 1.5 -71 8.5 1.5 -51 16.5 1.5 -51
3 16 8.5 1.5 -104 8.5 1.5 -71 16.5 1.5 -120.5
4 16 8.5 1.5 -104 6 1.5 -113 5.5 1.5 -111 5.5 1.5 -104
3 16 16.5 1.5 -17 16.5 1.5 -31 8.5 1.5 -9.5
3 16 16.5 1.5 -2.8284 16.5 1.5 -17 8.5 1.5 -9.5
4 16 15.6716 1.5 -2 16.5 1.5 -2 16.5 1.5 -2.8284 8.5 1.5 -9.5
1 16 8.25 1.5 -61 0 0 -.25 0 -1 0 -10 0 0 rect3.dat
0 // Flat Section Top
4 16 15.6716 -1.5 -2 14 -1.5 -3 16.5 -1.5 -2.8284 16.5 -1.5 -2
3 16 14 -1.5 -6 8.5 -1.5 -9.5 16.5 -1.5 -17
4 16 8.5 -1.5 -9.5 14 -1.5 -6 8 -1.5 -6 8 -1.5 -9.5
4 16 14 -1.5 -3 14 -1.5 -6 16.5 -1.5 -17 16.5 -1.5 -2.8284
4 16 8.5 -1.5 -51 16.5 -1.5 -31 16.5 -1.5 -17 8.5 -1.5 -9.5
3 16 16.5 -1.5 -31 8.5 -1.5 -51 11 -1.5 -51
3 16 16.5 -1.5 -31 11 -1.5 -51 16.5 -1.5 -51
4 16 16.5 -1.5 -65 16.5 -1.5 -51 11 -1.5 -51 11 -1.5 -71
4 16 8.5 -1.5 -71 8.5 -1.5 -104 16.5 -1.5 -120.5 11 -1.5 -71
3 16 16.5 -1.5 -120.5 16.5 -1.5 -65 11 -1.5 -71
4 16 8 -1.5 -111 8 -1.5 -120.5 16.5 -1.5 -120.5 8.5 -1.5 -104
4 16 5.5 -1.5 -111 8 -1.5 -111 8.5 -1.5 -104 5.5 -1.5 -104
2 24 5.5 -1.5 -111 8 -1.5 -111
2 24 8 -1.5 -120.5 8 -1.5 -111
0 // Vertical
1 16 11 -6.25 -4.5 0 0 3 0 -1.75 03 -1.5 0 0 box2-5.dat
2 24 8 -1.5 -6 14 -1.5 -6
2 24 8 -11 -6 8 -1.5 -6
4 16 14 -5 -6 8 -11 -6 8 -1.5 -6 14 -1.5 -6
3 16 8 -1.5 -6 8 -11 -6 8 -1.5 -9.5
3 16 8 -1.5 -9.5 8 -11 -6 8 -24.5 -6
4 16 8 -11 -3 8 -24.5 -3 8 -24.5 -6 8 -11 -6
2 24 8 -1.5 -9.5 8 -1.5 -6
2 24 8 -1.5 -9.5 8.5 -1.5 -9.5
0 // Wheel Support and Centre Opening
1 16 8.5 0 -30.25 0 1 0 -1.5 0 0 0 0 20.75 rect.dat
3 16 8.5 -1.5 -9.5 8 -1.5 -9.5 8.5 1.5 -9.5
1 16 8 -4.4954 -53 0 3 0 0 0 -2 2 0 0 5-16cylo.dat
1 16 8 -4.4954 -53 0 1 0 0 0 -2 2 0 0 5-16chrd.dat
1 16 11 -4.4954 -53 0 -1 0 0 0 -2 2 0 0 5-16chrd.dat
0 BFC INVERTNEXT
1 16 8 -12 -60.8364 0 3 0 8 0 0 0 0 10 1-8cylo.dat
1 16 8 -12 -60.8364 0 1 0 8 0 0 0 0 10 1-8tndis.dat
1 16 11 -12 -60.8364 0 -1 0 8 0 0 0 0 10 1-8tndis.dat
4 16 8.5 1.5 -51 8 1.5 -51 8 -4.4954 -51 8.5 -1.5 -51
4 16 11 -4.4954 -51 11 -1.5 -51 8.5 -1.5 -51 8 -4.4954 -51
4 16 8 -4 -53.7654 8 -6.3432 -53.7654 8 -4.4954 -51 8 1.5 -51
4 16 8 -4 -60.8364 8 -4 -53.7654 8 1.5 -51 8 1.5 -71
4 16 11 -1.5 -71 11 -5 -71 8 -5 -71 8.5 -1.5 -71
4 16 8.5 1.5 -71 8.5 -1.5 -71 8 -5 -71 8 1.5 -71
3 16 8 1.5 -71 8 -5 -71 8 -4 -60.8364
4 16 11 -1.5 -51 11 -4.4954 -51 11 -6.3432 -53.7654 11 -4 -53.7654
4 16 11 -1.5 -51 11 -4 -53.7654 11 -4 -60.8364 11 -1.5 -71
3 16 11 -4 -60.8364 11 -5 -71 11 -1.5 -71
4 16 11 -5 -71 11 -4 -60.8364 8 -4 -60.8364 8 -5 -71
2 24 8.5 -1.5 -71 11 -1.5 -71
2 24 11 -5 -71 11 -1.5 -71
2 24 8 -5 -71 11 -5 -71
2 24 8 -5 -71 8 1.5 -71
2 24 8 -5 -71 8 -4 -60.8364
2 24 11 -1.5 -71 11 -1.5 -51
2 24 11 -5 -71 11 -4 -60.8364
2 24 11 -4.4954 -51 11 -1.5 -51
2 24 8 -4.4954 -51 8 1.5 -51
2 24 8.5 -1.5 -51 11 -1.5 -51
5 24 11 -4 -60.8364 8 -4 -60.8364 11 -4.6088 -57.0094 11 -5 -71
0 BFC INVERTNEXT
1 16 7 0 -87.5 0 1.5 0 -1.5 0 0 0 0 -16.5 box2-5.dat
0 // Far End
2 24 8 -1.5 -111 8 -6 -131
3 16 8 -1.5 -120.5 8 -1.5 -111 8 -6 -131
4 16 16.5 -1.5 -120.5 8 -1.5 -120.5 8 -6 -131 16.5 -6 -131
4 16 6 -3 -131 6 1.5 -120.5 16.5 1.5 -120.5 16.5 -3 -131
2 24 6 1.5 -120.5 16.5 1.5 -120.5
2 24 16.5 1.5 -120.5 16.5 -3 -131
2 24 16.5 -3 -131 16.5 -6 -131
2 24 16.5 -6 -131 16.5 -1.5 -120.5
4 16 16.5 -3 -131 16.5 1.5 -120.5 16.5 -1.5 -120.5 16.5 -6 -131
2 24 6 1.5 -113 6 -3 -129
4 16 6 1.5 -120.5 6 -3 -131 6 -3 -129 6 1.5 -113
2 24 6 -3 -131 6 -3 -129
2 24 6 -3 -131 16.5 -3 -131
4 16 16.5 -3 -131 16.5 -6 -131 8 -6 -131 6 -3 -131
2 24 6 -3 -131 6 1.5 -120.5
2 24 6 1.5 -120.5 6 1.5 -113
2 24 8 -1.5 -120.5 16.5 -1.5 -120.5
2 24 8 -1.5 -120.5 8 -6 -131
2 24 8 -6 -131 16.5 -6 -131
3 16 8 -1.5 -111 5.5 -1.5 -111 8 -6 -131
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2024-05-26 19:53:34
