File Detail parts/s/5118s02.dat

Official File parts/s/5118s02.dat

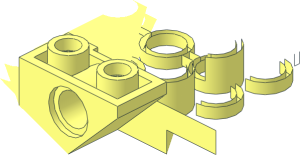

~Slope Brick 45 6 x 8 Double Inverted with 1 x 6 Extension and 4 Holes - Quarter

File Header:

0 ~Slope Brick 45  6 x  8 Double Inverted with  1 x  6 Extension and  4 Holes - Quarter
0 Name: s\5118s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02

Show contents

1 16 30 24 -70 1 0 0 0 1 0 0 0 1 s\5118s03.dat
4 16 57 2 -77 57 2 -63 50 9 -63 50 9 -64.5
1 16 50 4.5 -63.5 0 -1 0 0 0 4.5 .5 0 0 rect2a.dat
1 16 57 1 -70 0 1 0 1 0 0 0 0 7 rect3.dat
4 16 50 0 -63 50 9 -63 57 2 -63 57 0 -63
2 24 50 9 -63 57 2 -63

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5118s04.dat

1 16 60 12 -40 0 0 1 0 -1 0 -1 0 0 2-4stud4.dat
1 16 60 12 -20 0 0 1 0 -1 0 -1 0 0 2-4stud4.dat
1 16 60 14 -47 0 1 0 0 0 2 1 0 0 recte3.dat
1 16 60 14 -33 0 1 0 0 0 2 1 0 0 recte3.dat
1 16 60 14 -27 0 1 0 0 0 2 1 0 0 recte3.dat
1 16 60 14 -13 0 1 0 0 0 2 1 0 0 recte3.dat
1 16 60 14 -7 0 1 0 0 0 2 1 0 0 recte3.dat

1 16 32 20 -40 1.5 0 0 0 3.5 0 0 0 1.5 boxjcyl4.dat
1 16 30 20 -40 2 0 0 0 3.5 0 0 0 1.5 box3u8p.dat
1 16 32 20 -20 1.5 0 0 0 3.5 0 0 0 1.5 boxjcyl4.dat
1 16 30 20 -20 2 0 0 0 3.5 0 0 0 1.5 box3u8p.dat

1 16 40 20 -40 1 0 0 0 1 0 0 0 1 s\5118s05.dat
1 16 40 20 -20 1 0 0 0 1 0 0 0 1 s\5118s05.dat

4 16 60 16 -60 60 16 -56 76 16 -56 80 16 -60
3 16 60 16 -56 60 16 -60 60 24 -60
2 24 40 8 -60 40 16 -60
2 24 48 8 -60 40 8 -60
4 16 48 10 -60 48 8 -60 40 8 -60 40 16 -60
2 24 56 8 -60 80 8 -60
2 24 48 8 -60 56 8 -60
2 24 56 8 -60 40 24 -60
4 16 40 24 -60 56 8 -60 60 4 -80 40 24 -80
2 24 80 8 -60 80 16 -60
2 24 60 24 -60 40 24 -60
2 24 60 16 -60 60 24 -60
2 24 80 16 -60 60 16 -60
4 16 80 16 -60 80 8 -60 56 8 -60 60 16 -60
4 16 40 24 -60 60 24 -60 60 16 -60 56 8 -60
2 24 60 4 -80 60 4 -60
3 16 56 8 -60 60 4 -60 60 4 -80
2 24 60 0 -60 60 0 -80
2 24 48 0 -60 60 0 -60
2 24 60 0 -60 60 4 -60
2 24 60 4 -60 56 8 -60
4 16 56 8 -60 48 8 -60 48 0 -60 60 0 -60
4 16 60 4 -60 60 0 -60 60 0 -80 60 4 -80
3 16 60 0 -60 60 4 -60 56 8 -60
2 24 57 0 -63 50 0 -63
4 16 48 0 -60 50 0 -63 57 0 -63 60 0 -60
4 16 60 0 -80 60 0 -60 57 0 -63 57 0 -77
4 16 37 24 -59.1213 40 24 -60 40 24 -80 37 24 -76
2 24 40 24 -80 40 24 -60
2 24 60 16 -60 60 16 -56
2 24 56 24 -56 38.1213 24 -56
4 16 56 24 -56 43.0616 20 -56 43.0616 12 -56 56 12 -56

4 16 38.1213 24 -56 56 24 -56 60 24 -60 40 24 -60
2 24 37 24 -59.1213 37 24 -76
2 24 38.1213 24 -56 35.3033 24 -53.1819
2 24 33.1819 24 -55.3033 35.3033 24 -53.1819
2 24 33.1819 24 -55.3033 37 24 -59.1213
2 24 33.1819 24 -55.3033 33.1819 20 -55.3033
2 24 35.3033 20 -53.1819 35.3033 24 -53.1819
2 24 35.3033 20 -53.1819 38.1213 20 -56
2 24 33.1819 20 -55.3033 37 20 -59.1213
2 24 37 20 -59.1213 37 24 -59.1213
2 24 38.1213 24 -56 38.1213 20 -56
2 24 43.0616 20 -56 38.1213 20 -56
4 16 38.1213 24 -56 38.1213 20 -56 43.0616 20 -56 56 24 -56
4 16 37 24 -59.1213 33.1819 24 -55.3033 35.3033 24 -53.1819 38.1213 24 -56
4 16 38.1213 24 -56 35.3033 24 -53.1819 35.3033 20 -53.1819 38.1213 20 -56
4 16 37 24 -59.1213 37 20 -59.1213 33.1819 20 -55.3033 33.1819 24 -55.3033
4 16 35.3033 24 -53.1819 33.1819 24 -55.3033 33.1819 20 -55.3033 35.3033 20 -53.1819
2 24 35.3033 20 -53.1819 33.1819 20 -55.3033
3 16 37 24 -59.1213 38.1213 24 -56 40 24 -60
2 24 27.7016 20 -61.5 28 20 -60

0 // Bottom Corner
4 16 37 20 -61.5 27.7016 20 -61.5 28 20 -60 37 20 -58.5

3 16 31.6851 13.4442 -76 23.0616 13.4442 -76 31.6851 13.4442 -63
3 16 23.0616 13.4442 -67.3912 27.7017 13.4442 -61.5 30.1849 13.4442 -61.5
4 16 31.6851 13.4442 -63 23.0616 13.4442 -76 23.0616 13.4442 -67.3912 30.1849 13.4442 -61.5
2 24 30.1849 13.4442 -61.5 27.7017 13.4442 -61.5
2 24 31.6851 13.4442 -63 31.6851 13.4442 -76
2 24 31.6851 13.4442 -63 30.1849 13.4442 -61.5
1 16 40 10 -76 -8.31492 0 3.44415 3.44415 0 8.31492 0 13 0 1-8cylo.dat
1 16 40 10 -61.5 -1.38582 0 .57403 .57403 0 1.38582 0 -1.5 0 1-8con6.dat
1 16 40 10 -61.5 -9.70074 0 4.01818 4.01818 0 9.70074 0 -1 0 1-8edge.dat
4 16 37 18.4032 -76 36.5559 18.3148 -76 36.5559 18.3148 -63 37 18.4038 -63
4 16 37 18.4038 -63 36.5559 18.3148 -63 35.9817 19.701 -61.5 37 19.9034 -61.5
3 16 30.2991 14.0184 -61.5 31.68508 13.44415 -63 30.1849 13.4442 -61.5
2 24 37 18.4032 -76 36.5559 18.3148 -76
2 24 37 18.4032 -76 37 24 -76
2 24 37 18.4032 -76 37 18.4038 -63
2 24 30.1849 13.4442 -61.5 30.2991 14.0184 -61.5
2 24 36.5559 18.3148 -63 37 18.4038 -63
2 24 37 19.9034 -61.5 37 18.4038 -63
2 24 35.9817 19.701 -61.5 37 19.9034 -61.5
5 24 36.5559 18.3148 -76 36.5559 18.3148 -63 37 18.4038 -63 33.6359 16.3642 -64.5
5 24 30.2991 14.0184 -61.5 31.6851 13.4442 -63 30.1849 13.4442 -61.5 33.6359 16.3642 -63
5 24 35.9817 19.701 -61.5 36.5559 18.3148 -63 37 18.4038 -63 33.6359 16.3642 -63
4 16 27.7016 20 -61.5 37 20 -61.5 37 19.9034 -61.5 35.9817 19.701 -61.5
4 16 27.7017 13.4442 -61.5 27.7016 20 -61.5 32.5755 17.4246 -61.5 30.2991 14.0184 -61.5
3 16 30.2991 14.0184 -61.5 30.1849 13.4442 -61.5 27.7017 13.4442 -61.5
3 16 32.5755 17.4246 -61.5 27.7016 20 -61.5 35.9817 19.701 -61.5
2 24 27.7016 20 -61.5 27.7017 13.4442 -61.5
2 24 27.7016 20 -61.5 37 20 -61.5
2 24 37 19.9034 -61.5 37 20 -61.5
3 16 37 18.4032 -76 37 18.4038 -63 37 24 -76
4 16 37 18.4038 -63 37 19.9034 -61.5 37 20 -61.5 37 24 -76
4 16 37 20 -61.5 37 20 -59.1213 37 24 -59.1213 37 24 -76
2 24 37 20 -59.1213 37 19.9034 -61.5

Status:

Official

This part has the following warnings

5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 40 10 -76 -8.31492 0 3.44415 3.44415 0 8.31492 0 13 0 1-8cylo.dat
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 40 10 -61.5 -1.38582 0 .57403 .57403 0 1.38582 0 -1.5 0 1-8con6.dat
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 40 10 -61.5 -9.70074 0 4.01818 4.01818 0 9.70074 0 -1 0 1-8edge.dat
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 3 16 30.2991 14.0184 -61.5 31.68508 13.44415 -63 30.1849 13.4442 -61.5
