Official File parts/11215.dat
Part Attributes:
File Header:

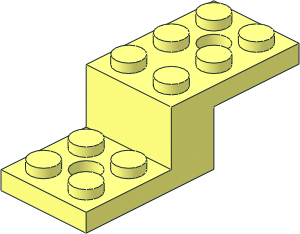

0 Bracket 5 x 2 x 1.333 with Understud in Centre
0 Name: 11215.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2013-05-05 [tchang] New part, made from James Jessiman 6087.dat
0 !HISTORY 2013-06-10 [tchang] Rebuild from real part
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
0 !HISTORY 2024-08-06 [GeraldLasser] Used subfile and corrected unmatched vertices, T-junctions
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
