Official File parts/11216.dat
Part Attributes:
File Header:

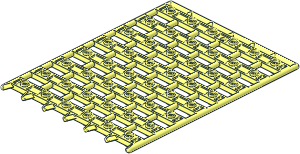

0 Bar Grille 13 x 17 with Studs and Tips
0 Name: 11216.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Castle, Gate, Portcullis, Rancor Pit, set 75005, Star Wars
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2020-11-04 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
Show contents
0 // Subparts
1 16 0 0 140 1 0 0 0 1 0 0 0 1 s\11216s02.dat
1 16 0 0 120 1 0 0 0 1 0 0 0 1 s\11216s01.dat
1 16 0 0 80 1 0 0 0 1 0 0 0 1 s\11216s01.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 s\11216s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\11216s01.dat
1 16 0 0 -40 1 0 0 0 1 0 0 0 1 s\11216s01.dat
1 16 0 0 -80 1 0 0 0 1 0 0 0 1 s\11216s01.dat
1 16 0 0 -120 1 0 0 0 1 0 0 0 1 s\11216s01.dat
1 16 -120 0 -150 1 0 0 0 1 0 0 0 1 s\11216s04.dat
1 16 -80 0 -150 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 -40 0 -150 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 0 0 -150 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 40 0 -150 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 80 0 -150 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 120 0 -150 -1 0 0 0 1 0 0 0 1 s\11216s04.dat
0 // Primitives
1 16 0 0 150 120 0 0 0 0 4 0 -1 0 rect2p.dat
1 16 0 0 130 120 0 0 0 0 4 0 1 0 rect2p.dat
1 16 0 0 90 120 0 0 0 0 4 0 1 0 rect2p.dat
1 16 0 0 50 120 0 0 0 0 4 0 1 0 rect2p.dat
1 16 0 0 10 120 0 0 0 0 4 0 1 0 rect2p.dat
1 16 0 0 -30 120 0 0 0 0 4 0 1 0 rect2p.dat
1 16 0 0 -70 120 0 0 0 0 4 0 1 0 rect2p.dat
1 16 0 0 -110 120 0 0 0 0 4 0 1 0 rect2p.dat
0 // Hole
0 // Primitives
1 16 0 2 140 4 0 0 0 -1 0 0 0 4 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 2 140 4 0 0 0 -4 0 0 0 4 4-4cylo.dat
1 16 0 -2 140 4 0 0 0 1 0 0 0 4 4-4ndis.dat
1 16 0 3 147 10 0 0 0 0 1 0 1 0 rect2p.dat
1 16 0 -3 147 10 0 0 0 0 1 0 1 0 rect2p.dat
1 16 0 3 133 10 0 0 0 0 1 0 -1 0 rect2p.dat
1 16 0 -3 133 10 0 0 0 0 1 0 -1 0 rect2p.dat
0 // Faces
3 16 -10 2 147 0 2 144 -4 2 144
4 16 -10 2 147 10 2 147 4 2 144 0 2 144
3 16 10 2 147 4 2 140 4 2 144
4 16 -4 2 144 -4 2 140 -10 2 133 -10 2 147
4 16 4 2 136 4 2 140 10 2 147 10 2 133
3 16 -10 2 133 -4 2 140 -4 2 136
4 16 10 2 133 -10 2 133 -4 2 136 0 2 136
3 16 10 2 133 0 2 136 4 2 136
3 16 -10 -2 147 -4 -2 144 0 -2 144
4 16 -10 -2 147 0 -2 144 4 -2 144 10 -2 147
3 16 10 -2 147 4 -2 144 4 -2 140
4 16 -4 -2 144 -10 -2 147 -10 -2 133 -4 -2 140
4 16 4 -2 136 10 -2 133 10 -2 147 4 -2 140
3 16 -10 -2 133 -4 -2 136 -4 -2 140
4 16 10 -2 133 0 -2 136 -4 -2 136 -10 -2 133
3 16 10 -2 133 4 -2 136 0 -2 136
0 // Upper bar
0 // Primitives
1 16 -120 0 160 0 240 0 -4 0 0 0 0 4 4-4cyli.dat
1 16 -120 0 160 0 0 4 4 0 0 0 -10 0 2-4cyli.dat
1 16 -80 0 160 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 -40 0 160 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 0 0 160 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 40 0 160 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 80 0 160 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 120 0 160 0 0 -4 4 0 0 0 -10 0 2-4cyli.dat
1 16 -120 0 150 0 0 4 4 0 0 0 1 0 2-4edge.dat
1 16 -80 0 150 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 -40 0 150 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 0 0 150 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 40 0 150 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 80 0 150 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 120 0 150 0 0 -4 4 0 0 0 1 0 2-4edge.dat
1 16 -120 0 160 0 -4 0 4 0 0 0 0 4 2-8sphe.dat
1 16 120 0 160 0 4 0 4 0 0 0 0 4 2-8sphe.dat
1 16 -120 0 160 0 0 -4 4 0 0 0 -310 0 2-4cyli.dat
1 16 120 0 160 0 0 4 4 0 0 0 -310 0 2-4cyli.dat
1 16 -120 0 160 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 -80 0 160 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 -80 0 160 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 -40 0 160 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 -40 0 160 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 0 0 160 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 0 0 160 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 40 0 160 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 40 0 160 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 80 0 160 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 80 0 160 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 120 0 160 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
0 // Base of the tips
4 16 -117 4 -150 -83 4 -150 -83 -4 -150 -117 -4 -150
4 16 -77 4 -150 -43 4 -150 -43 -4 -150 -77 -4 -150
4 16 -37 4 -150 -3 4 -150 -3 -4 -150 -37 -4 -150
4 16 3 4 -150 37 4 -150 37 -4 -150 3 -4 -150
4 16 43 4 -150 77 4 -150 77 -4 -150 43 -4 -150
4 16 83 4 -150 117 4 -150 117 -4 -150 83 -4 -150
0 // Edges
2 24 -117 4 -150 -83 4 -150
2 24 -117 -4 -150 -83 -4 -150
2 24 -77 4 -150 -43 4 -150
2 24 -77 -4 -150 -43 -4 -150
2 24 -37 4 -150 -3 4 -150
2 24 -37 -4 -150 -3 -4 -150
2 24 3 4 -150 37 4 -150
2 24 3 -4 -150 37 -4 -150
2 24 43 4 -150 77 4 -150
2 24 43 -4 -150 77 -4 -150
2 24 83 4 -150 117 4 -150
2 24 83 -4 -150 117 -4 -150
Status:
Official
