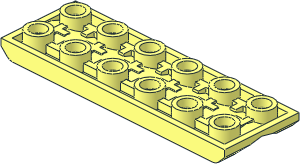

Plate 2 x 6 with Underside Worm Gear Rack

File Header:

0 Plate  2 x  6 with Underside Worm Gear Rack
0 Name: 3776.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3776s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\3776s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\3776s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\3776s01.dat

0 // Inside
0 BFC INVERTNEXT
1 16 0 2.5 15.6213 57 0 0 0 2.5 0 0 0 1.3787 box2-5.dat
0 BFC INVERTNEXT
1 16 0 2.5 -15.6213 57 0 0 0 2.5 0 0 0 -1.3787 box2-5.dat
4 16 57 3 10 57 5 14.2426 -57 5 14.2426 -57 3 10
4 16 57 1 4 57 3 10 -57 3 10 -57 1 4
4 16 -57 1 4 -57 .3 0 57 .3 0 57 1 4
4 16 -57 5 -14.2426 57 5 -14.2426 57 3 -10 -57 3 -10
4 16 -57 3 -10 57 3 -10 57 1 -4 -57 1 -4
4 16 57 .3 0 -57 .3 0 -57 1 -4 57 1 -4
5 24 57 1 -4 -57 1 -4 -57 3 -10 57 .3 0
5 24 57 3 10 -57 3 10 57 5 14.2426 -57 1 4
5 24 -57 .3 0 57 .3 0 -57 1 -4 57 1 4
5 24 57 3 -10 -57 3 -10 57 1 -4 -57 5 -14.2426
5 24 -57 1 4 57 1 4 57 3 10 -57 .3 0
3 16 57 .3 0 57 0 -17 57 0 17
3 16 -57 .3 0 -57 0 17 -57 0 -17
2 24 -57 0 17 -57 0 -17
2 24 57 0 17 57 0 -17

1 16 0 .58335 4.5 -1.5 0 0 0 0 .58335 0 1 0 rect.dat
1 16 0 1.85355 11.5 0 0 -4.2983 1.85355 0 0 0 -1 0 rect.dat
4 16 4.2983 0 11.5 -4.2983 0 11.5 -1.5 0 8.5 1.5 0 8.5
4 16 1.5 0 8.5 -1.5 0 8.5 -1.5 0 4.5 1.5 0 4.5

1 16 0 .58335 -4.5 -1.5 0 0 0 0 .58335 0 -1 0 rect.dat
1 16 0 1.85355 -11.5 0 0 -4.2983 1.85355 0 0 0 1 0 rect.dat
4 16 -1.5 0 -8.5 -4.2983 0 -11.5 4.2983 0 -11.5 1.5 0 -8.5
4 16 -1.5 0 -4.5 -1.5 0 -8.5 1.5 0 -8.5 1.5 0 -4.5

1 16 -13.5 .5625 0 0 0 -2 0 -.5625 0 -1.5 0 0 box4-3p.dat
1 16 -6.5 .5625 0 0 0 2 0 -.5625 0 -1.5 0 0 box4-3p.dat
1 16 6.5 .5625 0 0 0 -2 0 -.5625 0 -1.5 0 0 box4-3p.dat
1 16 13.5 .5625 0 0 0 2 0 -.5625 0 -1.5 0 0 box4-3p.dat
1 16 -51.5 .5497 0 0 1 0 0 0 -.5497 -4.2983 0 0 rect3.dat
1 16 -46.5 .5625 0 0 0 2 0 -.5625 0 -1.5 0 0 box4-3p.dat
1 16 -33.5 .5625 0 0 0 -2 0 -.5625 0 -1.5 0 0 box4-3p.dat
1 16 -26.5 .5625 0 0 0 2 0 -.5625 0 -1.5 0 0 box4-3p.dat
1 16 26.5 .5625 0 0 0 -2 0 -.5625 0 -1.5 0 0 box4-3p.dat
1 16 33.5 .5625 0 0 0 2 0 -.5625 0 -1.5 0 0 box4-3p.dat
1 16 46.5 .5625 0 0 0 -2 0 -.5625 0 -1.5 0 0 box4-3p.dat
1 16 51.5 .5497 0 0 -1 0 0 0 -.5497 -4.2983 0 0 rect3.dat
4 16 -48.5 0 -1.5 -48.5 0 1.5 -51.5 0 4.2983 -51.5 0 -4.2983
4 16 -31.5 0 1.5 -31.5 0 -1.5 -28.5 0 -1.5 -28.5 0 1.5
4 16 -11.5 0 1.5 -11.5 0 -1.5 -8.5 0 -1.5 -8.5 0 1.5
4 16 8.5 0 1.5 8.5 0 -1.5 11.5 0 -1.5 11.5 0 1.5
4 16 28.5 0 1.5 28.5 0 -1.5 31.5 0 -1.5 31.5 0 1.5
4 16 51.5 0 4.2983 48.5 0 1.5 48.5 0 -1.5 51.5 0 -4.2983

0 // Outside
1 16 0 0 0 60 0 0 0 1 0 0 0 20 recte4.dat
4 16 57 0 -17 -57 0 -17 -60 0 -20 60 0 -20
4 16 -60 0 -20 -57 0 -17 -57 0 17 -60 0 20
4 16 -60 0 20 -57 0 17 57 0 17 60 0 20
4 16 60 0 -20 60 0 20 57 0 17 57 0 -17
3 16 -60 0 20 -60 2.2 0 -60 0 -20
3 16 60 2.2 0 60 0 20 60 0 -20
4 16 60 0 20 53.8 8 20 -53.8 8 20 -60 0 20
4 16 -60 0 -20 -53.8 8 -20 53.8 8 -20 60 0 -20
2 24 53.8 8 -20 -53.8 8 -20
2 24 -53.8 8 20 53.8 8 20

0 BFC INVERTNEXT
1 16 -60 18 0 0 120 0 -15.8 0 0 0 0 15.8 1-16cylo.dat
4 16 -60 3.4024 6.0467 -59.0997 4.3172 7.9 59.0997 4.3172 7.9 60 3.4024 6.0467
4 16 -59.0997 4.3172 7.9 -57.9709 5.4643 9.619 57.9709 5.4643 9.619 59.0997 4.3172 7.9
4 16 -57.9709 5.4643 9.619 -56.6284 6.8284 11.1722 56.6284 6.8284 11.1722 57.9709 5.4643 9.619
4 16 56.6284 6.8284 11.1722 -56.6284 6.8284 11.1722 -53.8 8 12.2013 53.8 8 12.2013
5 24 56.6284 6.8284 11.1722 -56.6284 6.8284 11.1722 -53.8 8 12.2013 57.9709 5.4643 9.619
5 24 -59.0997 4.3172 7.9 59.0997 4.3172 7.9 60 3.4024 6.0467 -57.9709 5.4643 9.619
5 24 -57.9709 5.4643 9.619 57.9709 5.4643 9.619 59.0997 4.3172 7.9 -56.6284 6.8284 11.1722
5 24 -60 3.4024 6.0467 60 3.4024 6.0467 -59.0997 4.3172 7.9 -60 2.2 0
2 24 53.8 8 12.2013 -53.8 8 12.2013
4 16 53.8 8 12.2013 -53.8 8 12.2013 -53.8 8 20 53.8 8 20

0 BFC INVERTNEXT
1 16 -60 18 0 0 120 0 -15.8 0 0 0 0 -15.8 1-16cylo.dat
4 16 59.0997 4.3172 -7.9 -59.0997 4.3172 -7.9 -60 3.4024 -6.0467 60 3.4024 -6.0467
4 16 57.9709 5.4643 -9.619 -57.9709 5.4643 -9.619 -59.0997 4.3172 -7.9 59.0997 4.3172 -7.9
4 16 56.6284 6.8284 -11.1722 -56.6284 6.8284 -11.1722 -57.9709 5.4643 -9.619 57.9709 5.4643 -9.619
4 16 -53.8 8 -12.2013 -56.6284 6.8284 -11.1722 56.6284 6.8284 -11.1722 53.8 8 -12.2013
5 24 -56.6284 6.8284 -11.1722 56.6284 6.8284 -11.1722 -53.8 8 -12.2013 57.9709 5.4643 -9.619
5 24 59.0997 4.3172 -7.9 -59.0997 4.3172 -7.9 60 3.4024 -6.0467 -57.9709 5.4643 -9.619
5 24 57.9709 5.4643 -9.619 -57.9709 5.4643 -9.619 59.0997 4.3172 -7.9 -56.6284 6.8284 -11.1722
5 24 60 3.4024 -6.0467 -60 3.4024 -6.0467 -59.0997 4.3172 -7.9 -60 2.2 0
2 24 -53.8 8 -12.2013 53.8 8 -12.2013
4 16 -53.8 8 -20 -53.8 8 -12.2013 53.8 8 -12.2013 53.8 8 -20

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2024-06-03 16:04:10

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2024-06-03 19:03:41

addressed the issues raised in s01 added missing faces and edge lines as well as complementary conds
