Official File parts/5518.dat
Part Attributes:
File Header:

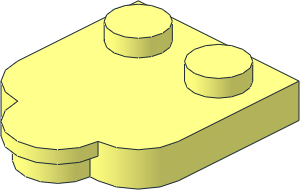

0 Plate 2.5 x 2 with 2 Studs on One Edge and Rounded Edges
0 Name: 5518.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-06-04 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-06-04 [GeraldLasser] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
0 !HISTORY 2024-11-18 [GeraldLasser] Adapted radii of the sides
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
4 16 20 8 20 16 8 16 -16 8 16 -20 8 20
4 16 16 8 16 20 8 20 20 8 -10 16 8 -11
4 16 -16 8 16 -16 8 -11 -20 8 -10 -20 8 20
0 BFC INVERTNEXT
1 16 0 8 2.5 16 0 0 0 -5 0 0 0 13.5 box4-4a.dat
0 BFC INVERTNEXT
1 16 11 8 -11 5 0 0 0 -5 0 0 0 -5 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -11 8 -11 -5 0 0 0 -5 0 0 0 -5 1-4cylo.dat
1 16 11 3 -11 5 0 0 0 -1 0 0 0 -5 1-4chrd.dat
1 16 -11 3 -11 -5 0 0 0 -1 0 0 0 -5 1-4chrd.dat
1 16 0 3 -20 0 0 -8 0 -1 0 8 0 0 1-8tndis.dat
1 16 0 3 -20 0 0 8 0 -1 0 8 0 0 1-8tndis.dat
4 16 11 3 -16 6.7641 3 -16 5.6568 3 -14.3432 16 3 -11
4 16 -6.7641 3 -16 -11 3 -16 -16 3 -11 -5.6568 3 -14.3432
3 16 -5.6568 3 -12 -5.6568 3 -14.3432 -16 3 -11
3 16 5.6568 3 -14.3432 5.6568 3 -12 16 3 -11
4 16 16 3 -11 5.6568 3 -12 -5.6568 3 -12 -16 3 -11
1 16 8.88205 5.5 -16 0 0 -2.11795 2.5 0 0 0 -1 0 rect3.dat
1 16 -8.88205 5.5 -16 0 0 2.11795 2.5 0 0 0 -1 0 rect3.dat
1 16 0 3 -20 0 0 -1 0 -1.25 0 1 0 0 1-8stud4.dat
1 16 0 3 -20 0 0 1 0 -1.25 0 1 0 0 1-8stud4.dat
4 16 6.7641 8 -16 5.6568 8 -14.3432 5.6568 3 -14.3432 6.7641 3 -16
4 16 -5.6568 8 -14.3432 -6.7641 8 -16 -6.7641 3 -16 -5.6568 3 -14.3432
2 24 -6.7641 3 -16 -5.6568 3 -14.3432
2 24 -6.7641 8 -16 -5.6568 8 -14.3432
2 24 5.6568 8 -14.3432 6.7641 8 -16
2 24 5.6568 3 -14.3432 6.7641 3 -16
5 24 5.6568 8 -14.3432 5.6568 3 -14.3432 6.7641 3 -16 3.0616 3 -12.6088
5 24 -5.6568 8 -14.3432 -5.6568 3 -14.3432 -6.7641 3 -16 -3.0616 3 -12.6088
1 16 11 8 -11 5 0 0 0 -1 0 0 0 -5 1-4ndis.dat
1 16 10 8 -10 10 0 0 0 -1 0 0 0 -10 1-8chrd.dat
1 16 10 8 -10 0 0 10 0 -1 0 -10 0 0 1-8chrd.dat
4 16 17.071 8 -17.071 16 8 -16 16 8 -11 20 8 -10
4 16 16 8 -16 17.071 8 -17.071 10 8 -20 11 8 -16
1 16 -11 8 -11 -5 0 0 0 -1 0 0 0 -5 1-4ndis.dat
1 16 -10 8 -10 -10 0 0 0 -1 0 0 0 -10 1-8chrd.dat
1 16 -10 8 -10 0 0 -10 0 -1 0 -10 0 0 1-8chrd.dat
4 16 -16 8 -11 -16 8 -16 -17.071 8 -17.071 -20 8 -10
4 16 -10 8 -20 -17.071 8 -17.071 -16 8 -16 -11 8 -16
1 16 10 8 -10 10 0 0 0 -1 0 0 0 -10 1-4edge.dat
1 16 10 8 -10 10 0 0 0 -5 0 0 0 -10 1-4cyli.dat
1 16 10 3 -10 10 0 0 0 -3 0 0 0 -10 1-4cyli.dat
1 16 10 0 -10 10 0 0 0 -1 0 0 0 -10 1-4edge.dat
1 16 -10 8 -10 -10 0 0 0 -1 0 0 0 -10 1-4edge.dat
1 16 -10 8 -10 -10 0 0 0 -5 0 0 0 -10 1-4cyli.dat
1 16 -10 3 -10 -10 0 0 0 -3 0 0 0 -10 1-4cyli.dat
1 16 -10 0 -10 -10 0 0 0 -1 0 0 0 -10 1-4edge.dat
4 16 -10 8 -20 -11 8 -16 -6.7641 8 -16 -8 8 -20
4 16 8 8 -20 6.7641 8 -16 11 8 -16 10 8 -20
1 16 0 3 -20 6 0 0 0 -1 0 0 0 6 4-4disc.dat
0 BFC INVERTNEXT
1 16 0 8 -20 6 0 0 0 -5 0 0 0 6 1-8cylo.dat
1 16 0 8 -20 6 0 0 0 -1 0 0 0 6 1-8tndis.dat
3 16 4.2426 8 -15.7574 5.6568 8 -14.3432 6 8 -15.7574
3 16 6 8 -15.7574 5.6568 8 -14.3432 6.7641 8 -16
4 16 8 8 -20 6 8 -20 6 8 -15.7574 6.7641 8 -16
0 BFC INVERTNEXT
1 16 0 8 -20 -6 0 0 0 -5 0 0 0 6 1-8cylo.dat
1 16 0 8 -20 -6 0 0 0 -1 0 0 0 6 1-8tndis.dat
3 16 -5.6568 8 -14.3432 -4.2426 8 -15.7574 -6 8 -15.7574
3 16 -5.6568 8 -14.3432 -6 8 -15.7574 -6.7641 8 -16
4 16 -6 8 -15.7574 -6 8 -20 -8 8 -20 -6.7641 8 -16
2 24 8 8 -20 10 8 -20
2 24 10 0 -20 10 3 -20
2 24 8 3 -20 10 3 -20
2 24 8 3 -20 8 8 -20
4 16 8 3 -20 8 8 -20 10 8 -20 10 3 -20
2 24 -10 8 -20 -8 8 -20
2 24 -10 3 -20 -10 0 -20
2 24 -10 3 -20 -8 3 -20
2 24 -8 8 -20 -8 3 -20
4 16 -10 8 -20 -8 8 -20 -8 3 -20 -10 3 -20
1 16 0 3 0 1 0 0 0 -1.25 0 0 0 1 stud4.dat
1 16 0 3 -20 1 0 0 0 -1.25 0 0 0 -1 2-4stud4.dat
1 16 0 3 -20 2 0 0 0 -1 0 0 0 -2 2-4ring4.dat
0 // Outside
1 16 0 4 20 0 0 -20 4 0 0 0 -1 0 rect.dat
4 16 20 8 20 20 0 20 20 3 -10 20 8 -10
3 16 20 0 -10 20 3 -10 20 0 20
3 16 -20 3 -10 -20 0 -10 -20 0 20
4 16 -20 0 20 -20 8 20 -20 8 -10 -20 3 -10
2 24 -20 0 20 -20 0 -10
2 24 -20 8 -10 -20 8 20
2 24 20 0 -10 20 0 20
2 24 20 8 20 20 8 -10
1 16 0 0 -20 10 0 0 0 3 0 0 0 -10 2-4cylo.dat
1 16 0 0 -20 10 0 0 0 1 0 0 0 -10 2-4chrd.dat
1 16 10 0 -10 10 0 0 0 1 0 0 0 -10 1-4chrd.dat
1 16 -10 0 -10 -10 0 0 0 1 0 0 0 -10 1-4chrd.dat
4 16 -10 0 -20 10 0 -20 20 0 20 -20 0 20
3 16 10 0 -20 20 0 -10 20 0 20
3 16 -20 0 20 -20 0 -10 -10 0 -20
1 16 0 0 10 0 0 -1 0 1 0 1 0 0 stug-2x1.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-06-04 09:36:49
2024-06-10 12:42:40
2024-06-10 12:43:04
2024-06-10 12:43:20
Added a "cloud" kw
2024-06-10 13:04:42
...somebody on a german forum wrote, it looks more like a tombstone...
2024-06-10 13:24:14
I wouldn't complain if a tombstone kw was added... I can see that shape too ;)
2024-06-10 13:26:55
2024-06-28 03:20:52
Header Edits
keywords:
Cloud
to
Cloud, Tombstone
2024-06-28 03:20:57
2024-06-30 00:14:19
Release 2024-05
adapted side curves to fit into a corner at 45 degrees
Missing History about this change.
Could you please give an example of why it is changed?
Do we need to renumber it, due to geometry changes?
Could you please give an example of why it is changed?
Do we need to renumber it, due to geometry changes?
saved, too late, History is now there.
This:
1 16 14.1421 -8 -14.1421 -.70711 0 .70711 0 1 0 -.70711 0 -.70711 5518.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 2450.dat
1 16 -20 -8 -10 0 0 1 0 1 0 -1 0 0 3069b.dat
1 16 10 -8 20 1 0 0 0 1 0 0 0 1 3069b.dat
should be possible without intersection, currently the geometry intersects with the tiles, see centr image
https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhVM0yI7fi74WWi7Xs3HRS2Z1zvvOIOVH43eASG4LOWyeNTWMaMhNYAY7XCWwhmf963xg1JRN5nSV4iQFUYFEBXbeU1BSLHVSgeZZEo_fvFMJdlq6DxTN1fu0otCkosmjUHivUOFZxecexSqYOPriSry1JL9LcFcCr-gttxs1hYvvZ-ZlMcKmPsOm2pBZ5T/s3920/8%20Lego%20Part%205518d.jpg
a renumber is not necessary as the change makes the part only a tad smaller and removes a possible intersection, origin stays,
This:
1 16 14.1421 -8 -14.1421 -.70711 0 .70711 0 1 0 -.70711 0 -.70711 5518.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 2450.dat
1 16 -20 -8 -10 0 0 1 0 1 0 -1 0 0 3069b.dat
1 16 10 -8 20 1 0 0 0 1 0 0 0 1 3069b.dat
should be possible without intersection, currently the geometry intersects with the tiles, see centr image
https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhVM0yI7fi74WWi7Xs3HRS2Z1zvvOIOVH43eASG4LOWyeNTWMaMhNYAY7XCWwhmf963xg1JRN5nSV4iQFUYFEBXbeU1BSLHVSgeZZEo_fvFMJdlq6DxTN1fu0otCkosmjUHivUOFZxecexSqYOPriSry1JL9LcFcCr-gttxs1hYvvZ-ZlMcKmPsOm2pBZ5T/s3920/8%20Lego%20Part%205518d.jpg
a renumber is not necessary as the change makes the part only a tad smaller and removes a possible intersection, origin stays,
Perfect!
2024-11-18 20:19:51
2024-11-18 20:48:10
2024-11-18 21:03:43
2024-12-01 00:36:56
Release 2024-10
