File Detail parts/s/21459s02.dat

Unofficial File parts/s/21459s02.dat

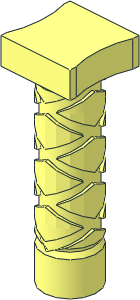

~Minifig Sword Katana Type 3 (Square Guard with Smooth Endcap) - Grip and Guard

File Header:

0 ~Minifig Sword Katana Type 3 (Square Guard with Smooth Endcap) - Grip and Guard
0 Name: s\21459s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-06-04 [GeraldLasser] Subfiled from 21459 by Sirio

Show contents

0 // Grip
1 16 0 4.95 0 1 0 0 0 1 0 0 0 1 s\21459s01.dat
1 16 0 4.95 0 -1 0 0 0 1 0 0 0 1 s\21459s01.dat
1 16 0 4.95 0 1 0 0 0 1 0 0 0 -1 s\21459s01.dat
1 16 0 4.95 0 -1 0 0 0 1 0 0 0 -1 s\21459s01.dat
1 16 0 4.95 0 1 0 0 0 -1 0 0 0 1 s\93247s01.dat
1 16 0 4.95 0 1 0 0 0 -1 0 0 0 -1 s\93247s01.dat
1 16 0 4.95 0 -1 0 0 0 -1 0 0 0 1 s\93247s01.dat
1 16 0 4.95 0 -1 0 0 0 -1 0 0 0 -1 s\93247s01.dat
1 16 0 1.95 0 0 0 1 0 -1 0 -1 0 0 s\93247s02.dat
1 16 0 1.95 0 0 0 -1 0 -1 0 -1 0 0 s\93247s02.dat
1 16 0 1.95 0 0 0 1 0 -1 0 1 0 0 s\93247s02.dat
1 16 0 1.95 0 0 0 -1 0 -1 0 1 0 0 s\93247s02.dat
1 16 0 -1.05 0 1 0 0 0 -1 0 0 0 1 s\93247s01.dat
1 16 0 -1.05 0 1 0 0 0 -1 0 0 0 -1 s\93247s01.dat
1 16 0 -1.05 0 -1 0 0 0 -1 0 0 0 1 s\93247s01.dat
1 16 0 -1.05 0 -1 0 0 0 -1 0 0 0 -1 s\93247s01.dat
1 16 0 -4.05 0 0 0 1 0 -1 0 -1 0 0 s\93247s02.dat
1 16 0 -4.05 0 0 0 -1 0 -1 0 -1 0 0 s\93247s02.dat
1 16 0 -4.05 0 0 0 1 0 -1 0 1 0 0 s\93247s02.dat
1 16 0 -4.05 0 0 0 -1 0 -1 0 1 0 0 s\93247s02.dat
1 16 0 -7.05 0 1 0 0 0 -1 0 0 0 1 s\93247s01.dat
1 16 0 -7.05 0 1 0 0 0 -1 0 0 0 -1 s\93247s01.dat
1 16 0 -7.05 0 -1 0 0 0 -1 0 0 0 1 s\93247s01.dat
1 16 0 -7.05 0 -1 0 0 0 -1 0 0 0 -1 s\93247s01.dat
1 16 0 -10.05 0 0 0 -1 0 -1 0 -1 0 0 s\21459s01.dat
1 16 0 -10.05 0 0 0 -1 0 -1 0 1 0 0 s\21459s01.dat
1 16 0 -10.05 0 0 0 1 0 -1 0 -1 0 0 s\21459s01.dat
1 16 0 -10.05 0 0 0 1 0 -1 0 1 0 0 s\21459s01.dat
0 // Endcaps
1 16 0 14 0 4 0 0 0 -1 0 0 0 4 4-4disc.dat
1 16 0 14 0 4 0 0 0 -5.1 0 0 0 4 4-4cylo.dat
1 16 0 8.9 0 -.353553 0 -.353553 0 -.7 0 .353553 0 -.353553 1-4con7.dat
1 16 0 8.9 0 .353553 0 .353553 0 -.7 0 -.353553 0 .353553 1-4con7.dat
1 16 0 8.9 0 3.5 0 0 0 -22.9 0 0 0 3.5 4-4cyli.dat
1 16 0 -14 0 .353553 0 -.353553 0 .7 0 .353553 0 .353553 1-4con7.dat
1 16 0 -14 0 -.353553 0 .353553 0 .7 0 -.353553 0 -.353553 1-4con7.dat
1 16 0 8.2 0 -2.47487 0 -2.47487 0 1 0 2.47487 0 -2.47487 1-4edge.dat
1 16 0 8.2 0 2.47487 0 2.47487 0 1 0 -2.47487 0 2.47487 1-4edge.dat
1 16 0 -13.3 0 2.47487 0 -2.47487 0 1 0 2.47487 0 2.47487 1-4edge.dat
1 16 0 -13.3 0 -2.47487 0 2.47487 0 1 0 -2.47487 0 -2.47487 1-4edge.dat
1 16 0 -14 0 4 0 0 0 1 0 0 0 4 4-4edge.dat

0 // Guard
1 16 0 -16 -4.5 5.5 0 0 0 0 2 0 -1 0 box5-4a.dat
1 16 0 -16 4.5 5.5 0 0 0 0 2 0 1 0 box5-4a.dat
0 BFC INVERTNEXT
1 16 7.25 -18 0 -1.76777 0 -1.76777 0 4 0 4.5 0 -4.5 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -7.25 -18 0 1.76777 0 1.76777 0 4 0 4.5 0 -4.5 1-4cylo.dat
4 16 5.482 -18 4.5 -5.482 -18 4.5 -4.94 -18 2.435 4.94 -18 2.435
4 16 4.94 -18 2.435 -4.94 -18 2.435 -4.75 -18 0 4.75 -18 0
4 16 4.75 -18 0 -4.75 -18 0 -4.94 -18 -2.435 4.94 -18 -2.435
4 16 4.94 -18 -2.435 -4.94 -18 -2.435 -5.482 -18 -4.5 5.482 -18 -4.5
4 16 4.94 -14 2.435 -4.94 -14 2.435 -5.482 -14 4.5 5.482 -14 4.5
4 16 4.75 -14 0 -4.75 -14 0 -4.94 -14 2.435 4.94 -14 2.435
4 16 4.94 -14 -2.435 -4.94 -14 -2.435 -4.75 -14 0 4.75 -14 0
4 16 5.482 -14 -4.5 -5.482 -14 -4.5 -4.94 -14 -2.435 4.94 -14 -2.435
2 24 5.5 -18 -4.5 5.5 -14 -4.5
2 24 5.5 -18 4.5 5.5 -14 4.5
2 24 -5.5 -18 -4.5 -5.5 -14 -4.5
2 24 -5.5 -18 4.5 -5.5 -14 4.5

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
WUIt	Certify

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2024-06-04 16:23:44

Looks like the ninjas have broken their long katanas

Peter Blomberg [WUIt]

posted a vote of Certify.

2025-07-29 20:33:39
