Official File parts/30075.dat
Part Attributes:
File Header:

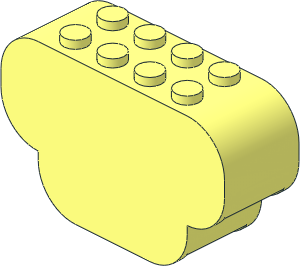

0 Brick 2 x 6 x 3 with Curved Ends
0 Name: 30075.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Part UPDATE 2024-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS basic, Freestyle
0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30075s01.dat
0 // Front Face
4 16 -40 48 -20 40 48 -20 40 0 -20 -40 0 -20
4 16 -40 0 -20 -60 20 -20 -60 28 -20 -40 48 -20
1 16 -40 20 -20 -20 0 0 0 0 -20 0 1 0 48\1-4chrd.dat
1 16 -40 28 -20 0 0 -20 20 0 0 0 1 0 48\1-4chrd.dat
4 16 60 28 -20 60 20 -20 40 0 -20 40 48 -20
1 16 40 20 -20 20 0 0 0 0 -20 0 1 0 48\1-4chrd.dat
1 16 40 28 -20 0 0 20 20 0 0 0 1 0 48\1-4chrd.dat
4 16 -40 52 -20 -20 72 -20 40 48 -20 -40 48 -20
4 16 40 52 -20 40 48 -20 -20 72 -20 20 72 -20
1 16 -20 52 -20 0 0 -20 20 0 0 0 1 0 48\1-4chrd.dat
1 16 20 52 -20 0 0 20 20 0 0 0 1 0 48\1-4chrd.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-06-25 03:25:08
2024-07-02 07:50:44
2024-07-04 15:26:43
2024-08-25 23:01:54
2024-08-26 02:11:10
Release 2024-07
Creative Commons Attribution License information
This part is copyright © Chris Böhnke
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
*reworked outer structure to remove T-junc (including the bottom face, duh)
*using 48 primitives
*replaced a lot of the older tri's and quad's with primitives
*moved the internal surfaces to the x values that line up with the prim's, corrected internal geometry to fit
*due to the change, a few internal faces are now off by max. 0.176 LDU (0.07 mm), though I guess it's within tolerances?
*slightly cleaned up text structure
*added Keywords (or should those be Category? -> FreeStyle does exist as Category)
