Official File parts/30075p01.dat
Part Attributes:
Base Part: 30075.dat
File Header:

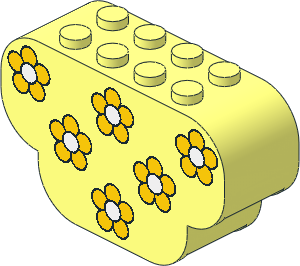

0 Brick 2 x 6 x 3 with Curved Ends with Yellow Flowers with White Centers Pattern
0 Name: 30075p01.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Part UPDATE 2024-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS basic, Bricklink 30075pb01, dacta, Freestyle
0 !KEYWORDS Rebrickable 30075pr0001, Set 4137, Set 4168, Set 4216, Set 9250
0 !KEYWORDS Shrubbery, Tree
0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30075s01.dat
0 // Front Face
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30075p01s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30075p01s02.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-07-05 19:42:32
2024-07-07 09:52:35
maybe even use 1-4chrd?
2024-07-07 10:19:05
In the upper corner a 1-4chrd would cut into the pattern.
2024-07-07 10:23:35
no I meant the lower 1-4discs who could be replaced (would save few vertexes)...
are parts of the flowers circular enough to be replaced with ring prims?
are parts of the flowers circular enough to be replaced with ring prims?
2024-07-07 10:41:20
They are basically 6 overlapping circles, the outer ones have a short straight line going to the center ring.
Will try to replace them.
Will try to replace them.
2024-07-07 16:12:37
I tried to use some 1-8 primitives, like so:
1 0 6.918 -2.248 0 .95 0 0 0 0 .95 0 1 0 1-8ring4.dat
However T-Junc finder insists theses cause a T-junction. Is this caused by the rounding? Can this be ignored or should I avoid using 1-8 prims here?
1 0 6.918 -2.248 0 .95 0 0 0 0 .95 0 1 0 1-8ring4.dat
However T-Junc finder insists theses cause a T-junction. Is this caused by the rounding? Can this be ignored or should I avoid using 1-8 prims here?
2024-07-07 16:50:35
I think you could use a combo of 1-4chrd/ring and ndis or tang, using only one type of circular prim can cause gaps...
*main pattern now mirrored
*reworked sub-files with primitives
*line thickness adjusted
*reworked sub-files with primitives
*line thickness adjusted
2024-07-21 12:53:18
2024-07-21 12:57:04
2024-08-25 23:07:40
2024-08-26 02:11:13
Release 2024-07
Creative Commons Attribution License information
This part is copyright © Chris Böhnke
Licensed under CC BY 4.0
