Unofficial File parts/765c06.dat
Part Attributes:
Base Part: 765.dat
File Header:

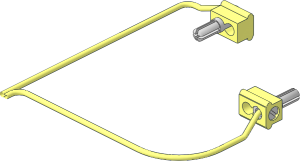

0 Electric Plug (Type 4) Single with Cable End (Formed for 12V Train Track 3240b)
0 Name: 765c06.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP place on 3240b or 3240bc01
0 !HELP 1 16 0 0 0 1 0 0 0 1 0 0 0 1 3240bc01.dat
0 !HELP 1 16 0 0 0 1 0 0 0 1 0 0 0 1 765c06.dat
0 BFC CERTIFY CCW
Show contents
0 // Double Cable End
1 16 -80 20 -100 0 0 1 1 0 0 0 4 0 993.dat
0 // Rear Cable
1 16 -81.3852 20 -96 1.5 0 0 0 0 1.5 0 128 0 4-4cyli.dat
1 16 -75.3852 20 32 -6 0 0 0 6 0 0 0 6 t04q2500.dat
1 16 -75.3852 20 38 0 2.8425 0 1.5 0 0 0 0 1.5 4-4cyli.dat
1 16 -72.5427 17 38 0 0 3 3 0 0 0 -3 0 t16q5000.dat
1 16 -47.1481 9.7283 38 0 -24.2466 .574 0 10.0433 1.3859 -1.5 0 0 4-4cyli.dat
1 16 -46 12.5 38 0 0 -3 -3 0 0 0 -3 0 t16q5000.dat
1 16 -46 9.5 32 6 0 0 0 6 0 0 0 6 t04q2500.dat
1 16 -40 9.5 32 1.5 0 0 0 0 1.5 0 -13 0 4-4cyli.dat
1 16 -40 9.5 20 0 1 0 1 0 0 0 0 1 765c01.dat
0 // Front Cable
1 16 -72.6148 20 -96 -6 0 0 0 6 0 0 0 6 t04q2500.dat
1 16 -72.6148 20 -90 0 82.6148 0 1.5 0 0 0 0 1.5 4-4cyli.dat
1 16 10 20 -60 30 0 0 0 30 0 0 0 -30 48\tm04q0500.dat
1 16 40 20 -60 1.5 0 0 0 0 1.5 0 17.0147 0 4-4cyli.dat
1 16 40 17 -42.9853 0 3 0 3 0 0 0 0 3 t08q5000.dat
1 16 40 10.3787 -32.1213 1.5 0 0 0 8.7426 1.0607 0 -8.7426 1.0607 4-4cyli.dat
1 16 40 12.5 -30 0 3 0 -3 0 0 0 0 -3 t08q5000.dat
1 16 40 9.5 -30 1.5 0 0 0 0 1.5 0 11 0 4-4cyli.dat
1 16 40 9.5 -20 0 -1 0 1 0 0 0 0 -1 765c01.dat
2 24 -80 19.42595 -95.9926 -79.8852 20 -94.845
2 24 -80 20.57405 -95.9926 -79.8852 20 -94.845
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
This part has the following warnings
-
5 decimal places exceeds the recommendation for Shortcut in the library specificationLine text: 2 24 -80 19.42595 -95.9926 -79.8852 20 -94.845
-
5 decimal places exceeds the recommendation for Shortcut in the library specificationLine text: 2 24 -80 20.57405 -95.9926 -79.8852 20 -94.845
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
to connect the 12V rails with sockets (you need these split plugs because the sockets are on different sides of the track)
forgot the edgelines where the two cables merge
2024-09-05 14:00:56
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
