Unofficial File parts/30376.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

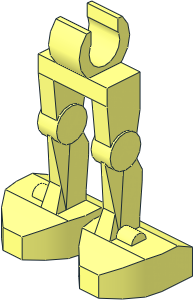

0 Minifig Legs Mechanical
0 Name: 30376.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP clip at y = -38
0 BFC CERTIFY CCW
0 !CATEGORY Minifig
0 !KEYWORDS Attack of the Clones, battle droid, Clip, clip-on, droid, Episode 1
0 !KEYWORDS Episode 2, Phantom Menace, Robot, Star Wars, SW
0 !HISTORY 2003-09-15 [fwcain] fixed type-5 lines (removed extra zeroes)...
0 !HISTORY 2003-12-19 [PTadmin] Official Update 2003-03
0 !HISTORY 2007-06-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2014-11-21 [roland] Auto-corrected with libfix version of LDCad 1.4
0 !HISTORY 2014-12-24 [Philo] BFCed with Windz, closed gap, corrected wrong intersection lines
0 !HISTORY 2015-10-11 [PTadmin] Official Update 2015-01
0 !HISTORY 2024-07-08 [MagFors] Update description, complete reworkShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30376s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30376s01.dat
2 24 -1 1.8 8 1 1.8 8
2 24 -4 8 8 4 8 8
4 16 4 8 8 1 8 0 -1 8 0 -4 8 8
1 16 0 7 0 1 0 0 0 0 -1 0 1 0 rect.dat
1 16 0 6 3 1 0 0 0 1 0 0 0 3 rect3.dat
1 16 0 3.9 6 1 0 0 0 0 -2.1 0 1 0 rect3.dat
1 16 0 1.8 7 0 0 -1 0 1 0 1 0 0 rect2p.dat
4 16 4 3 8 -4 3 8 -1 1.8 8 1 1.8 8
1 16 0 5.5 8 0 0 4 -2.5 0 0 0 -1 0 rect2p.dat
0 // clip
0 BFC INVERTNEXT
1 16 -4 -38 0 0 8 0 4 0 0 0 0 4 5-16cylo.dat
0 BFC INVERTNEXT
1 16 -4 -38 0 0 8 0 4 0 0 0 0 -4 5-16cylo.dat
1 16 4 -38 0 0 -8 0 0 0 6.6 -6.6 0 0 1-8cylo.dat
1 16 4 -38 0 0 -8 0 0 0 -6.6 -6.6 0 0 1-8cylo.dat
1 16 4 -38 0 0 -8 0 0 0 6.6 6.6 0 0 1-8cylo.dat
1 16 4 -38 0 0 -8 0 0 0 -6.6 6.6 0 0 1-8cylo.dat
1 16 0 -29 0 -5 0 0 0 -1 0 0 0 4.3 rect3.dat
1 16 0 -41.25 3.5 0 0 -4 -1.45 0 0 0 1 0 rect.dat
1 16 0 -41.25 -3.5 -4 0 0 0 0 -1.45 0 -1 0 rect.dat
1 16 0 -42.6834 -4.0834 -4 0 0 0 1 0.01657 0 0 -0.58343 rect3.dat
1 16 0 -42.6834 4.0834 4 0 0 0 1 0.01657 0 0 0.58343 rect3.dat
1 16 0 -33.1666 -4.4834 0 0 4 0.16657 -1 0 0.18343 0 0 rect1.dat
2 24 -4 -33 4.3 4 -33 4.3
2 24 -5 -29 -4.3 5 -29 -4.3
4 16 4 -39.8 -3.5 4 -39.5308 -3.6956 -4 -39.5308 -3.6956 -4 -39.8 -3.5
4 16 4 -39.8 3.5 -4 -39.8 3.5 -4 -39.5308 3.6956 4 -39.5308 3.6956
4 16 4 -33.3331 4.6669 4 -33 4.3 -4 -33 4.3 -4 -33.3331 4.6669
4 16 -5 -29 -4.3 5 -29 -4.3 4 -33 -4.3 -4 -33 -4.3
4 16 -4 -33 4.3 4 -33 4.3 5 -29 4.3 -5 -29 4.3
5 24 4 -39.5308 -3.6956 -4 -39.5308 -3.6956 4 -38 -4 4 -39.8 -3.5
5 24 4 -39.5308 3.6956 -4 -39.5308 3.6956 4 -38 4 4 -39.8 3.5
5 24 4 -33.3331 -4.6669 -4 -33.3331 -4.6669 4 -35.4742 -6.0977 4 -33 -4.3
5 24 4 -33.3331 4.6669 -4 -33.3331 4.6669 4 -35.4742 6.0977 4 -33 4.3Status
Needs 1 More Vote (CF)
Current Votes:
Peter Blomberg [WUIt]
This part has the following warnings
- Category: Minifig is retired, use use suitable active Minifig category
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Magnus Forsberg [MagFors]
initially submitted the part.
2024-07-07 06:28:09
Magnus Forsberg [MagFors]
submitted a new version of the part (all votes reset).
2024-07-08 16:26:15
Rework due to 2.0 license.
Peter Blomberg [WUIt]
posted a vote of Certify
2025-11-21 18:16:40
