Unofficial File parts/s/44224s02.dat
File Header:

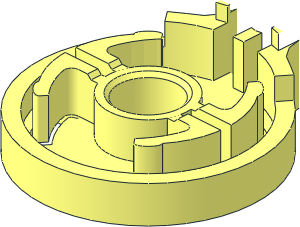

0 ~Rotation Joint 3 Socket
0 Name: s\44224s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-07-08 [GeraldLasser] Subfiled from 44224
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\44224s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\44224s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\44224s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\44224s01.dat
1 16 0 10 0 0 0 -30 0 -1 0 30 0 0 48\1-24tndis.dat
1 16 0 10 0 0 0 30 0 -1 0 30 0 0 48\1-24tndis.dat
3 16 11.8465 10 27.9794 13.213 10 26.6819 11.481 10 27.717
3 16 -11.481 10 27.717 -11.8465 10 27.9794 -10.4792 10 29.276
4 16 -11.481 10 27.717 -10.4792 10 29.276 -7.764 10 30 -7.764 10 28.977
4 16 -10.4792 10 29.276 -9.7396 10 30.9709 -9 10 31 -7.764 10 30
3 16 -9 10 31 -9.7396 10 30.9709 -9 10 32.6658
4 16 -7.764 10 30 -9 10 31 0 10 31 0 10 30
3 16 -13.213 10 26.6819 -11.8465 10 27.9794 -11.481 10 27.717
3 16 11.8465 10 27.9794 11.481 10 27.717 10.4792 10 29.276
4 16 11.481 10 27.717 7.764 10 28.977 7.764 10 30 10.4792 10 29.276
4 16 9 10 31 9.7396 10 30.9709 10.4792 10 29.276 7.764 10 30
3 16 9.7396 10 30.9709 9 10 31 9 10 32.6658
4 16 7.764 10 30 0 10 30 0 10 31 9 10 31
1 16 7.682 -8 28.9065 -1.318 1 0 0 0 2 .3485 0 0 rect.dat
1 16 -7.682 -8 28.9065 1.318 -1 0 0 0 -2 .3485 0 0 rect.dat
2 24 -6.3639 -10 30 -6.364 -10 29.255
2 24 6.3639 -10 30 6.364 -10 29.255
4 16 6.3641 6 25.1871 6.3639 6 30 0 6 30 0 6 26
4 16 -6.3639 6 30 -6.3641 6 25.1871 0 6 26 0 6 30
4 16 6.3639 -10 30 6.364 -10 29.255 9 -10 28.558 9 -10 30
4 16 -6.364 -10 29.255 -6.3639 -10 30 -9 -10 30 -9 -10 28.558
4 16 6.3639 -10 30 6.3639 6 30 6.364 -6 29.255 6.364 -10 29.255
4 16 -6.3639 6 30 -6.3639 -10 30 -6.364 -10 29.255 -6.364 -6 29.255
2 24 -6.3639 6 30 -6.3641 6 25.1871
2 24 6.3639 6 30 6.3641 6 25.1871
2 24 -6.364 -6 29.255 -6.3641 -6 25.1871
2 24 6.364 -6 29.255 6.3641 -6 25.1871
4 16 6.3639 6 30 6.3641 6 25.1871 6.3641 -6 25.1871 6.364 -6 29.255
4 16 -6.364 -6 29.255 -6.3641 -6 25.1871 -6.3641 6 25.1871 -6.3639 6 30
2 24 1.5 -6 31.3 0 -6 31
2 24 -1.5 -6 31.3 0 -6 31
1 16 0 0 31.3 1.5 0 0 0 0 -6 0 -5.3 0 box4-2p.dat
1 16 0 0 0 0 0 -30 0 10 0 -30 0 0 48\3-8cylo.dat
1 16 0 0 0 0 0 30 0 10 0 -30 0 0 48\3-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 26 0 6 0 -26 0 0 48\3-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 -26 0 6 0 -26 0 0 48\3-8cylo.dat
1 16 0 0 0 2 0 0 0 1 0 0 0 -2 48\1-4ring13.dat
1 16 0 0 0 2 0 0 0 1 0 0 0 -2 48\1-4ring14.dat
1 16 0 0 0 -2 0 0 0 1 0 0 0 -2 48\1-4ring13.dat
1 16 0 0 0 -2 0 0 0 1 0 0 0 -2 48\1-4ring14.dat
1 16 0 0 0 2 0 0 0 1 0 0 0 2 48\1-8ring13.dat
1 16 0 0 0 2 0 0 0 1 0 0 0 2 48\1-8ring14.dat
1 16 0 0 0 -2 0 0 0 1 0 0 0 2 48\1-8ring13.dat
1 16 0 0 0 -2 0 0 0 1 0 0 0 2 48\1-8ring14.dat
0 BFC INVERTNEXT
1 16 0 -6 0 6.7293 0 25.1141 0 12 0 25.1141 0 -6.7293 48\1-16cylo.dat
0 BFC INVERTNEXT
1 16 0 6 0 -6.7293 0 -25.1141 0 -12 0 25.1141 0 -6.7293 48\1-16cylo.dat
1 16 0 -4 0 9 0 0 0 1 0 0 0 -9 48\4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -4 0 1 0 0 0 1 0 0 0 -1 48\4-4con8.dat
1 16 0 -4 0 1 0 0 0 1 0 0 0 -1 48\4-4ring9.dat
1 16 0 -4 0 1 0 0 0 1 0 0 0 -1 48\4-4ring10.dat
1 16 0 -4 0 0 0 11 0 1 0 -11 0 0 48\1-6edge.dat
1 16 0 -4 0 0 0 -11 0 1 0 -11 0 0 48\1-6edge.dat
1 16 0 -4 0 0 0 11 0 1 0 11 0 0 48\1-6edge.dat
1 16 0 -4 0 0 0 -11 0 1 0 11 0 0 48\1-6edge.dat
2 24 9.526 -4 5.5 10.02 -4 4.5
2 24 -9.526 -4 5.5 -10.02 -4 4.5
2 24 -9.526 -4 -5.5 -10.02 -4 -4.5
2 24 9.526 -4 -5.5 10.02 -4 -4.5
1 16 0 -4 0 11 0 0 0 10 0 0 0 -11 48\4-4cyli.dat
1 16 0 6 0 11 0 0 0 1 0 0 0 -11 48\4-4edge.dat
1 16 0 6 0 1 0 0 0 -1 0 0 0 -1 48\4-4ring8.dat
0 BFC INVERTNEXT
1 16 0 -3 0 8 0 0 0 9 0 0 0 -8 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 6 0 9 0 0 0 4 0 0 0 -9 48\4-4cylo.dat
1 16 0 10 0 9 0 0 0 -1 0 0 0 -9 48\4-4ndis.dat
1 16 0 6 0 11 0 0 0 1 0 0 0 11 4-4ndis.dat
1 16 18.7185 -6 34.5 -9.7185 0 0 0 1 0 0 0 -9.22162 3-16tang.dat
0 BFC INVERTNEXT
1 16 18.7185 -6 34.5 -9.7185 0 0 0 16 0 0 0 -9.22162 3-16cylo.dat
1 16 18.7185 10 34.5 -9.7185 0 0 0 -1 0 0 0 -9.22162 3-16tang.dat
1 16 0 -6 0 18.2624 0 -23.8016 0 16 0 23.8016 0 18.2624 48\1-48cylo.dat
4 16 6.364 -6 29.255 6.3641 -6 25.1871 6.7294 -6 25.1142 9 -6 28.558
3 16 9 -6 32.6658 9 -6 28.558 9.7396 -6 30.9709
3 16 9.7396 -6 30.9709 9 -6 28.558 10.4792 -6 29.276
3 16 10.4792 -6 29.276 9 -6 28.558 11.8465 -6 27.9794
4 16 6.7294 -6 25.1142 9.9488 -6 24.0199 11.8465 -6 27.9794 9 -6 28.558
3 16 11.8465 -6 27.9794 9.9488 -6 24.0199 13.213 -6 26.6819
4 16 14.9992 -6 25.9801 13.213 -6 26.6819 9.9488 -6 24.0199 12.9994 -6 22.5162
4 16 12.9994 -6 22.5162 15.82836634 -6 20.62761388 18.2624 -6 23.8016 14.9992 -6 25.9801
1 16 -18.7185 -6 34.5 9.7185 0 0 0 1 0 0 0 -9.22162 3-16tang.dat
0 BFC INVERTNEXT
1 16 -18.7185 -6 34.5 9.7185 0 0 0 16 0 0 0 -9.22162 3-16cylo.dat
1 16 -18.7185 10 34.5 9.7185 0 0 0 -1 0 0 0 -9.22162 3-16tang.dat
1 16 0 -6 0 -18.2624 0 23.8016 0 16 0 23.8016 0 18.2624 48\1-48cylo.dat
4 16 -6.3641 -6 25.1871 -6.364 -6 29.255 -9 -6 28.558 -6.7293 -6 25.1141
3 16 -9 -6 28.558 -9 -6 32.6658 -9.7396 -6 30.9709
3 16 -9 -6 28.558 -9.7396 -6 30.9709 -10.4792 -6 29.276
3 16 -9 -6 28.558 -10.4792 -6 29.276 -11.8465 -6 27.9794
4 16 -11.8465 -6 27.9794 -9.9488 -6 24.0199 -6.7294 -6 25.1142 -9 -6 28.558
3 16 -9.9488 -6 24.0199 -11.8465 -6 27.9794 -13.213 -6 26.6819
4 16 -9.9488 -6 24.0199 -13.213 -6 26.6819 -14.9992 -6 25.9801 -12.9994 -6 22.5162
4 16 -18.2624 -6 23.8016 -15.8284 -6 20.6276 -12.9994 -6 22.5162 -14.9992 -6 25.9801
2 24 9 -6 28.558 9 -6 34.5
2 24 -9 -6 28.558 -9 -6 34.5
1 16 19.7385 5 22.5075 -1.4745 -1 0 0 0 -5 1.2945 0 0 rect2p.dat
1 16 -19.7385 5 22.5075 1.4745 1 0 0 0 5 1.2945 0 0 rect2p.dat
2 24 18.264 0 23.802 18.2624 -6 23.8016
2 24 -18.264 0 23.802 -18.2624 -6 23.8016
2 24 15.829 0 20.628 15.8284 -6 20.6276
2 24 -15.829 0 20.628 -15.8284 -6 20.6276
2 24 15.8284 -6 20.6276 18.2624 -6 23.8016
2 24 15.829 0 20.628 18.264 0 23.802
2 24 -15.8284 -6 20.6276 -18.2624 -6 23.8016
2 24 -15.829 0 20.628 -18.264 0 23.802
4 16 15.829 0 20.628 18.264 0 23.802 18.2624 -6 23.8016 15.8284 -6 20.6276
4 16 -15.8284 -6 20.6276 -18.2624 -6 23.8016 -18.264 0 23.802 -15.829 0 20.628
2 24 18.385 6 18.385 15.8284 6 20.6276
2 24 18.3846 0 18.3846 15.829 0 20.628
3 16 19.7988 0 19.7988 21.213 0 21.213 18.264 0 23.802
4 16 18.264 0 23.802 15.829 0 20.628 18.3846 0 18.3846 19.7988 0 19.7988
4 16 -15.829 0 20.628 -18.264 0 23.802 -19.7988 0 19.7988 -18.3846 0 18.3846
3 16 -18.264 0 23.802 -21.213 0 21.213 -19.7988 0 19.7988
4 16 18.3846 0 18.3846 15.829 0 20.628 15.8284 6 20.6276 18.385 6 18.385
4 16 -18.3846 6 18.3846 -15.8288 6 20.6284 -15.829 0 20.628 -18.3846 0 18.3846
1 16 6.5467 0 25.1506 0 1 -.18265 -6 0 0 0 0 .03645 rect3.dat
1 16 -6.5467 0 25.1506 0 -1 .18265 -6 0 0 0 0 .03645 rect3.dat
2 24 -18.3846 0 18.3846 -15.829 0 20.628
2 24 -18.3846 6 18.3846 -15.8288 6 20.6284
2 24 10.892 -4 1.5 11 -4 0
2 24 -10.892 -4 1.5 -11 -4 0
2 24 -10.892 -4 -1.5 -11 -4 0
2 24 10.892 -4 -1.5 11 -4 0
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2024-07-07 22:10:26
2024-07-07 22:15:34
2024-07-08 22:38:50
should it be cut in half?
misses at least one complementary condline at the end of the big outer cylo
and the tang at the bottom overlaps
misses at least one complementary condline at the end of the big outer cylo
and the tang at the bottom overlaps
