Unofficial File parts/862ap01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

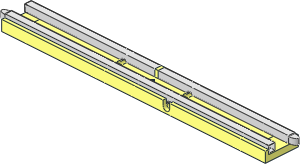

0 Train Track 12V Straight Insert Type 2 with Isolation and Black Triangle Pattern
0 Name: 862ap01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP There exist 2 more variants of this part,
0 !HELP one without a black top triangle at the part center
0 !HELP and another with a black top triangle at one end.
0 !HELP Note that the central underside rim fully extends
0 !HELP to the part bottom (different than 3240a, 3240b)
0 BFC CERTIFY CCW
0 !CATEGORY Train
0 !KEYWORDS Set 7860
0 !CMDLINE -c7
0 !HISTORY 2024-07-12 [Blechtaler] made from 862a.dat by [Steffen]Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\862as01.dat
0 // Pattern
3 0 -12 8 -6 12 8 -6 0 8 6
3 16 0 8 6 2 8 8 -2 8 8
4 16 -2 8 8 -35 8 8 -12 8 -6 0 8 6
3 16 -12 8 -6 -35 8 8 -35 8 0
3 16 -12 8 -6 -35 8 0 -35 8 -8
3 16 -12 8 -6 -35 8 -8 -2 8 -8
4 16 12 8 -6 -12 8 -6 -2 8 -8 2 8 -8
3 16 12 8 -6 2 8 -8 35 8 -8
3 16 12 8 -6 35 8 -8 35 8 0
3 16 12 8 -6 35 8 0 35 8 8
4 16 35 8 8 2 8 8 0 8 6 12 8 -6Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Rene Rechthaler [Blechtaler]
initially submitted the part.
2024-07-12 20:33:40
made from the old official 862a
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2024-07-20 12:19:54
stud4 with fillets
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2024-08-03 13:24:44
subfiled the base
