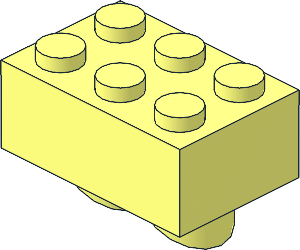

0 Electric Train 12V Signal Light Brick 2 x 3
0 Name: 70022.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP place plug 70423.dat
0 !HELP 1 16 -30 10 0 0 0 -1 0 1 0 1 0 0 70423.dat
0 BFC CERTIFY CCW
0 !KEYWORDS green, red, Stop
0 !CMDLINE -c0
0 !HISTORY 2009-12-29 [PTadmin] Official Update 2009-03
0 !HISTORY 2012-02-13 [PTadmin] Renamed from 988
0 !HISTORY 2012-02-14 [Steffen] replaced color 383 by 494
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2024-07-16 [Blechtaler] used cyls instead of slanted cyli
