Unofficial File parts/862b.dat
Part Attributes:

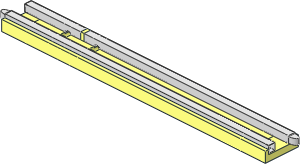

Train Track 12V Straight Insert Type 3 with Isolation
File Header:
0 Train Track 12V Straight Insert Type 3 with Isolation 0 Name: 862b.dat 0 Author: Rene Rechthaler [Blechtaler] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 !HELP This part doesnt exist unpatterned. 0 !HELP There exist 3 more variants of this part, 0 !HELP this part with a black top triangle at the isolation, 0 !HELP one with the isolation at the center and its 0 !HELP pattern, with a black top triangle at the part center. 0 !HELP Note that the central underside rim fully extends 0 !HELP to the part bottom (different than 3240a, 3240b) 0 !HELP place 2775c01 0 !HELP 1 16 -90 9.5 20 1 0 0 0 1 0 0 0 1 2775c01.dat 0 !HELP place 2x 765c01.dat 0 !HELP 1 16 -107.5 9.5 20 0 1 0 1 0 0 0 0 1 765c01.dat 0 !HELP 1 16 -72.5 9.5 20 0 -1 0 1 0 0 0 0 1 765c01.dat 0 BFC CERTIFY CCW 0 !CMDLINE -c7 0 !HISTORY 2024-07-27 [Blechtaler] made from 862bp01
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\862bs01.dat 3 16 -77.5 8 8 -88 8 8 -77.5 8 0 4 16 -77.5 8 0 -88 8 8 -92 8 8 -77.5 8 -8 4 16 -88 8 -8 -77.5 8 -8 -92 8 8 -102.5 8 8 4 16 -88 8 -8 -102.5 8 8 -102.5 8 0 -92 8 -8 3 16 -102.5 8 0 -102.5 8 -8 -92 8 -8
Status:
Not releaseable Needs More Votes (N) Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:

None

Official parents and subparts
Part Events:
Rene Rechthaler [Blechtaler]
Part Header Editor
initially submitted the part.
2024-07-27 13:20:59
this part doesnt exist, but it is an unpatterned version of 862bp01.
Rene Rechthaler [Blechtaler]
Part Header Editor
submitted a new version of the part.
2024-08-03 13:24:44
subfiled the base
Creative Commons Attribution License information

This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
