Official File parts/2849k01.dat
Part Attributes:
Base Part: 2849-f1.dat
File Header:

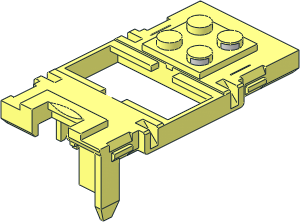

0 ~Electric 9V Battery Box 4 x 14 x 4 - Buttons and Lock Area - without Buttons
0 Name: 2849k01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
