Official File parts/2849k03.dat
Part Attributes:
Base Part: 2849-f1.dat
File Header:

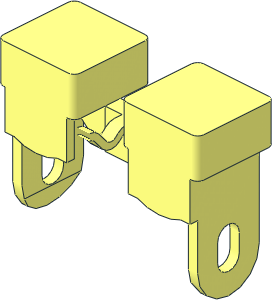

0 ~Electric 9V Battery Box 4 x 14 x 4 - Buttons and Lock Area - Buttons
0 Name: 2849k03.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
1 16 0 0 60 1 0 0 0 1 0 0 0 1 s\2849s02.dat
1 16 0 0 60 -1 0 0 0 1 0 0 0 1 s\2849s02.dat
4 16 7.5 -30 62 -7.5 -30 62 -7.5 -30 62.5 7.5 -30 62.5
4 16 7.5 -30 58 7.5 -30 57.5 -7.5 -30 57.5 -7.5 -30 58
4 16 7.5 -30 58 -7.5 -30 58 -7.5 -30 62 7.5 -30 62
2 24 -7.5 -30 57.5 7.5 -30 57.5
2 24 -7.5 -30 62.5 7.5 -30 62.5
4 16 -7.5 -42 62 -7.5 -42 58 -2 -42 57.5 -2 -42 62.5
4 16 2 -42 62.5 -2 -42 62.5 -2 -42 57.5 2 -42 57.5
3 16 -7.5 -42 62.5 -7.5 -42 62 -2 -42 62.5
3 16 -7.5 -42 58 -7.5 -42 57.5 -2 -42 57.5
3 16 2 -42 57.5 7.5 -42 57.5 7.5 -42 58
3 16 2 -42 62.5 7.5 -42 62 7.5 -42 62.5
4 16 7.5 -42 58 7.5 -42 62 2 -42 62.5 2 -42 57.5
4 16 2 -38 62.5 2 -42 62.5 7.5 -42 62.5 7.5 -30 62.5
4 16 -2 -38 62.5 2 -38 62.5 7.5 -30 62.5 -7.5 -30 62.5
4 16 -2 -42 62.5 -2 -38 62.5 -7.5 -30 62.5 -7.5 -42 62.5
2 24 -2 -42 62.5 -7.5 -42 62.5
2 24 7.5 -42 62.5 2 -42 62.5
2 24 2 -42 62.5 2 -38 62.5
2 24 -2 -42 62.5 -2 -38 62.5
2 24 -7.5 -42 57.5 -2 -42 57.5
2 24 2 -42 57.5 7.5 -42 57.5
4 16 7.5 -42 57.5 2 -42 57.5 2 -38 57.5 7.5 -30 57.5
4 16 7.5 -30 57.5 2 -38 57.5 -2 -38 57.5 -7.5 -30 57.5
4 16 -7.5 -30 57.5 -2 -38 57.5 -2 -42 57.5 -7.5 -42 57.5
1 16 0 0 60 1 0 0 0 1 0 0 0 1 s\2849s03.dat
1 16 0 0 60 1 0 0 0 1 0 0 0 -1 s\2849s03.dat
