Official File parts/5565.dat
Part Attributes:
File Header:

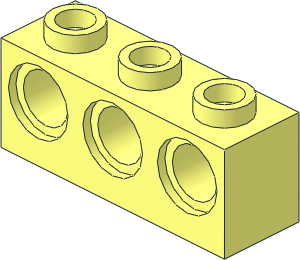

0 Technic Brick 1 x 3 with Holes
0 Name: 5565.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-08-02 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-08-02 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug2-1x3.dat
1 16 0 24 0 0 0 30 0 -24 0 10 0 0 box3u2p.dat
1 16 0 10 0 1 0 0 0 0 1 0 -1 0 connhole.dat
1 16 20 10 0 1 0 0 0 0 1 0 -1 0 connhole.dat
1 16 -20 10 0 1 0 0 0 0 1 0 -1 0 connhole.dat
1 16 0 10 -10 9 0 0 0 0 9 0 1 0 4-4ndis.dat
1 16 20 10 -10 9 0 0 0 0 9 0 1 0 4-4ndis.dat
1 16 -20 10 -10 9 0 0 0 0 9 0 1 0 4-4ndis.dat
2 24 -30 24 -10 30 24 -10
4 16 -9 1 -10 -11 1 -10 -11 19 -10 -9 19 -10
4 16 11 1 -10 9 1 -10 9 19 -10 11 19 -10
4 16 -30 24 -10 30 24 -10 29 19 -10 -29 19 -10
4 16 -30 0 -10 -30 24 -10 -29 19 -10 -29 1 -10
4 16 -30 0 -10 -29 1 -10 29 1 -10 30 0 -10
4 16 30 0 -10 29 1 -10 29 19 -10 30 24 -10
1 16 20 10 10 9 0 0 0 0 9 0 -1 0 4-4ndis.dat
1 16 -20 10 10 9 0 0 0 0 9 0 -1 0 4-4ndis.dat
2 24 30 24 10 -30 24 10
4 16 -11 19 10 -11 1 10 -9 1 10 -9 19 10
4 16 9 19 10 9 1 10 11 1 10 11 19 10
4 16 29 19 10 30 24 10 -30 24 10 -29 19 10
4 16 -29 19 10 -30 24 10 -30 0 10 -29 1 10
4 16 29 1 10 -29 1 10 -30 0 10 30 0 10
1 16 0 10 10 9 0 0 0 0 9 0 -1 0 4-4ndis.dat
4 16 29 19 10 29 1 10 30 0 10 30 24 10
1 16 0 24 0 26 0 0 0 1 0 0 0 6 recte4.dat
4 16 -30 24 -10 -26 24 -6 26 24 -6 30 24 -10
4 16 30 24 -10 26 24 -6 26 24 6 30 24 10
4 16 -30 24 10 30 24 10 26 24 6 -26 24 6
4 16 -26 24 -6 -30 24 -10 -30 24 10 -26 24 6
1 16 0 10 6 8.5 0 0 0 0 8.5 0 -12 0 2-4cylo.dat
1 16 5 23.7 6 1 0 0 0 8.4223 0 0 0 -1 ridge.dat
2 24 6.5 15.2777 6 6.5 15.2777 5
2 24 6.5 15.2777 5 6.0104 16.0104 4.5104
2 24 3.5 17.688 6 3.5 17.688 5
2 24 3.5 17.688 5 5 16.6856 3.5
2 24 5 16.6856 3.5 6.0104 16.0104 4.5104
1 16 5 23.7 -6 1 0 0 0 8.4223 0 0 0 1 ridge.dat
2 24 6.5 15.2777 -5 6.5 15.2777 -6
2 24 6.0104 16.0104 -4.5104 6.5 15.2777 -5
2 24 3.5 17.688 -5 3.5 17.688 -6
2 24 5 16.6856 -3.5 3.5 17.688 -5
2 24 6.0104 16.0104 -4.5104 5 16.6856 -3.5
1 16 20 10 6 -8.5 0 0 0 0 8.5 0 -12 0 3-8cylo.dat
1 16 11.5 6.5 0 0 1 0 0 0 -3.5 -6 0 0 rect3.dat
1 16 15 23.7 6 -1 0 0 0 8.4223 0 0 0 -1 ridge.dat
2 24 13.5 15.2777 5 13.5 15.2777 6
2 24 13.9897 16.0104 4.5104 13.5 15.2777 5
2 24 16.5 17.688 5 16.5 17.688 6
2 24 15 16.6856 3.5 16.5 17.688 5
2 24 13.9897 16.0104 4.5104 15 16.6856 3.5
1 16 15 23.7 -6 -1 0 0 0 8.4223 0 0 0 1 ridge.dat
2 24 13.5 15.2777 -6 13.5 15.2777 -5
2 24 13.5 15.2777 -5 13.9897 16.0104 -4.5104
2 24 16.5 17.688 -6 16.5 17.688 -5
2 24 16.5 17.688 -5 15 16.6856 -3.5
2 24 15 16.6856 -3.5 13.9897 16.0104 -4.5104
2 24 26 16.0173 -6 26 16.0173 6
4 16 26 16.0173 -6 26 16.0173 6 26 24 6 26 24 -6
1 16 8.5 6.5 0 0 -1 0 0 0 -3.5 6 0 0 rect3.dat
1 16 10 3 0 -1.5 0 0 0 -1 0 0 0 6 rect2p.dat
1 16 -5 23.7 6 -1 0 0 0 8.4223 0 0 0 -1 ridge.dat
2 24 -6.5 15.2777 5 -6.5 15.2777 6
2 24 -6.0104 16.0104 4.5104 -6.5 15.2777 5
2 24 -3.5 17.688 5 -3.5 17.688 6
2 24 -5 16.6856 3.5 -3.5 17.688 5
2 24 -6.0104 16.0104 4.5104 -5 16.6856 3.5
1 16 -5 23.7 -6 -1 0 0 0 8.4223 0 0 0 1 ridge.dat
2 24 -6.5 15.2777 -6 -6.5 15.2777 -5
2 24 -6.5 15.2777 -5 -6.0104 16.0104 -4.5104
2 24 -3.5 17.688 -6 -3.5 17.688 -5
2 24 -3.5 17.688 -5 -5 16.6856 -3.5
2 24 -5 16.6856 -3.5 -6.0104 16.0104 -4.5104
1 16 -20 10 6 8.5 0 0 0 0 8.5 0 -12 0 3-8cylo.dat
1 16 -11.5 6.5 0 0 -1 0 0 0 -3.5 -6 0 0 rect3.dat
1 16 -15 23.7 6 1 0 0 0 8.4223 0 0 0 -1 ridge.dat
2 24 -13.5 15.2777 6 -13.5 15.2777 5
2 24 -13.5 15.2777 5 -13.9897 16.0104 4.5104
2 24 -16.5 17.688 6 -16.5 17.688 5
2 24 -16.5 17.688 5 -15 16.6856 3.5
2 24 -15 16.6856 3.5 -13.9897 16.0104 4.5104
1 16 -15 23.7 -6 1 0 0 0 8.4223 0 0 0 1 ridge.dat
2 24 -13.5 15.2777 -5 -13.5 15.2777 -6
2 24 -13.9897 16.0104 -4.5104 -13.5 15.2777 -5
2 24 -16.5 17.688 -5 -16.5 17.688 -6
2 24 -15 16.6856 -3.5 -16.5 17.688 -5
2 24 -13.9897 16.0104 -4.5104 -15 16.6856 -3.5
2 24 -26 16.0173 6 -26 16.0173 -6
4 16 -26 24 6 -26 16.0173 6 -26 16.0173 -6 -26 24 -6
1 16 -8.5 6.5 0 0 1 0 0 0 -3.5 6 0 0 rect3.dat
1 16 -10 3 0 1.5 0 0 0 -1 0 0 0 6 rect2p.dat
2 24 26 16.0173 -6 26 24 -6
2 24 -26.0104 16.0104 -6 -26 24 -6
2 24 26 24 6 26 16.0173 6
2 24 -26 24 6 -26.0104 16.0104 6
1 16 0 17.2 0 4 0 0 0 1.5 0 0 0 4 4-4cyli.dat
1 16 0 18.7 0 4 0 0 0 -1 0 0 0 4 4-4disc.dat
1 16 0 18.7 0 4 0 0 0 -1 0 0 0 4 4-4edge.dat
2 24 3.253 17.8532 2.1931 2.8284 17.9376 2.8284
2 24 1.5308 18.1956 3.6956 0 18.5 4
2 24 2.8284 17.9376 2.8284 1.5308 18.1956 3.6956
2 24 2.8284 17.9376 -2.8284 1.5308 18.1956 -3.6956
2 24 1.5308 18.1956 -3.6956 0 18.5 -4
2 24 2.8284 17.9376 -2.8284 3.253 17.8532 -2.1931
2 24 -1.5308 18.1956 3.6956 -2.8284 17.9376 2.8284
2 24 -1.5308 18.1956 3.6956 0 18.5 4
2 24 -3.253 17.8532 2.1931 -2.8284 17.9376 2.8284
2 24 -3.253 17.8532 -2.1931 -2.8284 17.9376 -2.8284
2 24 0 18.5 -4 -1.5308 18.1956 -3.6956
2 24 -2.8284 17.9376 -2.8284 -1.5308 18.1956 -3.6956
2 24 3.6956 17.5573 1.5308 3.253 17.8532 2.1931
2 24 4 17.3539 0 3.6956 17.5573 1.5308
2 24 4 17.3539 0 3.6956 17.5573 -1.5308
2 24 3.6956 17.5573 -1.5308 3.253 17.8532 -2.1931
2 24 -3.6956 17.5573 1.5308 -4 17.3539 0
2 24 -3.253 17.8532 2.1931 -3.6956 17.5573 1.5308
2 24 -3.6956 17.5573 -1.5308 -3.253 17.8532 -2.1931
2 24 -3.6956 17.5573 -1.5308 -4 17.3539 0
1 16 20 17.2 0 4 0 0 0 1.5 0 0 0 4 4-4cyli.dat
1 16 20 18.7 0 4 0 0 0 -1 0 0 0 4 4-4disc.dat
1 16 20 18.7 0 4 0 0 0 -1 0 0 0 4 4-4edge.dat
2 24 23.253 17.8532 2.1931 22.8284 17.9376 2.8284
2 24 21.5308 18.1956 3.6956 20 18.5 4
2 24 22.8284 17.9376 2.8284 21.5308 18.1956 3.6956
2 24 22.8284 17.9376 -2.8284 21.5308 18.1956 -3.6956
2 24 21.5308 18.1956 -3.6956 20 18.5 -4
2 24 22.8284 17.9376 -2.8284 23.253 17.8532 -2.1931
2 24 18.4692 18.1956 3.6956 17.1716 17.9376 2.8284
2 24 18.4692 18.1956 3.6956 20 18.5 4
2 24 16.7471 17.8532 2.1931 17.1716 17.9376 2.8284
2 24 16.7471 17.8532 -2.1931 17.1716 17.9376 -2.8284
2 24 20 18.5 -4 18.4692 18.1956 -3.6956
2 24 17.1716 17.9376 -2.8284 18.4692 18.1956 -3.6956
2 24 23.6956 17.5573 1.5308 23.253 17.8532 2.1931
2 24 24 17.3539 0 23.6956 17.5573 1.5308
2 24 24 17.3539 0 23.6956 17.5573 -1.5308
2 24 23.6956 17.5573 -1.5308 23.253 17.8532 -2.1931
2 24 16.3044 17.5573 1.5308 16 17.3539 0
2 24 16.7471 17.8532 2.1931 16.3044 17.5573 1.5308
2 24 16.3044 17.5573 -1.5308 16.7471 17.8532 -2.1931
2 24 16.3044 17.5573 -1.5308 16 17.3539 0
1 16 -20 17.2 0 4 0 0 0 1.5 0 0 0 4 4-4cyli.dat
1 16 -20 18.7 0 4 0 0 0 -1 0 0 0 4 4-4disc.dat
1 16 -20 18.7 0 4 0 0 0 -1 0 0 0 4 4-4edge.dat
2 24 -16.7471 17.8532 2.1931 -17.1716 17.9376 2.8284
2 24 -18.4692 18.1956 3.6956 -20 18.5 4
2 24 -17.1716 17.9376 2.8284 -18.4692 18.1956 3.6956
2 24 -17.1716 17.9376 -2.8284 -18.4692 18.1956 -3.6956
2 24 -18.4692 18.1956 -3.6956 -20 18.5 -4
2 24 -17.1716 17.9376 -2.8284 -16.7471 17.8532 -2.1931
2 24 -21.5308 18.1956 3.6956 -22.8284 17.9376 2.8284
2 24 -21.5308 18.1956 3.6956 -20 18.5 4
2 24 -23.253 17.8532 2.1931 -22.8284 17.9376 2.8284
2 24 -23.253 17.8532 -2.1931 -22.8284 17.9376 -2.8284
2 24 -20 18.5 -4 -21.5308 18.1956 -3.6956
2 24 -22.8284 17.9376 -2.8284 -21.5308 18.1956 -3.6956
2 24 -16.3044 17.5573 1.5308 -16.7471 17.8532 2.1931
2 24 -16 17.3539 0 -16.3044 17.5573 1.5308
2 24 -16 17.3539 0 -16.3044 17.5573 -1.5308
2 24 -16.3044 17.5573 -1.5308 -16.7471 17.8532 -2.1931
2 24 -23.6956 17.5573 1.5308 -24 17.3539 0
2 24 -23.253 17.8532 2.1931 -23.6956 17.5573 1.5308
2 24 -23.6956 17.5573 -1.5308 -23.253 17.8532 -2.1931
2 24 -23.6956 17.5573 -1.5308 -24 17.3539 0
4 16 6.0104 16.0104 6 13.9897 16.0104 6 11.5 3 6 8.5 3 6
3 16 20 18.5 6 26 24 6 26 16.0173 6
4 16 26 24 6 20 18.5 6 13.9897 16.0104 6 6.0104 16.0104 6
3 16 26 24 6 6.0104 16.0104 6 0 18.5 6
4 16 -11.5 3 6 -13.9897 16.0104 6 -6.0104 16.0104 6 -8.5 3 6
3 16 -26 16.0173 6 -26 24 6 -20 18.5 6
4 16 -13.9897 16.0104 6 -20 18.5 6 -26 24 6 -6.0104 16.0104 6
3 16 -26 24 6 0 18.5 6 -6.0104 16.0104 6
3 16 0 18.5 6 -26 24 6 26 24 6
4 16 11.5 3 -6 13.9897 16.0104 -6 6.0104 16.0104 -6 8.5 3 -6
3 16 26 24 -6 20 18.5 -6 26 16.0173 -6
4 16 13.9897 16.0104 -6 20 18.5 -6 26 24 -6 6.0104 16.0104 -6
3 16 0 18.5 -6 6.0104 16.0104 -6 26 24 -6
4 16 -6.0104 16.0104 -6 -13.9897 16.0104 -6 -11.5 3 -6 -8.5 3 -6
3 16 -20 18.5 -6 -26 24 -6 -26 16.0173 -6
4 16 -26 24 -6 -20 18.5 -6 -13.9897 16.0104 -6 -6.0104 16.0104 -6
3 16 -26 24 -6 -6.0104 16.0104 -6 0 18.5 -6
3 16 0 18.5 -6 26 24 -6 -26 24 -6
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-08-02 16:58:07
2024-08-02 21:26:45
oh, where does that come in?
2024-08-02 22:25:55
set 76998-1 and set 76997-1
TJs
2024-08-16 13:22:24
Yes... No visual impact, less surfaces.
2025-04-21 04:03:57
2025-04-23 18:39:42
2025-04-27 06:57:32
Release 2025-04
