Official File parts/u9575.dat
Part Attributes:
File Header:

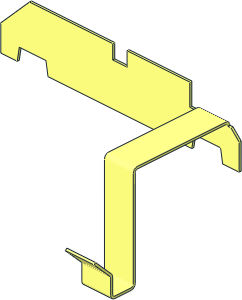

0 ~Electric 9V Battery Box 4 x 14 x 4 - Buttons - Contact, Positive
0 Name: u9575.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
1 16 9.375 -39 36.75 0 0 7.625 0 -2.5 0 -.25 0 0 box2-7.dat
0 BFC INVERTNEXT
1 16 0 -41.5 36.75 0 0 1.75 0 3.25 0 -.25 0 0 box3u2p.dat
1 16 -15.375 -38 36.75 0 3.5 -10.125 0 -3.5 0 -.25 0 0 box2-7.dat
1 16 -27 -31.5 36.75 0 0 -2 0 3 0 -.25 0 0 box2-5.dat
1 16 0 -28.5 36.75 -17.5 0 0 0 -1 0 0 0 .25 rect.dat
1 16 21.25 -31.5 36.75 -3.25 0 0 0 -1 0 0 0 .25 rect.dat
1 16 -21.25 -31.5 36.75 0 0 -3.25 0 -1 0 -.25 0 0 rect.dat
4 16 -24.5 -31.5 37 -24.5 -31.5 36.5 -25 -28.5 36.5 -25 -28.5 37
4 16 18 -31.5 36.5 17.5 -28.5 36.5 17.5 -28.5 37 18 -31.5 37
4 16 25 -28.5 36.5 24.5 -31.5 36.5 24.5 -31.5 37 25 -28.5 37
4 16 -17.5 -28.5 36.5 -18 -31.5 36.5 -18 -31.5 37 -17.5 -28.5 37
2 24 24.5 -31.5 37 25 -28.5 37
2 24 17.5 -28.5 37 18 -31.5 37
2 24 -18 -31.5 37 -17.5 -28.5 37
2 24 24.5 -31.5 36.5 25 -28.5 36.5
2 24 17.5 -28.5 36.5 18 -31.5 36.5
2 24 -18 -31.5 36.5 -17.5 -28.5 36.5
2 24 -25 -28.5 37 -24.5 -31.5 37
2 24 -25 -28.5 36.5 -24.5 -31.5 36.5
1 16 27 -31.5 36.75 0 0 2 0 3 0 -.25 0 0 box2-5.dat
1 16 26.625 -36.5 36.75 .375 0 0 0 1 0 0 0 .25 rect.dat
1 16 18.125 -36.5 36.75 1.125 0 0 0 1 0 0 0 .25 rect.dat
4 16 27 -36.5 37 27 -36.5 36.5 29 -34.5 36.5 29 -34.5 37
2 24 29 -34.5 37 27 -36.5 37
2 24 27 -36.5 36.5 29 -34.5 36.5
4 16 29 -34.5 37 29 -28.5 37 25 -28.5 37 24.5 -31.5 37
4 16 27 -36.5 37 29 -34.5 37 24.5 -31.5 37 26.25 -36.5 37
4 16 19.25 -36.5 37 26.25 -36.5 37 24.5 -31.5 37 18 -31.5 37
4 16 1.75 -38.25 37 1.75 -41.5 37 17 -41.5 37 17 -36.5 37
4 16 -1.75 -38.25 37 -18 -31.5 37 -22 -41.5 37 -1.75 -41.5 37
4 16 -22 -41.5 37 -18 -31.5 37 -24.5 -31.5 37 -29 -34.5 37
4 16 -29 -28.5 37 -29 -34.5 37 -24.5 -31.5 37 -25 -28.5 37
4 16 18 -31.5 37 -18 -31.5 37 17 -36.5 37 19.25 -36.5 37
4 16 17.5 -28.5 37 -17.5 -28.5 37 -18 -31.5 37 18 -31.5 37
4 16 -1.75 -38.25 37 1.75 -38.25 37 17 -36.5 37 -18 -31.5 37
4 16 25 -28.5 36.5 29 -28.5 36.5 29 -34.5 36.5 24.5 -31.5 36.5
4 16 24.5 -31.5 36.5 29 -34.5 36.5 27 -36.5 36.5 26.25 -36.5 36.5
4 16 24.5 -31.5 36.5 26.25 -36.5 36.5 19.25 -36.5 36.5 18 -31.5 36.5
4 16 17 -41.5 36.5 1.75 -41.5 36.5 1.75 -38.25 36.5 17 -36.5 36.5
4 16 -22 -41.5 36.5 -18 -31.5 36.5 -1.75 -38.25 36.5 -1.75 -41.5 36.5
4 16 -24.5 -31.5 36.5 -18 -31.5 36.5 -22 -41.5 36.5 -29 -34.5 36.5
4 16 -24.5 -31.5 36.5 -29 -34.5 36.5 -29 -28.5 36.5 -25 -28.5 36.5
4 16 17 -36.5 36.5 -18 -31.5 36.5 18 -31.5 36.5 19.25 -36.5 36.5
4 16 -18 -31.5 36.5 -17.5 -28.5 36.5 17.5 -28.5 36.5 18 -31.5 36.5
4 16 17 -36.5 36.5 1.75 -38.25 36.5 -1.75 -38.25 36.5 -18 -31.5 36.5
0 // Curved Part
1 16 26.25 -36.5 36 0 -7 0 -1 0 0 0 0 1 1-4cylo.dat
0 BFC INVERTNEXT
1 16 26.25 -36.5 36 0 -7 0 -.5 0 0 0 0 .5 1-4cylo.dat
1 16 26.25 -36.5 36 0 -1 0 -.5 0 0 0 0 .5 1-4ring1.dat
1 16 19.25 -36.5 36 0 1 0 -.5 0 0 0 0 .5 1-4ring1.dat
1 16 22.75 -37.25 36 3.5 0 0 0 0 -.25 0 -21.5 0 box4o8a.dat
1 16 26.25 -36.5 14.5 0 -7 0 0 0 -1 -1 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 26.25 -36.5 14.5 0 -7 0 0 0 -.5 -.5 0 0 1-4cylo.dat
1 16 26.25 -36.5 14.5 0 -1 0 0 0 -.5 -.5 0 0 1-4ring1.dat
1 16 19.25 -36.5 14.5 0 1 0 0 0 -.5 -.5 0 0 1-4ring1.dat
1 16 22.75 -36.5 13.75 3.5 0 0 0 22 0 0 0 -.25 box4o8a.dat
1 16 26.25 -14.5 13 0 -7 0 0 0 1 1 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 26.25 -14.5 13 0 -7 0 0 0 .5 .5 0 0 1-4cylo.dat
1 16 26.25 -14.5 13 0 -1 0 0 0 .5 .5 0 0 1-4ring1.dat
1 16 19.25 -14.5 13 0 1 0 0 0 .5 .5 0 0 1-4ring1.dat
1 16 22.75 -13.75 13 3.5 0 0 0 0 -.25 0 -4 0 box4o8a.dat
1 16 26.25 -14.5 9 0 -7 0 1 0 0 0 0 -1 1-4cylo.dat
0 BFC INVERTNEXT
1 16 26.25 -14.5 9 0 -7 0 .5 0 0 0 0 -.5 1-4cylo.dat
1 16 26.25 -14.5 9 0 -1 0 .5 0 0 0 0 -.5 1-4ring1.dat
1 16 19.25 -14.5 9 0 1 0 .5 0 0 0 0 -.5 1-4ring1.dat
1 16 22.75 -14.5 8.25 3.5 0 0 0 -3.5 0 0 0 .25 box4o8a.dat
1 16 26.25 -18 7.5 0 -7 0 0 0 -1 1 0 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 26.25 -18 7.5 0 -7 0 0 0 -.5 .5 0 0 1-8cylo.dat
1 16 26.25 -18 7.5 0 -1 0 0 0 -.5 .5 0 0 1-8ring1.dat
1 16 19.25 -18 7.5 0 1 0 0 0 -.5 .5 0 0 1-8ring1.dat
1 16 22.75 -18.5303 8.0303 3.5 0 0 0 -3.85352 -.17678 0 -3.85352 .17678 box5-4a.dat
