Official File parts/u9643.dat
Part Attributes:
File Header:

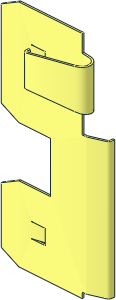

0 ~Electric 9V Battery Box 4 x 14 x 4 Bottom - Contact Vertical Long
0 Name: u9643.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
1 16 11 8.5 .25 .5 0 0 0 -1 0 0 0 -.25 rect2p.dat
1 16 1.5 9.25 .25 0 0 9 0 .75 0 .25 0 0 box2-5.dat
4 16 -12.5 7.5 .5 -7.5 10 .5 -7.5 10 0 -12.5 7.5 0
2 24 -12.5 7.5 .5 -7.5 10 .5
2 24 -7.5 10 0 -12.5 7.5 0
1 16 -12.5 0 .25 0 1 0 0 0 7.5 .25 0 0 rect.dat
4 16 -7.5 -10 0 -7.5 -10 .5 -12.5 -7.5 .5 -12.5 -7.5 0
2 24 -7.5 -10 0 -12.5 -7.5 0
2 24 -12.5 -7.5 .5 -7.5 -10 .5
0 BFC INVERTNEXT
1 16 -7.5 -16.75 .25 0 9 0 0 0 6.75 .25 0 0 box3u2p.dat
4 16 -12.5 -26 .5 -7.5 -23.5 .5 -7.5 -23.5 0 -12.5 -26 0
2 24 -12.5 -26 .5 -7.5 -23.5 .5
2 24 -7.5 -23.5 0 -12.5 -26 0
1 16 -12.5 -37.5 .25 0 1 0 0 0 11.5 .25 0 0 rect.dat
4 16 -7.5 -51.5 0 -7.5 -51.5 .5 -12.5 -49 .5 -12.5 -49 0
2 24 -7.5 -51.5 0 -12.5 -49 0
2 24 -12.5 -49 .5 -7.5 -51.5 .5
1 16 1.5 -49.21 .25 0 0 9 0 -2.29 0 .25 0 0 box2-5.dat
1 16 10.5 -31.29 .25 0 -1 0 3.29 0 0 0 0 .25 rect.dat
1 16 11 -28 .25 .5 0 0 0 1 0 0 0 .25 rect2p.dat
1 16 -4 0 .25 0 4 0 2 0 0 0 1 .25 box5-2p.dat
0 BFC INVERTNEXT
1 16 -4 0 .25 0 4 0 0 0 2 -.25 0 0 box3u4a.dat
1 16 -4 -41 .25 0 4 0 2 0 0 0 1 .25 box5-2p.dat
0 BFC INVERTNEXT
1 16 -4 -41 .25 0 4 0 0 0 2 -.25 0 0 box3u4a.dat
4 16 -7.5 -10 0 -12.5 -7.5 0 -12.5 7.5 0 -7.5 10 0
4 16 -4 2 0 -4 -2 0 -7.5 -10 0 -7.5 10 0
4 16 -7.5 -10 0 -4 -2 0 0 -2 0 1.5 -10 0
4 16 0 2 0 -4 2 0 -7.5 10 0 10.5 10 0
4 16 0 2 0 10.5 10 0 10.5 8.5 0 0 -2 0
4 16 1.5 -10 0 0 -2 0 10.5 8.5 0 11.5 8.5 0
4 16 1.5 -23.5 0 1.5 -10 0 11.5 8.5 0 11.5 -28 0
4 16 -12.5 -26 0 -7.5 -23.5 0 -7.5 -51.5 0 -12.5 -49 0
4 16 -4 -43 0 -7.5 -51.5 0 -7.5 -23.5 0 -4 -39 0
4 16 0 -39 0 -4 -39 0 -7.5 -23.5 0 1.5 -23.5 0
4 16 0 -39 0 1.5 -23.5 0 10.5 -28 0 10.5 -34.58 0
4 16 0 -39 0 10.5 -34.58 0 10.5 -46.92 0 0 -43 0
4 16 0 -43 0 10.5 -46.92 0 10.5 -51.5 0 -7.5 -51.5 0
3 16 -7.5 -51.5 0 -4 -43 0 0 -43 0
3 16 10.5 -28 0 1.5 -23.5 0 11.5 -28 0
4 16 -12.5 7.5 .5 -12.5 -7.5 .5 -7.5 -10 .5 -7.5 10 .5
4 16 -7.5 -10 .5 -4 -2 .5 -4 2 .5 -7.5 10 .5
4 16 0 -2 .5 -4 -2 .5 -7.5 -10 .5 1.5 -10 .5
4 16 -7.5 10 .5 -4 2 .5 0 2 .5 10.5 10 .5
4 16 10.5 8.5 .5 10.5 10 .5 0 2 .5 0 -2 .5
4 16 10.5 8.5 .5 0 -2 .5 1.5 -10 .5 11.5 8.5 .5
4 16 11.5 8.5 .5 1.5 -10 .5 1.5 -23.5 .5 11.5 -28 .5
4 16 -7.5 -51.5 .5 -7.5 -23.5 .5 -12.5 -26 .5 -12.5 -49 .5
4 16 -7.5 -23.5 .5 -7.5 -51.5 .5 -4 -43 .5 -4 -39 .5
4 16 -7.5 -23.5 .5 -4 -39 .5 0 -39 .5 1.5 -23.5 .5
4 16 10.5 -28 .5 1.5 -23.5 .5 0 -39 .5 10.5 -34.58 .5
4 16 10.5 -46.92 .5 10.5 -34.58 .5 0 -39 .5 0 -43 .5
4 16 10.5 -51.5 .5 10.5 -46.92 .5 0 -43 .5 -7.5 -51.5 .5
3 16 -4 -43 .5 -7.5 -51.5 .5 0 -43 .5
3 16 1.5 -23.5 .5 10.5 -28 .5 11.5 -28 .5
5 24 -4 -43 0 -4 -39 0 0 -39 1 -12.5 -49 0
5 24 -4 2 0 -4 -2 0 0 2 1 -12.5 -7.5 0
5 24 -4 -2 .5 -4 2 .5 0 2 1.5 -12.5 -7.5 .5
5 24 -4 -43 .5 -4 -39 .5 0 -39 1.5 -12.5 -49 .5
1 16 0 -41 0 1 0 0 0 1 0 0 0 1 s\u9641s01.dat
4 16 15.69135 -28 2.03805 15.69135 8.5 2.03805 11.5 8.5 .5 11.5 -28 .5
4 16 11.8827 -28 .0761 11.8827 8.5 .0761 15.8827 8.5 1.5761 15.8827 -28 1.5761
4 16 11.8827 -28 .0761 11.5 -28 0 11.5 8.5 0 11.8827 8.5 .0761
2 24 15.69135 -28 2.03805 11.5 -28 .5
2 24 11.8827 -28 .0761 15.8827 -28 1.5761
2 24 11.5 -28 0 11.8827 -28 .0761
4 16 11.8827 -28 .0761 15.8827 -28 1.5761 15.69135 -28 2.03805 11.5 -28 .5
3 16 11.5 -28 .5 11.5 -28 0 11.8827 -28 .0761
2 24 15.69135 8.5 2.03805 11.5 8.5 .5
2 24 11.8827 8.5 .0761 15.8827 8.5 1.5761
2 24 11.5 8.5 0 11.8827 8.5 .0761
3 16 11.5 8.5 .5 11.8827 8.5 .0761 11.5 8.5 0
4 16 15.69135 8.5 2.03805 15.8827 8.5 1.5761 11.8827 8.5 .0761 11.5 8.5 .5
5 24 11.5 -28 0 11.5 8.5 0 10.5 -28 0 11.8827 -28 .0761
5 24 11.8827 -28 .0761 11.8827 8.5 .0761 11.5 8.5 0 15.8827 8.5 1.5761
5 24 15.8827 -28 1.5761 15.8827 8.5 1.5761 16.2071 8.5 1.7929 11.8827 8.5 .0761
0 BFC INVERTNEXT
1 16 15.5 8.5 2.5 .5 0 0 0 -36.5 0 0 0 -.5 3-16cylo.dat
1 16 15.5 8.5 2.5 1 0 0 0 -36.5 0 0 0 -1 3-16cylo.dat
1 16 15.5 8.5 2.5 .5 0 0 0 -1 0 0 0 -.5 3-16ring1.dat
1 16 15.5 -28 2.5 .5 0 0 0 1 0 0 0 -.5 3-16ring1.dat
1 16 16.25 -9.75 2.5 .25 0 0 0 0 -18.25 0 .75 0 box5-4a.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-08-02 22:58:18
2024-08-07 15:43:19
2024-08-07 16:24:15
2024-09-16 18:27:01
2024-09-30 03:57:41
Release 2024-08
