Official File parts/u9645.dat
Part Attributes:
File Header:

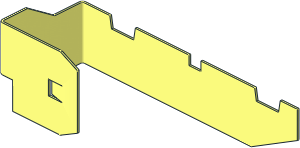

0 ~Electric 9V Battery Box 4 x 14 x 4 Bottom - Contact Positive
0 Name: u9645.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
1 16 -8 -12.5 22.25 0 0 24.5 0 -1 0 .25 0 0 rect3.dat
4 16 16.5 -12.5 22 16.5 -12.5 22.5 30 -19.5 22.5 30 -19.5 22
2 24 16.5 -12.5 22.5 30 -19.5 22.5
2 24 16.5 -12.5 22 30 -19.5 22
1 16 27.5 -23.25 22.25 0 0 2.5 0 -3.75 0 .25 0 0 box2-5.dat
1 16 21.25 -24 22.25 0 0 3.25 0 1 0 -.25 0 0 rect.dat
0 BFC INVERTNEXT
1 16 0 -27 22.25 0 0 1.75 0 2.5 0 -.25 0 0 box3u2p.dat
1 16 9.625 -27 22.25 0 0 7.875 0 1 0 -.25 0 0 rect3.dat
1 16 -9.625 -27 22.25 0 0 -7.875 0 1 0 -.25 0 0 rect3.dat
1 16 -28.75 -27 22.25 0 0 3.75 0 1 0 -.25 0 0 rect3.dat
1 16 -21.25 -24 22.25 3.25 0 0 0 1 0 0 0 .25 rect.dat
4 16 24.5 -24 22.5 24.5 -24 22 25 -27 22 25 -27 22.5
4 16 -18 -24 22.5 -18 -24 22 -17.5 -27 22 -17.5 -27 22.5
4 16 -25 -27 22 -24.5 -24 22 -24.5 -24 22.5 -25 -27 22.5
4 16 17.5 -27 22.5 17.5 -27 22 18 -24 22 18 -24 22.5
2 24 18 -24 22.5 17.5 -27 22.5
2 24 17.5 -27 22 18 -24 22
2 24 24.5 -24 22.5 25 -27 22.5
2 24 25 -27 22 24.5 -24 22
2 24 -18 -24 22.5 -17.5 -27 22.5
2 24 -25 -27 22.5 -24.5 -24 22.5
2 24 -25 -27 22 -24.5 -24 22
2 24 -18 -24 22 -17.5 -27 22
4 16 24.5 -24 22.5 25 -27 22.5 30 -27 22.5 30 -19.5 22.5
4 16 18 -24 22.5 24.5 -24 22.5 30 -19.5 22.5 16.5 -12.5 22.5
4 16 17.5 -27 22.5 18 -24 22.5 1.75 -24.5 22.5 1.75 -27 22.5
4 16 -17.5 -27 22.5 -1.75 -27 22.5 -1.75 -24.5 22.5 -18 -24 22.5
4 16 -32.5 -27 22.5 -25 -27 22.5 -24.5 -24 22.5 -32.5 -12.5 22.5
3 16 18 -24 22.5 16.5 -12.5 22.5 1.75 -24.5 22.5
3 16 -1.75 -24.5 22.5 1.75 -24.5 22.5 16.5 -12.5 22.5
4 16 -1.75 -24.5 22.5 16.5 -12.5 22.5 -32.5 -12.5 22.5 -18 -24 22.5
3 16 -18 -24 22.5 -32.5 -12.5 22.5 -24.5 -24 22.5
4 16 30 -27 22 25 -27 22 24.5 -24 22 30 -19.5 22
4 16 30 -19.5 22 24.5 -24 22 18 -24 22 16.5 -12.5 22
4 16 1.75 -24.5 22 18 -24 22 17.5 -27 22 1.75 -27 22
4 16 -1.75 -24.5 22 -1.75 -27 22 -17.5 -27 22 -18 -24 22
4 16 -24.5 -24 22 -25 -27 22 -32.5 -27 22 -32.5 -12.5 22
3 16 16.5 -12.5 22 18 -24 22 1.75 -24.5 22
3 16 1.75 -24.5 22 -1.75 -24.5 22 16.5 -12.5 22
4 16 -32.5 -12.5 22 16.5 -12.5 22 -1.75 -24.5 22 -18 -24 22
3 16 -32.5 -12.5 22 -18 -24 22 -24.5 -24 22
1 16 -32.5 -27 21.5 -.5 0 0 0 1 0 0 0 .5 1-4ring1.dat
0 BFC INVERTNEXT
1 16 -32.5 -27 21.5 -.5 0 0 0 14.5 0 0 0 .5 1-4cylo.dat
1 16 -32.5 -27 21.5 -1 0 0 0 14.5 0 0 0 1 1-4cylo.dat
1 16 -32.5 -12.5 21.5 -.5 0 0 0 -1 0 0 0 .5 1-4ring1.dat
1 16 -33.25 -12.5 15.82 .25 0 0 0 -1 0 0 0 -5.68 rect3.dat
1 16 -33.25 -27 17.68 -.25 0 0 0 1 0 0 0 -3.82 rect3.dat
4 16 -33 -27 13.86 -33 -12.5 10.14 -33 -12.5 21.5 -33 -27 21.5
4 16 -33.5 -12.5 10.14 -33.5 -27 13.86 -33.5 -27 21.5 -33.5 -12.5 21.5
4 16 -33.5 -12.5 10.14 -33 -12.5 10.14 -33 -19.5 -1 -33.5 -19.5 -1
4 16 -33 -27 13.86 -33.5 -27 13.86 -33.5 -32 5.86 -33 -32 5.86
4 16 -33.5 -32 5.86 -33.5 -27 13.86 -33.5 -12.5 10.14 -33.5 -19.5 -1
4 16 -33 -32 5.86 -33 -19.5 -1 -33 -12.5 10.14 -33 -27 13.86
2 24 -33 -27 13.86 -33 -32 5.86
2 24 -33.5 -27 13.86 -33.5 -32 5.86
2 24 -33.5 -19.5 -1 -33.5 -12.5 10.14
2 24 -33 -12.5 10.14 -33 -19.5 -1
2 24 -33.5 -19.5 -1 -33 -19.5 -1
1 16 -33.25 -32 2.43 .25 0 0 0 1 0 0 0 3.43 rect3.dat
3 16 -33.5 -32 -1 -33.5 -32 5.86 -33.5 -19.5 -1
3 16 -33 -19.5 -1 -33 -32 5.86 -33 -32 -1
1 16 -32.5 -32 -1 -.5 0 0 0 1 0 0 0 -.5 1-4ring1.dat
0 BFC INVERTNEXT
1 16 -32.5 -32 -1 -.5 0 0 0 12.5 0 0 0 -.5 1-4cylo.dat
1 16 -32.5 -32 -1 -1 0 0 0 12.5 0 0 0 -1 1-4cylo.dat
1 16 -32.5 -19.5 -1 -.5 0 0 0 -1 0 0 0 -.5 1-4ring1.dat
0 BFC INVERTNEXT
1 16 -31 -15.75 -1.75 0 0 1.5 0 -3.75 0 -.25 0 0 box2-7.dat
1 16 -22.5 -12 -1.75 0 0 -7 0 -1 0 -.25 0 0 rect.dat
4 16 -10.5 -14.5 -2 -15.5 -12 -2 -15.5 -12 -1.5 -10.5 -14.5 -1.5
2 24 -15.5 -12 -1.5 -10.5 -14.5 -1.5
2 24 -10.5 -14.5 -2 -15.5 -12 -2
1 16 -10.5 -22 -1.75 0 -1 0 0 0 -7.5 .25 0 0 rect.dat
4 16 -15.5 -32 -1.5 -15.5 -32 -2 -10.5 -29.5 -2 -10.5 -29.5 -1.5
2 24 -15.5 -32 -1.5 -10.5 -29.5 -1.5
2 24 -10.5 -29.5 -2 -15.5 -32 -2
1 16 -24 -32 -1.75 0 0 8.5 0 1 0 -.25 0 0 rect3.dat
1 16 -15 -22 -1.75 0 -4 0 -2 0 0 0 1 .25 box5-2p.dat
0 BFC INVERTNEXT
1 16 -15 -22 -1.75 0 -4 0 0 0 -2 -.25 0 0 box3u4a.dat
4 16 -10.5 -29.5 -2 -15 -24 -2 -15 -20 -2 -10.5 -14.5 -2
4 16 -15.5 -12 -2 -10.5 -14.5 -2 -15 -20 -2 -19 -20 -2
4 16 -29.5 -12 -2 -15.5 -12 -2 -19 -20 -2 -29.5 -19.5 -2
4 16 -15 -24 -2 -10.5 -29.5 -2 -15.5 -32 -2 -19 -24 -2
4 16 -19 -24 -2 -15.5 -32 -2 -32.5 -32 -2 -29.5 -19.5 -2
3 16 -29.5 -19.5 -2 -32.5 -32 -2 -32.5 -19.5 -2
3 16 -29.5 -19.5 -2 -19 -20 -2 -19 -24 -2
4 16 -15 -20 -1.5 -15 -24 -1.5 -10.5 -29.5 -1.5 -10.5 -14.5 -1.5
4 16 -15 -20 -1.5 -10.5 -14.5 -1.5 -15.5 -12 -1.5 -19 -20 -1.5
4 16 -19 -20 -1.5 -15.5 -12 -1.5 -29.5 -12 -1.5 -29.5 -19.5 -1.5
4 16 -15.5 -32 -1.5 -10.5 -29.5 -1.5 -15 -24 -1.5 -19 -24 -1.5
4 16 -32.5 -32 -1.5 -15.5 -32 -1.5 -19 -24 -1.5 -29.5 -19.5 -1.5
3 16 -32.5 -32 -1.5 -29.5 -19.5 -1.5 -32.5 -19.5 -1.5
3 16 -19 -20 -1.5 -29.5 -19.5 -1.5 -19 -24 -1.5
5 24 -15 -24 -2 -15 -20 -2 -10.5 -14.5 -2 -19 -24 -1
5 24 -15 -20 -1.5 -15 -24 -1.5 -19 -24 -.5 -10.5 -14.5 -1.5
