File Detail parts/s/4450s01.dat

Official File parts/s/4450s01.dat

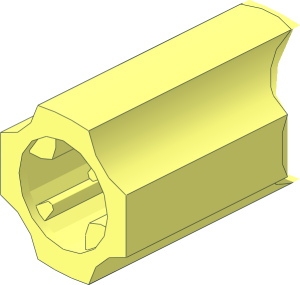

~Technic Angle Connector Half - for 11.25 Deg Sections

File Header:

0 ~Technic Angle Connector Half - for 11.25 Deg Sections
0 Name: s\4450s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-08-04 [GeraldLasser] adaptation from 32013s01.dat by [Philo]
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02
