Official File parts/30171b.dat
Part Attributes:
File Header:

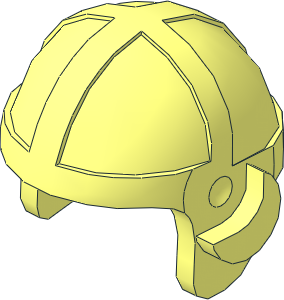

0 Minifig Cap Aviator
0 Name: 30171b.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2024-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP hinge point at x= 14.75 y= 8 z= -1
0 !HELP part 90510 has a different understud
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Headwear
0 !KEYWORDS 90510, Adventurers, Alpha Team, barnstormer, BrickLink 30171, hat
0 !KEYWORDS helmet, Mos Espa, Naboo fighter, pilot, pod race, Rebrickable 30171
0 !KEYWORDS skullcap, Star Wars
0 !HISTORY 2016-03-18 {LEGO Digital Designer} Original part shape
0 !HISTORY 2024-07-18 [MagFors] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30171bs01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30171bs01.dat
1 16 0 -4 0 0 0 1 0 -1 0 -1 0 0 stud16od.dat
3 16 -2.25 6.832 -17.498 0 7.145 -13.02 2.25 6.832 -17.498
4 16 -2.25 -5.3122 -11.4475 -2.25 -2.7276 -13.6957 2.25 -2.7276 -13.6957 2.25 -5.3122 -11.4475
4 16 -2.25 -7.0699 -9.0915 -2.25 -5.3122 -11.4475 2.25 -5.3122 -11.4475 2.25 -7.0699 -9.0915
4 16 2.25 -7.0699 -9.0915 2.25 -8.4674 -6.5194 -2.25 -8.4674 -6.5194 -2.25 -7.0699 -9.0915
4 16 -2.25 -8.33 6.99 -2.25 -9.708 1.538 2.25 -9.708 1.538 2.25 -8.33 6.99
4 16 2.25 -8.33 6.99 2.25 -4.985 12.04 -2.25 -4.985 12.04 -2.25 -8.33 6.99
4 16 -2.25 0.006 15.742 -2.25 -4.985 12.04 2.25 -4.985 12.04 2.25 0.006 15.742
4 16 -2.25 5.228 17.302 -2.25 0.006 15.742 2.25 0.006 15.742 2.25 5.228 17.302
4 16 2.25 3.085 -16.615 2.25 -0.2559 -15.2083 -2.25 -0.2559 -15.2083 -2.25 3.085 -16.615
4 16 2.25 -0.2559 -15.2083 2.25 -2.7276 -13.6957 -2.25 -2.7276 -13.6957 -2.25 -0.2559 -15.2083
4 16 2.25 5.228 17.302 2.25 7.93 17.433 -2.25 7.93 17.433 -2.25 5.228 17.302
4 16 -2.25 -9.708 1.538 -2.25 -9.65 -1.97 2.25 -9.65 -1.97 2.25 -9.708 1.538
4 16 -2.25 -9.65 -1.97 -2.25 -8.4674 -6.5194 2.25 -8.4674 -6.5194 2.25 -9.65 -1.97
4 16 -2.25 10.605 17.119 -2.25 7.93 17.433 2.25 7.93 17.433 2.25 10.605 17.119
3 16 -2.25 10.605 17.119 2.25 10.605 17.119 0 10.605 16.79
4 16 -2.25 5.48 -17.24 -2.25 6.832 -17.498 2.25 6.832 -17.498 2.25 5.48 -17.24
4 16 -2.25 3.085 -16.615 -2.25 5.48 -17.24 2.25 5.48 -17.24 2.25 3.085 -16.615
2 24 2.25 6.832 -17.498 -2.25 6.832 -17.498
2 24 2.25 10.605 17.119 -2.25 10.605 17.119
5 24 0 19.525 14.37 0 19.438 12.98 -3.695 18.732 13.92 2.466 19.049 12.74
5 24 2.25 5.228 17.302 -2.25 5.228 17.302 -2.25 0.006 15.742 2.25 7.93 17.433
5 24 2.25 -5.3122 -11.4475 -2.25 -5.3122 -11.4475 -2.25 -2.7276 -13.6957 2.25 -7.0699 -9.0915
5 24 -2.25 -2.7276 -13.6957 2.25 -2.7276 -13.6957 2.25 -5.3122 -11.4475 -2.25 -0.2559 -15.2083
5 24 2.25 -7.0699 -9.0915 -2.25 -7.0699 -9.0915 -2.25 -5.3122 -11.4475 2.25 -8.4674 -6.5194
5 24 2.25 -8.4674 -6.5194 -2.25 -8.4674 -6.5194 -2.25 -7.0699 -9.0915 2.25 -9.65 -1.97
5 24 2.25 -8.33 6.99 -2.25 -8.33 6.99 -2.25 -9.708 1.538 2.25 -4.985 12.04
5 24 -2.25 -9.708 1.538 2.25 -9.708 1.538 2.25 -8.33 6.99 -2.25 -9.65 -1.97
5 24 2.25 -4.985 12.04 -2.25 -4.985 12.04 -2.25 -8.33 6.99 2.25 0.006 15.742
5 24 2.25 0.006 15.742 -2.25 0.006 15.742 -2.25 -4.985 12.04 2.25 5.228 17.302
5 24 2.25 -0.2559 -15.2083 -2.25 -0.2559 -15.2083 -2.25 3.085 -16.615 2.25 -2.7276 -13.6957
5 24 -2.25 3.085 -16.615 2.25 3.085 -16.615 2.25 -0.2559 -15.2083 -2.25 5.48 -17.24
5 24 2.25 7.93 17.433 -2.25 7.93 17.433 -2.25 5.228 17.302 2.25 10.605 17.119
5 24 0 19.438 12.98 0 0 12.99 -2.466 19.049 12.74 2.466 19.049 12.74
5 24 -2.25 -9.65 -1.97 2.25 -9.65 -1.97 2.25 -9.708 1.538 -2.25 -8.4674 -6.5194
5 24 2.25 5.48 -17.24 -2.25 5.48 -17.24 -2.25 6.832 -17.498 2.25 3.085 -16.615
5 24 0 14.019 16.16 0 10.605 16.79 -3.605 10.605 16.488 3.605 10.605 16.488
5 24 0 3 13 0 19.438 12.98 -2.466 19.049 12.74 2.466 19.049 12.74
5 24 0 0 -8 0 -4 -6 -1.5 -4 -5.702 1.5 -4 -5.702
5 24 0 -4 6 0 0 8 1.5 0 7.702 -1.5 0 7.702
5 24 0 7.145 -13.02 0 3 -13 4.9751 3 -12.0107 -4.9751 3 -12.0107
5 24 0 19.525 14.37 0 14.019 16.16 3.66 13.696 15.711 -3.66 13.696 15.711
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2024-08-05 11:25:49
2024-08-07 22:50:47
2024-08-08 13:01:24
2024-08-10 02:47:16
2024-08-26 02:11:28
Release 2024-07
Creative Commons Attribution License information
This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
