Official File parts/79180.dat
Part Attributes:
File Header:

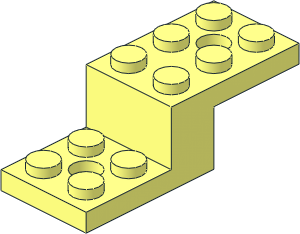

0 Bracket 5 x 2 x 1.333 with Ribs in Centre
0 Name: 79180.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
