Unofficial File parts/5489.dat
Part Attributes:
File Header:

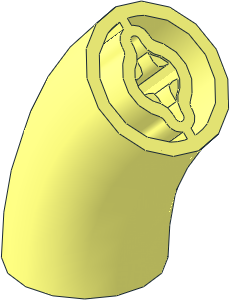

0 Brick Round 2 x 2 Curved 45 Degrees - 80 LDU Radius
0 Name: 5489.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Elbow
0 !HISTORY 2024-08-08 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-08-08 [GeraldLasser] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5489s01.dat
1 16 23.432 -56.568 0 .70711 .70711 0 .70711 -.70711 0 0 0 1 s\5489s01.dat
1 16 80 0 0 -80 0 0 0 0 -80 0 -80 0 48\tm08q2375.dat
1 16 0 -33.136 0 -2.8284 0 0 -1.1716 -1 0 0 0 2.8284 4-4edge.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
2024-08-15 11:31:05
2024-08-15 11:34:47
2024-08-15 11:35:51
Any naming suggestion that makes sense and distiguishes it from 65473 is welcome
2024-08-15 12:48:17
I don't like very much the way the behaves with hires prim substitution. I think that less prims would be better there...
2024-08-15 12:49:26
(around axlehole and in the bottom of cavities)
2024-08-15 16:23:31
Yes, me too. Need to rethink this, probably use hires inlined
I made 65473 with to tori, but i only noticed now that you won't be able to mould the thing the way i drew it...
I made 65473 with to tori, but i only noticed now that you won't be able to mould the thing the way i drew it...
2024-08-15 16:24:40
I also found no wa, of using an axlehole prim (without duplicating surfaces} to get snap info for LDCAD
2024-08-17 12:36:33
2024-08-17 13:20:57
this one fits system (R80), the old one fits technic (same as connector #4)
2024-08-17 14:39:16
It's better to get automatic snapping thanks to prims, but when it doesn't work, adding snap information is not a hell to do ;)
2024-08-20 20:23:08
It is described as being 2x2 but it is only 1.9x1.9
Is the diameter correct?
Is the diameter correct?
2024-08-20 21:44:50
Diameter is taken from the app.
I think the description is fine with 2x2 as there are no other diameters, just the 3x3 as next size
I think the description is fine with 2x2 as there are no other diameters, just the 3x3 as next size
2025-06-02 13:50:00
concerning automated snapping, axlehol0?
